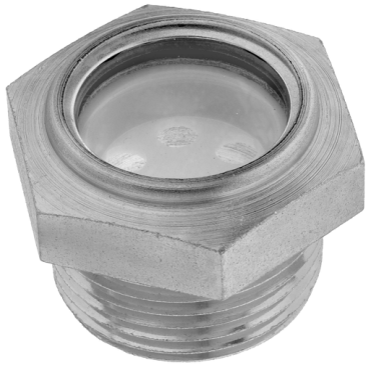

Gits Manufacturing Co. 04057 BW-20 Liquid Level Gauge

Product Description

The Gits Manufacturing Co. BW-20 Liquid Level Gauge, MPN 04057, is designed for monitoring liquid levels in a range of environments. This gauge features a clear window and is made from steel with a zinc-plated finish. It is suitable for installation in tapped fittings such as els and tees.

• Material: Steel, Zinc-Plated
• Pressure Rating: 3 psi
• Maximum Temperature: 250 °F

Product Highlights

This liquid level gauge provides reliable performance and accurate measurements in various applications.

Product Information

Standard Information

• Brand: Gits Manufacturing Co.
• Part Number: 101981757

Technical Specifications

• Material: Steel, Zinc-Plated
• Body Length: 1/2 inches
• Thread Type: NPT
• Pressure Rating: 3 psi
• Window Diameter: 2 inches
• Assembly Clearance: 3 1/8 inches
• Threads per Inch: 11 1/2
• Thread Lead: 11/16 inches
• Thread Size: 2
• Weight: 0.49 lbs
