Gibraltar XSL-403 X-style Side Lock 3/8-16 Thread

Product Description

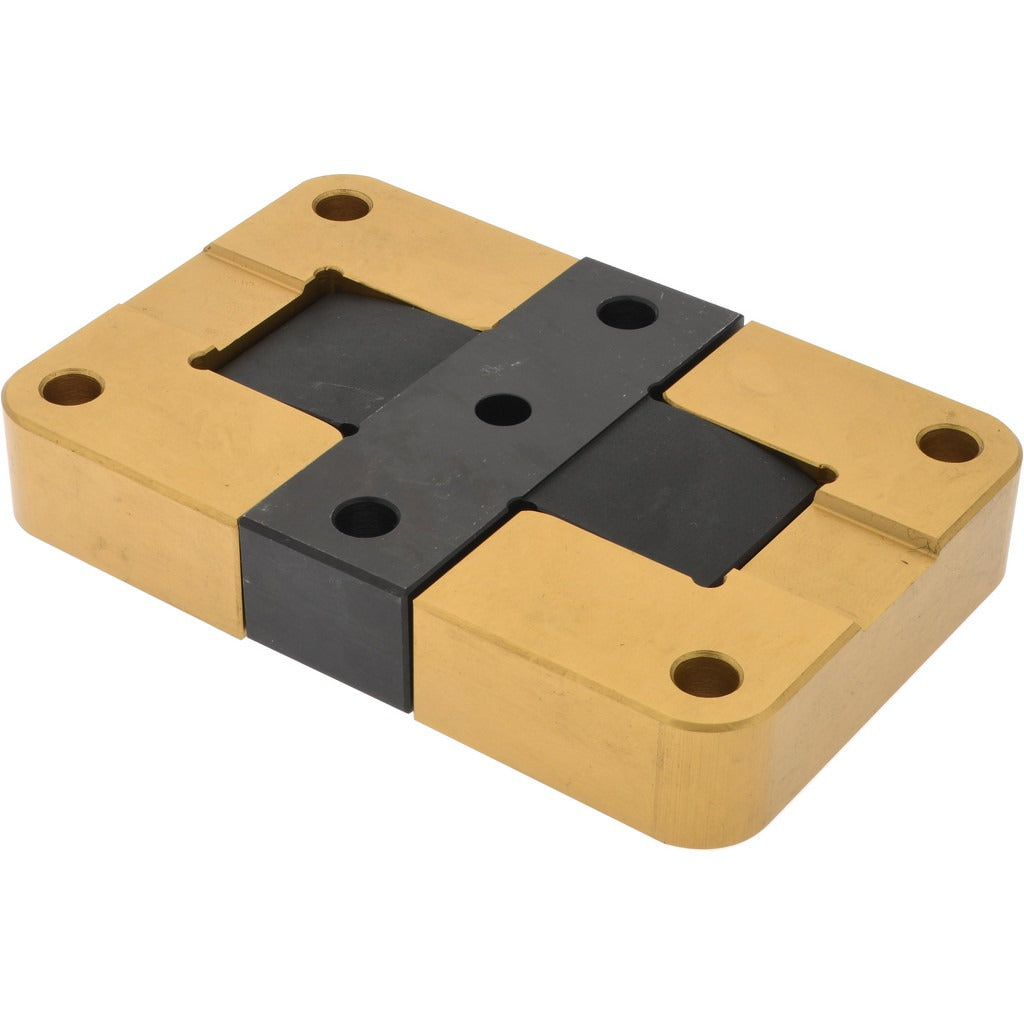

The GIBRALTAR XSL-403 is an X-style side lock designed for use in mold blank and punch die set assemblies. This hardware component provides secure lateral locking within tooling setups, maintaining precise alignment and position during die cast and injection molding operations. The XSL-403 features a 3/8-16 thread size and measures 6.13 inches in length, 4 inches in width, and 1 inch in height, making it a compact but sturdy addition to mold tooling configurations. At 0.5 pounds, this part is straightforward to handle and position during installation by toolmakers and die set technicians.

The GIBRALTAR XSL-403 is intended for use in die cast mold and injection mold applications. It fits into mold blank and punch die set assemblies where a side-locking mechanism is required to secure components in the lateral axis. This type of hardware is commonly found in production tooling environments, including machine shops and manufacturing facilities running repetitive stamping, casting, or injection molding operations. The 3/8-16 thread size is a widely used standard pitch, compatible with common fastening hardware in these tooling setups.

Key Features

• X-style side lock design provides secure lateral retention in die set assemblies
• 3/8-16 thread size matches standard tooling fastener specifications
• Compact profile at 6.13 inches length, 4 inches width, and 1 inch height
• Lightweight at 0.5 pounds for easy handling and installation
• Compatible with both die cast mold and injection mold configurations
• Sold individually, allowing targeted replacement without full hardware kit

Compatibility

Designed for use with die cast mold and injection mold assemblies as a replacement or supplemental side lock component in mold blank and punch die set hardware configurations.

Installation Notes

Installation of die set hardware such as side locks should be performed by qualified toolmakers or die set technicians familiar with mold assembly procedures. Ensure all press and mold equipment is fully powered down, de-energized, and locked out before accessing or replacing internal die set components. Use properly sized wrenches matched to the 3/8-16 thread to avoid damaging the fastener or mold body. Verify alignment of the side lock within the mold assembly before final tightening to maintain dimensional accuracy during production runs.
