Gibraltar TSW-5N-G Tapped Pivotal Leveling Mount 20000 Lb

Product Description

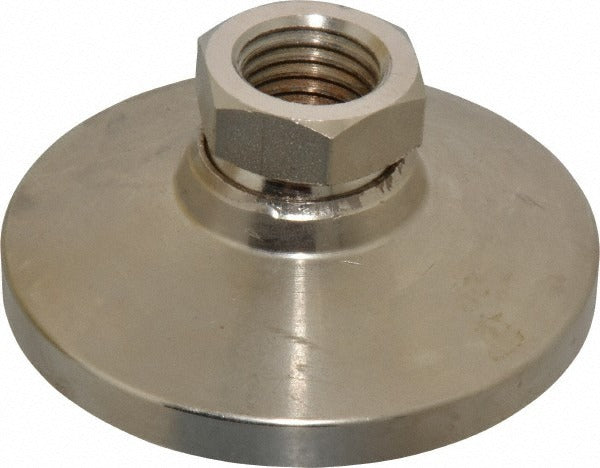

The GIBRALTAR TSW-5N-G is a tapped pivotal leveling mount designed for heavy-duty industrial and commercial equipment positioning applications. It features a 1-8 thread size, a 4-inch base diameter, and a rated load capacity of 20,000 pounds. Both the stud and the pad are constructed from steel, providing the structural integrity required in demanding environments. This leveling mount allows for angular adjustment to compensate for uneven floors or machinery bases. It is typically installed by millwrights, maintenance technicians, and industrial equipment mechanics during equipment setup, alignment, or relocation projects.

The TSW-5N-G is suited for use under heavy machinery, production equipment, workbenches, and similar industrial assets where precise leveling and stable load support are required. The pivotal design accommodates slight surface irregularities without transferring uneven stress to the equipment frame. Its 4-inch steel pad distributes load across the floor surface, reducing point loading. The 1-3/8 inch hex configuration allows for standard wrench adjustment during installation and leveling procedures.

Key Features

• 20,000 lb load capacity for heavy industrial equipment support
• Tapped pivotal design compensates for floor irregularities and minor surface angles
• Steel stud and steel pad construction for durability in industrial environments
• 4-inch base diameter provides broad load distribution
• 1-8 thread size for compatibility with standard heavy-duty mounting configurations
• 1-3/8 inch hex allows adjustment with standard wrenches

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for heavy industrial machinery requiring a tapped pivotal mount with a 1-8 thread size and 4-inch base diameter.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance technicians. De-energize and fully support the equipment before placing or adjusting leveling mounts. Use a properly rated wrench on the 1-3/8 inch hex to adjust height and ensure level positioning. Verify that the floor surface load rating is adequate for the full loaded equipment weight before finalizing mount placement.
