Gibraltar TSW-5L-G Tapped Leveling Mount 590 Lb 4 Inch

Product Description

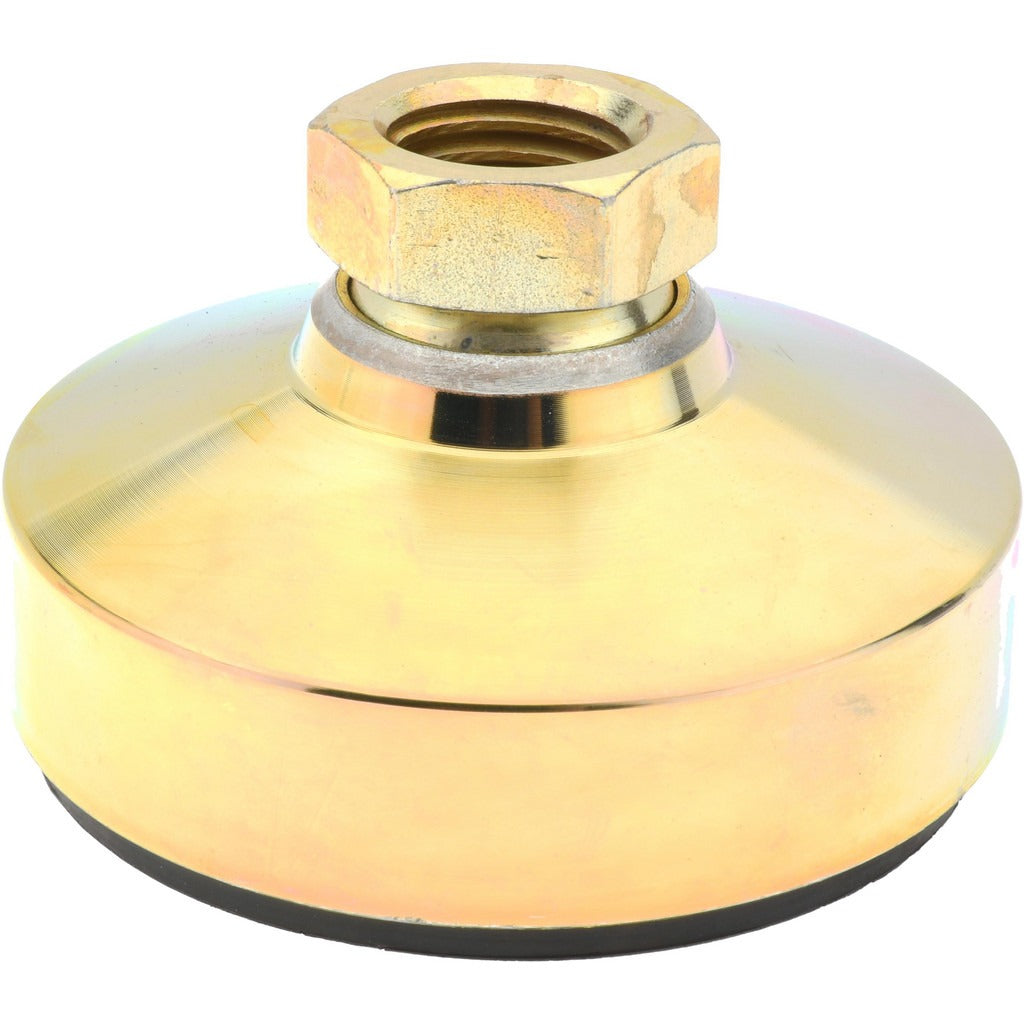

The GIBRALTAR TSW-5L-G is a tapped leveling mount designed to provide stable, adjustable support for industrial equipment, machinery bases, and fabricated assemblies. It features a 1-8 thread configuration with a zinc stud and zinc pad, offering a 590 lb load capacity in a compact form. The 4 inch base diameter distributes load across the mounting surface, reducing point stress and maintaining level positioning during service. With an overall length of 2.5 inches and a 1-3/8 inch hex size, the mount suits applications where precise height adjustment and solid footing are required. Millwrights, maintenance technicians, and fabricators are the typical installers for this type of hardware.

This leveling mount is suited for use on production floors, equipment pads, and framed assemblies where floor leveling compensation or vibration isolation is needed. The tapped design allows direct threading onto a stud or bolt protruding from the equipment base, making it a common fit in light-to-medium industrial installations. The zinc construction provides corrosion resistance suitable for indoor environments and controlled-humidity facilities. It ships as a single unit and is available for ordering in individual quantities.

Key Features

• 590 lb load capacity supports light-to-medium industrial equipment loads
• 1-8 thread size for direct tapped installation onto standard stud hardware
• 4 inch base diameter provides broad load distribution across the mounting surface
• Zinc stud and zinc pad construction for corrosion resistance in indoor environments
• 1-3/8 inch hex size allows installation and adjustment with standard wrenches
• Overall length of 2.5 inches suits installations with limited vertical clearance

Compatibility

Designed as an OEM-style tapped leveling mount for industrial equipment bases, fabricated frames, and machinery installations requiring a 1-8 thread interface and up to 590 lb load support per mount.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics as part of equipment commissioning or relocation. Power down and de-energize all connected equipment before beginning any leveling adjustment on live machinery. Use a properly sized 1-3/8 inch wrench or socket to thread and adjust the mount to the desired height. Verify load distribution across all mounting points before returning equipment to service.
