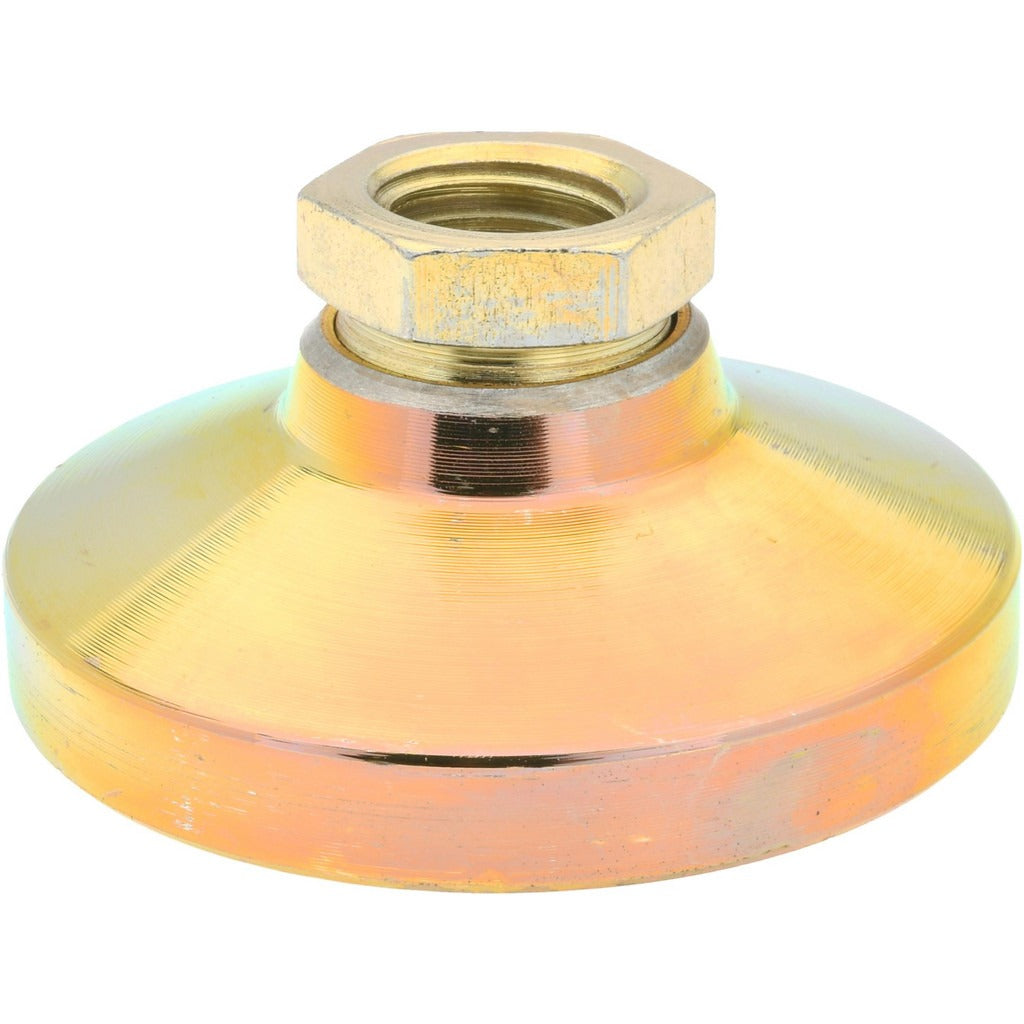

Gibraltar TSW-3Z-G Tapped Pivotal Leveling Mount 5/8-11

Product Description

The GIBRALTAR TSW-3Z-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. Built with a zinc stud and zinc pad, this mount provides corrosion-resistant support under static and semi-static loads up to 6,000 pounds. The pivotal design allows the pad to adjust to uneven floor surfaces, maintaining full contact and stable load distribution. With a 5/8-11 threaded stud and a 2.5-inch base diameter, it installs directly into pre-tapped mounting points on machinery bases, equipment frames, and fabricated stands. The overall installed length measures 1.25 inches. Maintenance technicians, millwrights, and equipment installers commonly spec this type of mount for machine leveling and vibration isolation tasks.

This leveling mount is suited for light to medium industrial equipment, production machinery, workstation bases, and commercial-grade equipment that requires precise floor-level adjustment. It is appropriate for both new installations and replacement of worn or damaged leveling feet on existing equipment. The single-piece packaging makes it easy to order exact quantities for multi-point leveling jobs.

Key Features

• 6,000 lb static load capacity for heavy equipment support
• Pivotal pad design self-adjusts to uneven or slightly irregular floor surfaces
• 5/8-11 tapped thread for direct installation into standard machine mounting holes
• Zinc stud and zinc pad construction for corrosion resistance
• 2.5-inch base diameter distributes load across a wide footprint
• Compact 1.25-inch overall length suits low-clearance mounting situations

Compatibility

Designed as a standard tapped pivotal leveling mount for industrial machinery, equipment frames, and fabricated bases that accept a 5/8-11 threaded leveling foot.

Installation Notes

Installation is performed by millwrights or maintenance technicians using a 7/8-inch hex wrench or open-end wrench on the stud. De-energize and lock out all electrical and pneumatic systems on the equipment before adjusting leveling mounts. Thread the stud fully into the tapped mounting hole before making level adjustments, and ensure load is evenly distributed across all mounting points before returning equipment to service.
