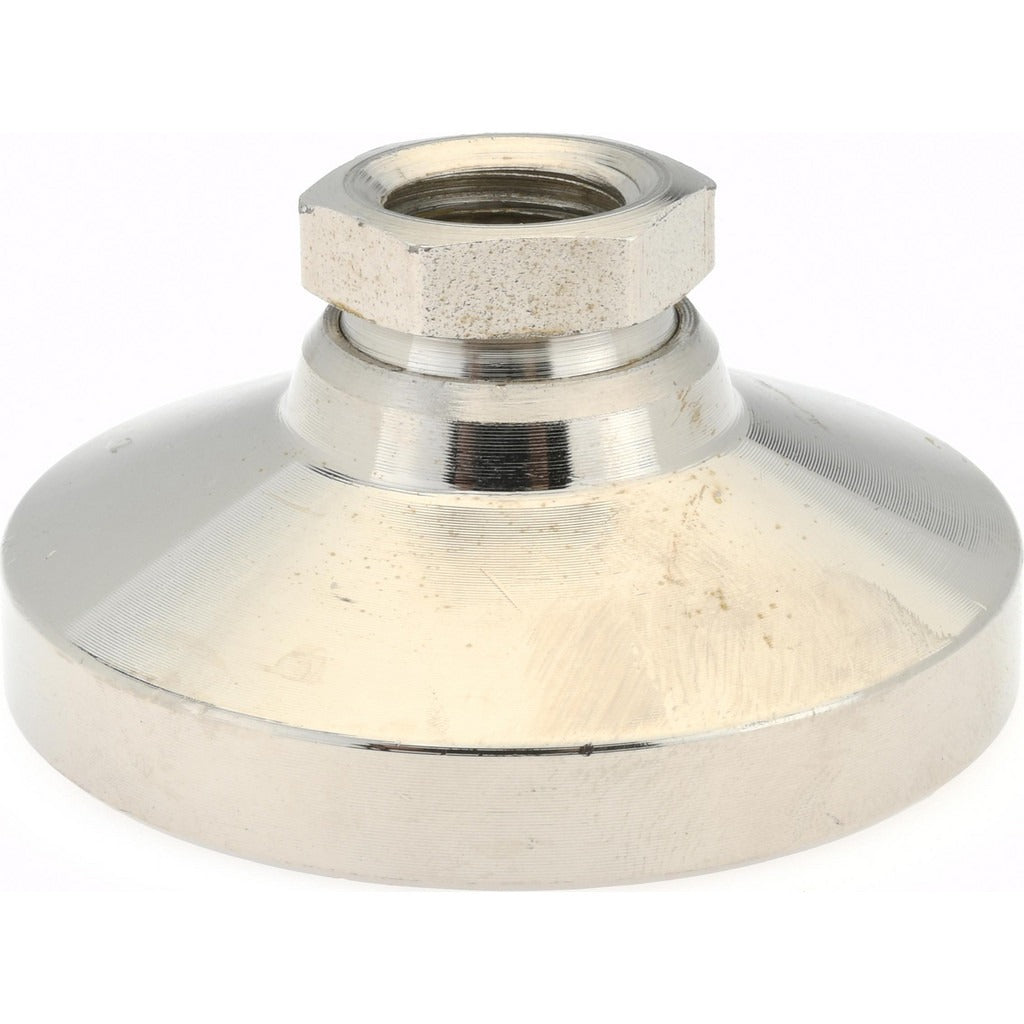

Gibraltar TSW-3N-G Tapped Pivotal Leveling Mount 5/8-11

Product Description

The GIBRALTAR TSW-3N-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features a 5/8-11 threaded stud and a steel pad base, providing a rigid, adjustable foot mount for machinery, fabrication tables, and heavy equipment frames. The pivotal design allows the base pad to self-adjust to uneven floor surfaces, maintaining stable contact under load. Rated at 6,000 lb load capacity, this mount handles demanding static load requirements. A 7/8-inch hex on the stud allows wrench adjustment for precise leveling. The mount is sold individually and installs without special tooling.

This leveling mount is suited for use in industrial facilities, machine shops, fabrication environments, and commercial equipment installations where floor leveling and vibration isolation are required. It is appropriate for applications where a tapped receiver accepts a threaded stud mount directly. The 2.5-inch base diameter distributes load across the floor contact point, making it a practical choice for medium-to-heavy-duty stationary equipment. Millwrights, maintenance technicians, and equipment installers are the typical trades working with this hardware.

Key Features

• 6,000 lb static load capacity for heavy-duty equipment support
• Pivotal pad design self-levels on uneven or slightly sloped floor surfaces
• 5/8-11 threaded steel stud for direct tapped-receiver installation
• 7/8-inch hex allows wrench-driven height adjustment after placement
• Steel stud and steel pad construction for durability in shop and industrial environments
• 2.5-inch base diameter provides stable floor contact and load distribution

Compatibility

Designed as a tapped pivotal leveling mount with a 5/8-11 thread for use in any application or equipment frame that accepts a standard 5/8-11 threaded leveling foot.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment setup or repositioning. Thread the stud into the tapped receiver on the equipment frame before placing the unit on the floor, then adjust height using a wrench on the 7/8-inch hex to achieve level. Ensure the equipment is de-energized and any hydraulic or pneumatic systems are depressurized before repositioning or adjusting leveling mounts. Do not exceed the rated 6,000 lb load capacity per mount.
