Gibraltar TSW-3M-G Tapped Leveling Mount 5/8-11 Thread

Product Description

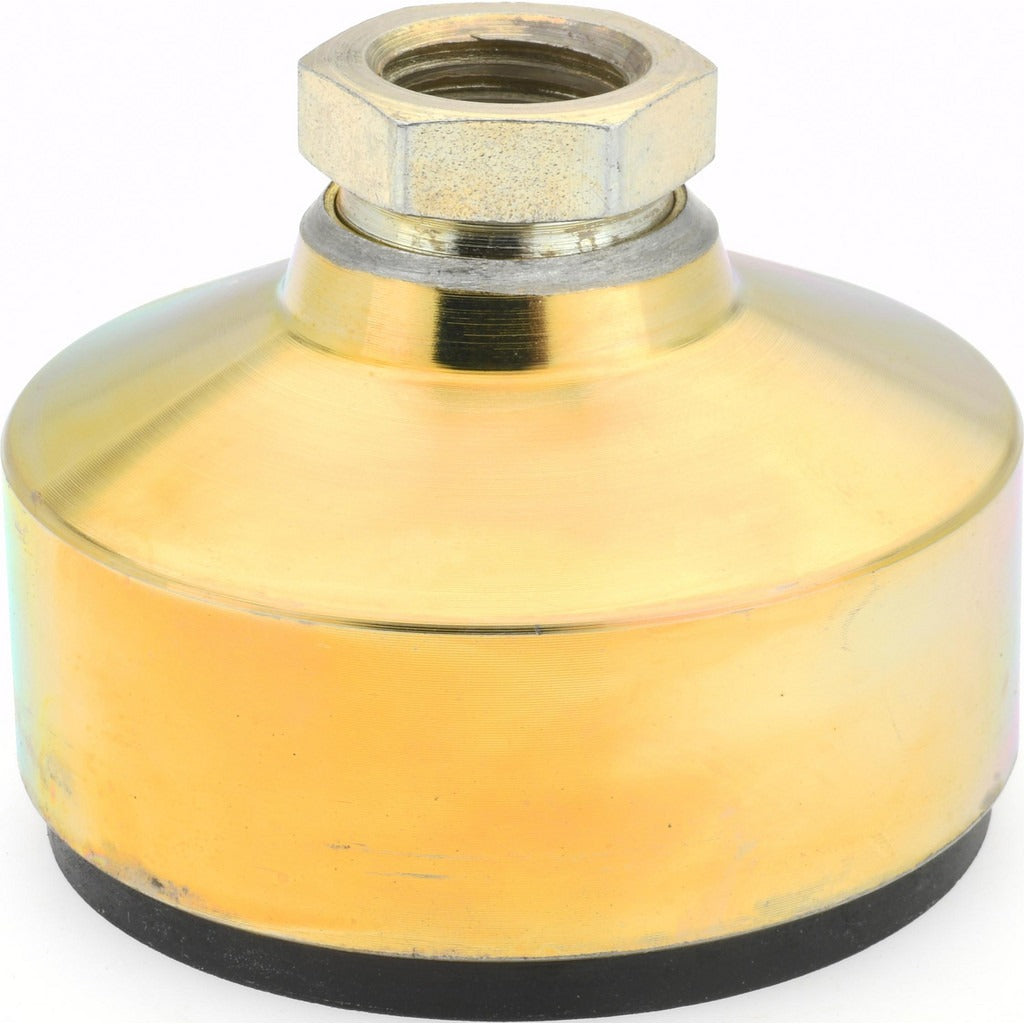

The GIBRALTAR TSW-3M-G is a tapped leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and fabricated assemblies. Built with a zinc stud and zinc pad, this mount delivers corrosion resistance suitable for both shop floor and light industrial environments. It accepts a 5/8-11 thread and carries a static load capacity of 440 lb, making it appropriate for heavy benchtop equipment, conveyors, and structural leveling applications. The 2.5-inch base diameter distributes load across a wide footprint, reducing point stress on flooring or mounting surfaces. Millwrights, maintenance technicians, and fabricators typically install this type of hardware during equipment setup and alignment.

The TSW-3M-G is suited for use in manufacturing facilities, assembly operations, and mechanical equipment rooms where precise leveling is required. Its tapped mount design allows a threaded bolt or rod to be inserted and secured from below or above, giving the installer flexibility in positioning. The compact overall length of 1.875 inches keeps the equipment profile low to the ground. This mount is sold individually and is appropriate for projects requiring spot replacement or custom multi-point leveling configurations.

Key Features

• 440 lb static load capacity supports heavy equipment and fabricated frames
• 5/8-11 thread size for compatibility with standard threaded fastener stock
• 2.5 inch base diameter provides stable, wide-footprint load distribution
• Zinc stud and zinc pad construction for corrosion resistance
• 7/8 inch hex size allows installation and adjustment with a standard wrench
• Compact 1.875 inch overall length for low-profile mounting applications

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for machinery, equipment frames, and fabricated assemblies requiring a 5/8-11 tapped mount configuration.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment setup or realignment. De-energize and lock out any connected electrical or pneumatic systems before adjusting leveling mounts under live equipment. Use a wrench on the 7/8 inch hex to set mount height, then secure the jam nut or locking mechanism to prevent vibration-induced movement. Verify floor surface condition and load distribution across all mount points before returning equipment to service.
