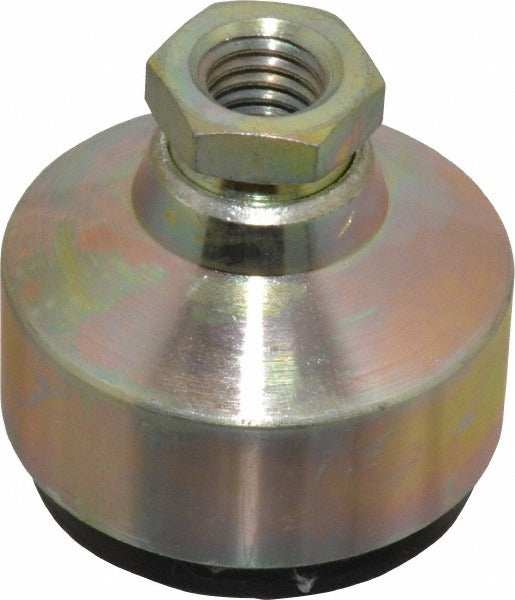

Gibraltar TSW-2L-G Tapped Leveling Mount 1/2-13 Thread

Product Description

The GIBRALTAR TSW-2L-G is a tapped leveling mount designed for industrial and mechanical equipment support applications. It uses a 1/2-13 threaded stud to provide precise height and level adjustment on machinery, frames, workbenches, and similar equipment bases. Both the stud and pad are constructed of zinc, offering corrosion resistance in light-duty environments. With a rated load capacity of 120 pounds, a base diameter of 1-7/8 inches, and an overall length of 1-3/4 inches, this mount is sized for compact installations where stable footing and minor positional adjustment are required. Installation is straightforward and typically performed by millwrights, maintenance technicians, or equipment assemblers.

This tapped leveling mount is suited for light industrial and commercial equipment support where floor leveling or vibration dampening is needed. The tapped design accepts a threaded rod or machine bolt, making it compatible with standard framed equipment bases and structural tube assemblies. It is commonly used on workstations, machine bases, enclosures, and fabricated frames that require a fixed yet adjustable foot. The 3/4-inch hex drive allows for easy adjustment with a standard wrench during setup or realignment.

Key Features

• 120 lb static load capacity supports light industrial and commercial equipment
• 1/2-13 tapped thread accepts standard threaded rod or fastener stock
• Zinc stud and zinc pad construction for corrosion resistance
• 1-7/8 inch base diameter provides a stable contact footprint
• 1-3/4 inch overall length fits compact equipment base designs
• 3/4 inch hex drive for wrench-accessible leveling adjustment

Compatibility

Designed as a direct-fit tapped leveling mount for equipment frames, machine bases, and fabricated assemblies using 1/2-13 threaded fastener interfaces.

Installation Notes

Installation is typically performed by maintenance technicians or equipment assemblers using a standard 3/4-inch wrench or adjustable wrench. Ensure the mating threaded rod or bolt is clean and free of debris before engagement. Level the equipment after all feet are installed and snug to avoid uneven load distribution across the mount array. Consult applicable machinery installation codes or manufacturer guidance for torque and locking requirements specific to the host equipment.
