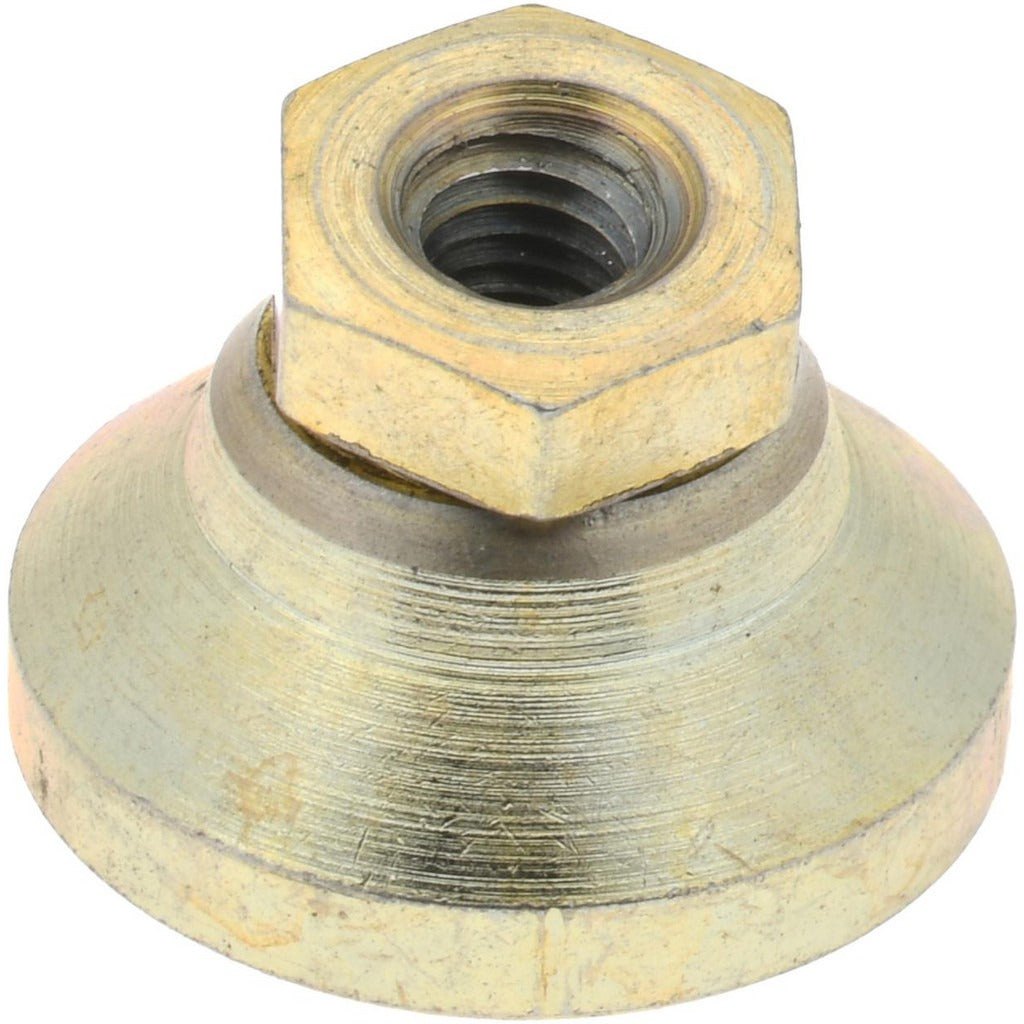

Gibraltar TSW-00Z-G Tapped Pivotal Leveling Mount

Product Description

The GIBRALTAR TSW-00Z-G is a tapped pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and industrial assemblies. Featuring a 10-32 threaded stud and a zinc pad with zinc stud construction, this mount accommodates a rated load capacity of 700 pounds. The pivoting pad design allows the base to self-adjust across slightly uneven surfaces, maintaining consistent contact and reducing stress on mounting points. Millwrights, maintenance technicians, and industrial installers use leveling mounts like this one to level equipment without shimming and to absorb minor floor irregularities during installation.

This leveling mount is suited for light-duty industrial and commercial equipment leveling applications where a compact footprint is needed. The 3/4-inch base diameter and 17/32-inch overall length make it appropriate for installations with limited clearance. It is commonly used in panel enclosures, machinery bases, instrumentation racks, and fabricated frames where a tapped female thread in the equipment accepts the 10-32 stud directly.

Key Features

• Tapped pivotal design allows pad to self-level on uneven mounting surfaces
• 10-32 threaded stud for direct installation into tapped equipment feet
• 700-pound load capacity for reliable support of light industrial equipment
• Zinc stud and zinc pad construction for corrosion resistance in typical indoor environments
• 3/4-inch base diameter in a compact 17/32-inch overall length for tight-clearance installs
• 3/8-inch hex size for standard wrench installation and adjustment

Compatibility

Designed as a direct-install leveling mount for equipment or enclosures with a tapped 10-32 threaded mounting foot. Verify thread depth and load distribution requirements before installation.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using a standard 3/8-inch wrench or nut driver. Thread the stud fully into the tapped equipment foot before adjusting height and verifying level with a precision level instrument. Ensure the total load is distributed evenly across all mount points and does not exceed the per-mount rated capacity. De-energize and lock out any associated equipment before performing leveling adjustments.
