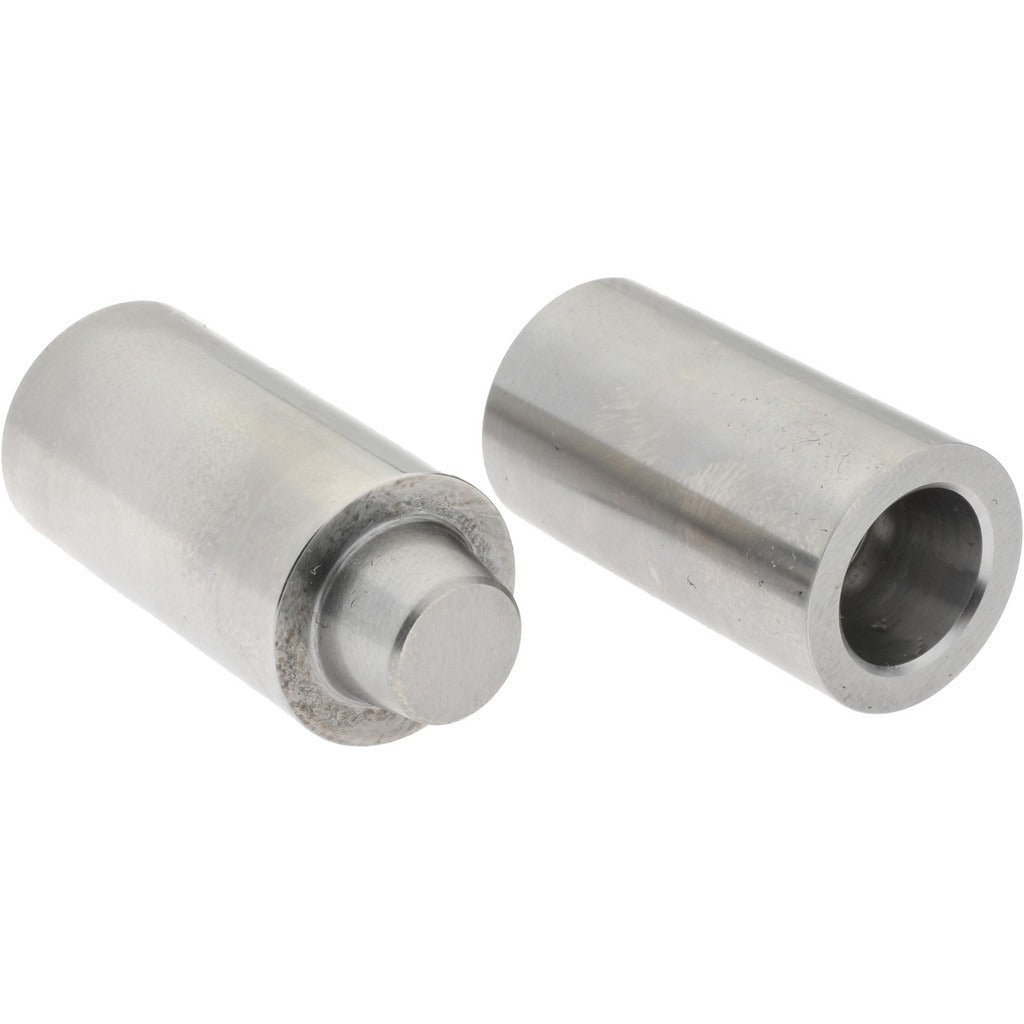

Gibraltar TPL-327 Taper Lock Interlock Mold Hardware

Product Description

The GIBRALTAR TPL-327 is a taper lock and interlock hardware component used in mold blank and punch die set assemblies. It provides secure mechanical interlocking between mold components, maintaining alignment and clamping force during die cast and injection mold operations. The TPL-327 features a 1/4-20 thread size and compact dimensions of 1.38 inches height, 0.75 inches width, and 1.38 inches length. Weighing 0.5 pounds, it is suited for precision tooling environments where consistent part seating and repeatable locking are required. Tool and die makers, mold technicians, and toolroom machinists are the primary installers of this hardware.

The TPL-327 is designed for use in die cast mold and injection mold assemblies. It functions as a replacement or spare hardware component within mold base tooling systems. Typical applications include maintaining interlock integrity in production molds where taper lock mechanisms are specified by the mold design. The compact footprint makes it appropriate for installations where space within the mold base is constrained. This hardware suits both original equipment builds and retrofit or repair scenarios in toolroom and production environments.

Key Features

• Taper lock and interlock design for secure mold component alignment
• 1/4-20 thread size for standard tooling fastener compatibility
• Compact 1.38 x 0.75 x 1.38 inch profile fits tight mold base clearances
• Compatible with die cast mold and injection mold assemblies
• Sold as a single unit for targeted replacement or spare stocking

Compatibility

Designed for use in die cast mold and injection mold assemblies requiring taper lock and interlock hardware with a 1/4-20 thread specification.

Installation Notes

Installation is performed by qualified tool and die makers or mold technicians in a toolroom or production setting. The mold assembly should be fully depressurized, cooled, and de-energized before disassembling any mold components or replacing hardware. Standard toolroom hand tools appropriate for 1/4-20 fasteners apply. Follow the mold design drawings and OEM specifications for proper seating depth and torque guidance specific to the mold base design.
