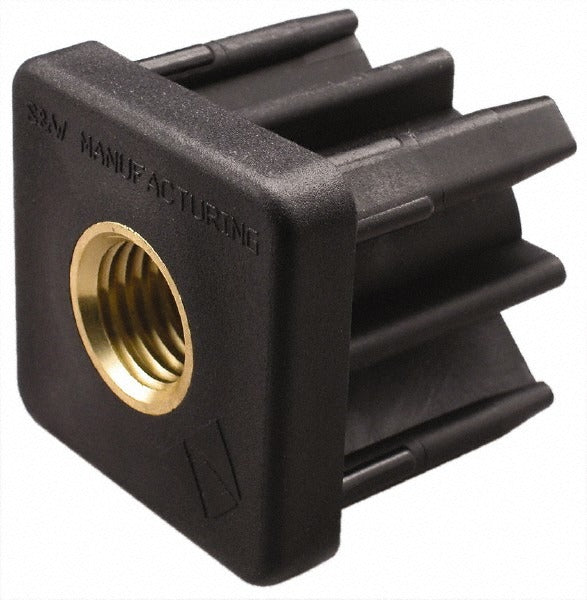

Gibraltar TE1-3D-G Square Tube End 1.5 in 3/4-10 1000 Lb

Product Description

The GIBRALTAR TE1-3D-G is a square tube end fitting designed to terminate or cap structural square tubing in fabricated frames, supports, and material-handling assemblies. It accepts 1.5-inch square tubing with a 0.12-inch wall thickness and features a 3/4-10 threaded insert that allows a leveling foot, glide, or bolt to be threaded directly into the end of the tube. Static load capacity is rated at 1,000 pounds, making it suitable for light structural and equipment-support applications. Installers in fabrication, maintenance, and facilities trades use this fitting to finish tube ends cleanly while adding a functional threaded interface.

This tube end is used in square-tube frame construction across light industrial, commercial, and institutional settings. Typical applications include workbench legs, equipment stands, shelving uprights, and machinery bases where a finished tube end with a threaded connection point is required. The fitting slides into the open end of the tube and provides a secure, load-bearing threaded socket without welding or additional hardware.

Key Features

• Fits 1.5-inch square tubing with 0.12-inch wall thickness
• 3/4-10 threaded insert for leveling feet, glides, or fasteners
• 1,000-pound static load capacity
• Square end profile provides a clean, finished appearance on tube terminations
• Single-piece construction — no welding required for installation

Compatibility

Designed to fit 1.5-inch square tubing with a compatible wall thickness of 0.12 inches, as specified by the manufacturer. Verify tube outer dimension and wall thickness before installation.

Installation Notes

Installation is performed by fabricators, maintenance technicians, or millwrights during frame assembly or field repair. The fitting is pressed or driven into the open end of the square tube and should be secured per the assembly design requirements. Confirm the tube end is clean and free of burrs or deformation before insertion to ensure full seating and proper load transfer. Do not exceed the rated load capacity of 1,000 pounds.
