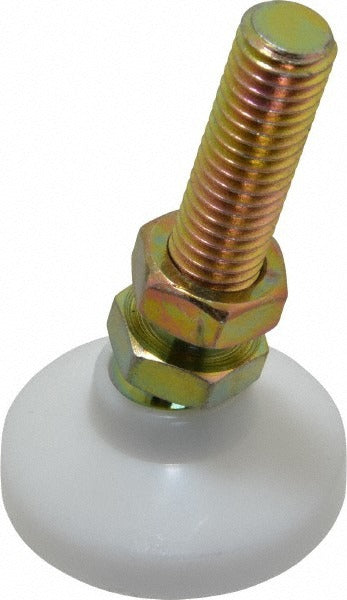

Gibraltar SWD-2-G Stud Mount Leveling Pad 700 Lb

Product Description

The GIBRALTAR SWD-2-G is a studded pivotal stud mount leveling pad designed to provide stable, adjustable support for machinery, equipment bases, and industrial frames. The pivotal design allows the pad to self-adjust to uneven floor surfaces, maintaining solid contact and load distribution without shimming. It accepts a 1/2-13 bolt thread and carries a maximum load capacity of 700 pounds. At 3-1/8 inches in length and with a 1-7/8 inch base diameter, it fits compact mounting footprints where space is limited. Weighing 0.23 pounds, it is lightweight enough for quick installation while delivering robust load support. Licensed millwrights, maintenance technicians, and equipment installers are the primary users of this component.

This leveling pad is suited for industrial and commercial applications where machinery, workbenches, enclosures, or equipment stands require leveling on concrete or finished floors. The stud mount configuration threads directly into a tapped hole or mates with a hex nut for secure attachment. The pivotal base compensates for slight floor irregularities, making it a practical choice for production floors, mechanical rooms, and equipment pads where precise leveling is required and floor surfaces may not be perfectly flat.

Key Features

• 700 pound maximum load capacity for heavy equipment support
• Pivotal base self-adjusts to uneven or slightly irregular floor surfaces
• 1/2-13 bolt thread for compatibility with standard threaded mounting holes
• 1-7/8 inch base diameter provides a stable floor contact footprint
• 3-1/8 inch length allows for meaningful height adjustment range
• Lightweight at 0.23 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation leveling pad for machinery and equipment bases that use a 1/2-13 stud mount thread configuration.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard hand tools. Thread the stud into a tapped mounting hole or secure with a jam nut to the equipment base before placing the unit under load. De-energize and lock out all power sources before positioning equipment during leveling. Do not exceed the 700 pound rated load capacity per pad.
