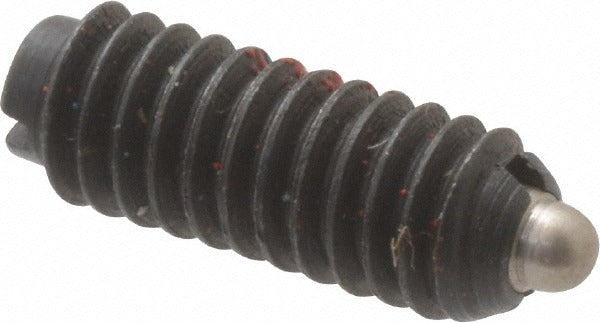

Gibraltar SW10-2ASLP-G Threaded Spring Plunger 8-32

Product Description

The GIBRALTAR SW10-2ASLP-G is a stubby threaded spring plunger designed for indexing, positioning, and light-duty retention applications in mechanical assemblies. The steel body threads into a tapped hole using an 8-32 thread and provides a spring-loaded nose that engages a mating detent or surface. Thread length is 0.437 inches, maximum plunger diameter is 0.07 inches, and plunger projection is 0.052 inches. Initial end force is 0.5 pounds and final end force is 1.5 pounds. A locking element is included to secure the plunger in place once installed. This part is installed by machinists, maintenance technicians, and assembly technicians working on precision mechanical components.

The SW10-2ASLP-G suits applications where a compact, low-profile spring plunger is needed in tight spaces. The stubby body length keeps the installed profile minimal, making it appropriate for thin panels, jigs, fixtures, and light machinery where a standard-length plunger would not fit. The steel nose and body construction handle moderate wear in industrial environments. This plunger is sold in a minimum order quantity of 5 units.

Key Features

• 8-32 threaded body for installation into standard tapped holes
• Stubby plunger length type at 0.437 inches for compact fitment
• 0.052 inches plunger projection with 0.5 pounds initial and 1.5 pounds final end force
• Steel nose and steel body for durability in industrial use
• Integrated locking element secures plunger position after installation
• Maximum plunger diameter of 0.07 inches for precision detent applications

Compatibility

Designed as a direct-fit threaded spring plunger for assemblies requiring an 8-32 thread with stubby body geometry and a locking element.

Installation Notes

Installation requires a properly tapped 8-32 hole in the mating component. Use an appropriate hex key or driver to thread the plunger body in and engage the locking element once the desired projection depth is confirmed. Ensure the mating surface or detent geometry is clean and free of debris before assembly. Depressurize or de-energize any equipment before servicing assemblies that contain spring plungers.
