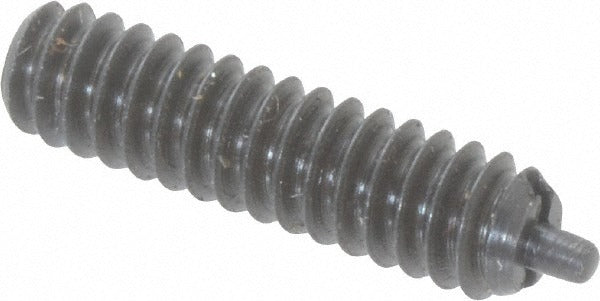

Gibraltar SW10-1-G Threaded Spring Plunger 6-32 Steel

Product Description

The GIBRALTAR SW10-1-G is a threaded spring plunger designed for light-duty positioning, indexing, and detent applications in mechanical assemblies. It features a 6-32 thread size with a 17/32 inch thread length and a maximum plunger diameter of 0.045 inches. The plunger delivers 1.5 pounds of initial end force and 4.5 pounds of final end force, making it suitable for applications requiring a controlled, repeatable snap-action hold. Both the body and nose are constructed from steel for durability in standard industrial and mechanical environments. Machinists, maintenance technicians, and mechanical assemblers typically install this component.

This spring plunger is used in jigs, fixtures, tooling, and light mechanical assemblies where a positive stop or detent action is needed. The standard-length plunger projection of 1/16 inch suits tight-clearance designs. It threads directly into a tapped hole, making installation straightforward without the need for specialized tooling beyond standard hand tools or a screwdriver. It is well suited for use in manufacturing equipment, machine tool accessories, and similar precision mechanical applications.

Key Features

• 6-32 thread size with 17/32 inch thread length for direct tapped-hole installation
• 1/16 inch (0.0625 inch) plunger projection — standard length for tight-clearance assemblies
• 1.5 pound initial end force and 4.5 pound final end force for controlled detent action
• Steel body and steel nose construction for durability in standard mechanical environments
• No locking element — threads directly into place without adhesive or locking feature
• Compact design at 0.045 inch maximum plunger diameter

Compatibility

Designed as a standard threaded spring plunger replacement or new-installation component for tapped 6-32 holes in jigs, fixtures, tooling plates, and light mechanical assemblies requiring detent or indexing action.

Installation Notes

Installation requires a tapped 6-32 hole in the mating component. Use a standard screwdriver or appropriate driver bit to thread the plunger into place. De-energize or lock out any powered equipment before servicing assemblies containing this component. Do not overtighten, as the threaded body is steel and can strip softer aluminum or plastic tapped holes if excessive torque is applied.
