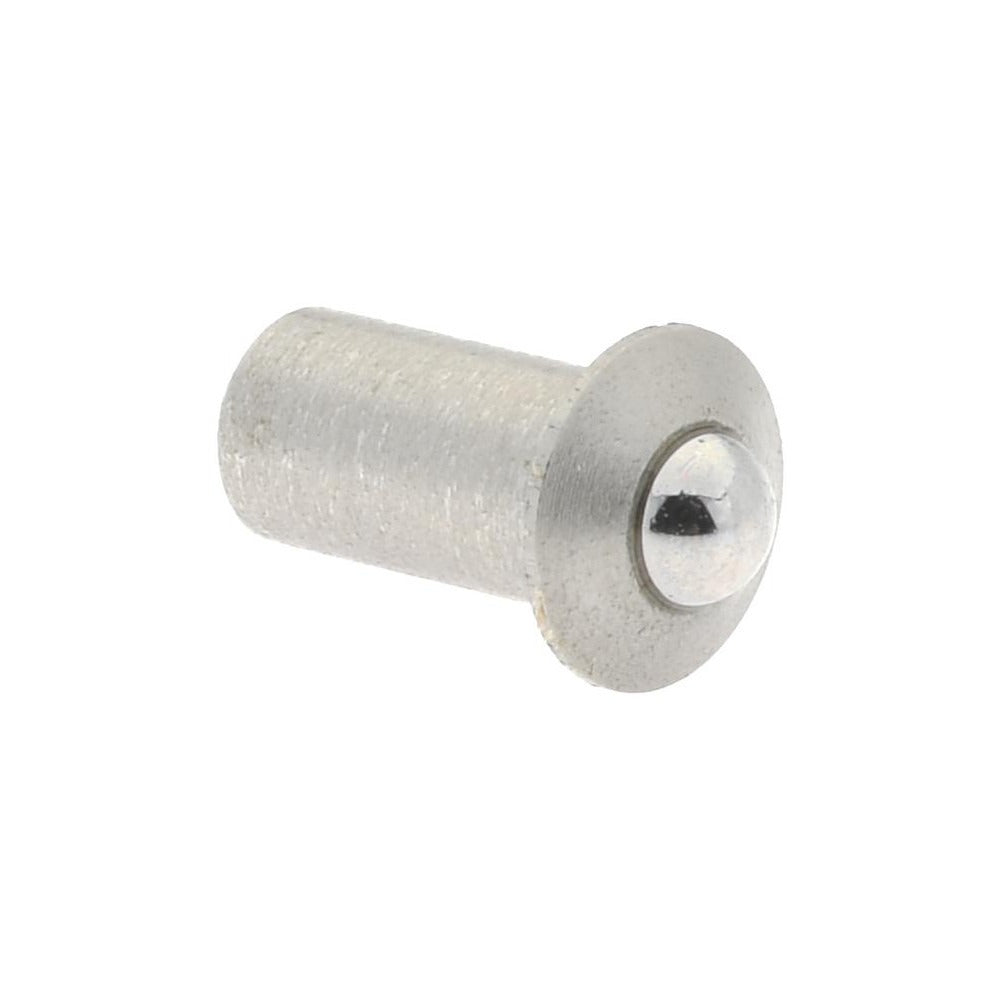

Gibraltar SSWPF10-2B-G Ss Press Fit Ball Plunger 0.125 in

Product Description

The GIBRALTAR SSWPF10-2B-G is a stainless steel press fit ball plunger designed for light-duty positioning, indexing, and detent applications in mechanical assemblies. The body measures 0.125 inches in diameter and 0.252 inches in length, with a flanged design that seats flush into a drilled or reamed hole using press fit installation. The ball measures 0.25 inches in diameter with a maximum reach of 0.035 inches. Spring force is rated at 0.75 pounds initial and 2.5 pounds final, making it suited for low-force engagement applications. The stainless steel construction with passivate finish provides corrosion resistance in demanding environments. Machinists, tool and die technicians, and maintenance professionals install this type of component in jigs, fixtures, and precision assemblies.

This ball plunger is used in industrial and mechanical settings where repeatable positioning or light detent action is required. Typical applications include fixture plates, slide mechanisms, tooling assemblies, and panel components where a compact press fit retention method is preferred over threaded installation. The flanged body prevents the plunger from being pushed through the mounting surface and provides a positive seating face. At 0.01 pounds, this is a lightweight hardware component suited for precision assemblies with tight space constraints.

Key Features

• Press fit installation into a drilled or reamed hole — no threads required
• Flanged body at 0.187 inches diameter and 0.032 inches thick to prevent blowthrough and provide positive seating
• Stainless steel body and ball construction with passivate finish for corrosion resistance
• 0.25 inch ball diameter with 0.035 inch maximum reach for controlled detent engagement
• 0.75 lb initial force and 2.5 lb final force for light-duty indexing applications
• Compact form factor: 0.125 inch body diameter, 0.252 inch overall length

Compatibility

Designed as a standard press fit ball plunger for use in mechanical fixtures, tooling plates, jigs, and light-duty industrial assemblies requiring a compact detent or positioning component.

Installation Notes

Installation requires a precisely drilled or reamed hole sized to accept the 0.125 inch diameter body with appropriate press fit interference. Use a press or arbor to seat the plunger evenly — do not strike the ball or flange directly. Verify hole depth matches the body length to allow proper flange seating without binding the ball. No special certifications are required for installation, but the receiving component should be secured in a vise or fixture to prevent movement during pressing.
