Gibraltar SSWN10-3S-G Threaded Spring Plunger 10-32

Product Description

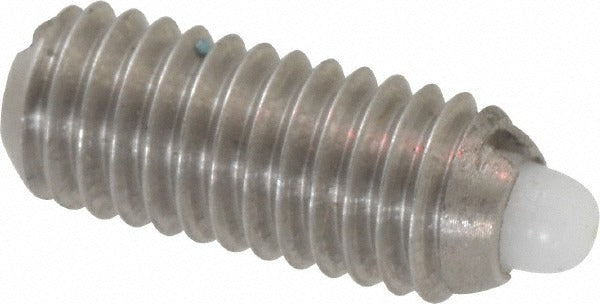

The GIBRALTAR SSWN10-3S-G is a stubby threaded spring plunger designed for indexing, positioning, and light-duty detent applications in mechanical assemblies. It features a 10-32 threaded body machined from stainless steel, with a nylon nose that engages target surfaces without marring them. The plunger projects 0.065 inches at rest and delivers an initial end force of 1.7 pounds, building to a final end force of 6.2 pounds when fully compressed. Overall body length is 0.468 inches with a thread length of 0.468 inches. This type of hardware is installed by machinists, mechanical assemblers, and maintenance technicians working on fixtures, jigs, or precision equipment.

This spring plunger suits applications where a compact, low-profile fastener is needed in tight assemblies. The stubby form factor makes it appropriate for thin panels, shallow bores, and confined spaces where a standard-length plunger would not fit. The stainless steel body provides corrosion resistance for washdown environments or outdoor-rated enclosures. The nylon nose is suited for soft-surface contact points where metal-on-metal engagement would cause wear or damage over time.

Key Features

• 10-32 thread size with 0.468 inch thread length for direct installation into tapped holes
• Stubby plunger profile at 0.065 inch projection suits shallow-clearance assemblies
• Stainless steel body resists corrosion in washdown and outdoor environments
• Nylon nose prevents surface marring on contact targets
• 1.7 pound initial end force and 6.2 pound final end force for light indexing and detent duty
• No locking element, allowing straightforward installation and removal with standard tooling

Compatibility

Designed as a direct-install threaded spring plunger for any application with a tapped 10-32 hole requiring a stubby-length plunger with nylon nose contact.

Installation Notes

Installation is performed by threading the plunger body directly into a pre-tapped 10-32 hole using a hex key or appropriate driver. De-energize or lock out any powered equipment before installing plungers in moving assemblies. Avoid overtightening, as the stainless steel body can gall in threaded aluminum or stainless bores without proper thread lubricant. Confirm hole depth is sufficient to accept the full 0.468 inch thread engagement without bottoming out the nose.
