Gibraltar SSWN10-3BLP-G Threaded Ball Plunger 10-32

Product Description

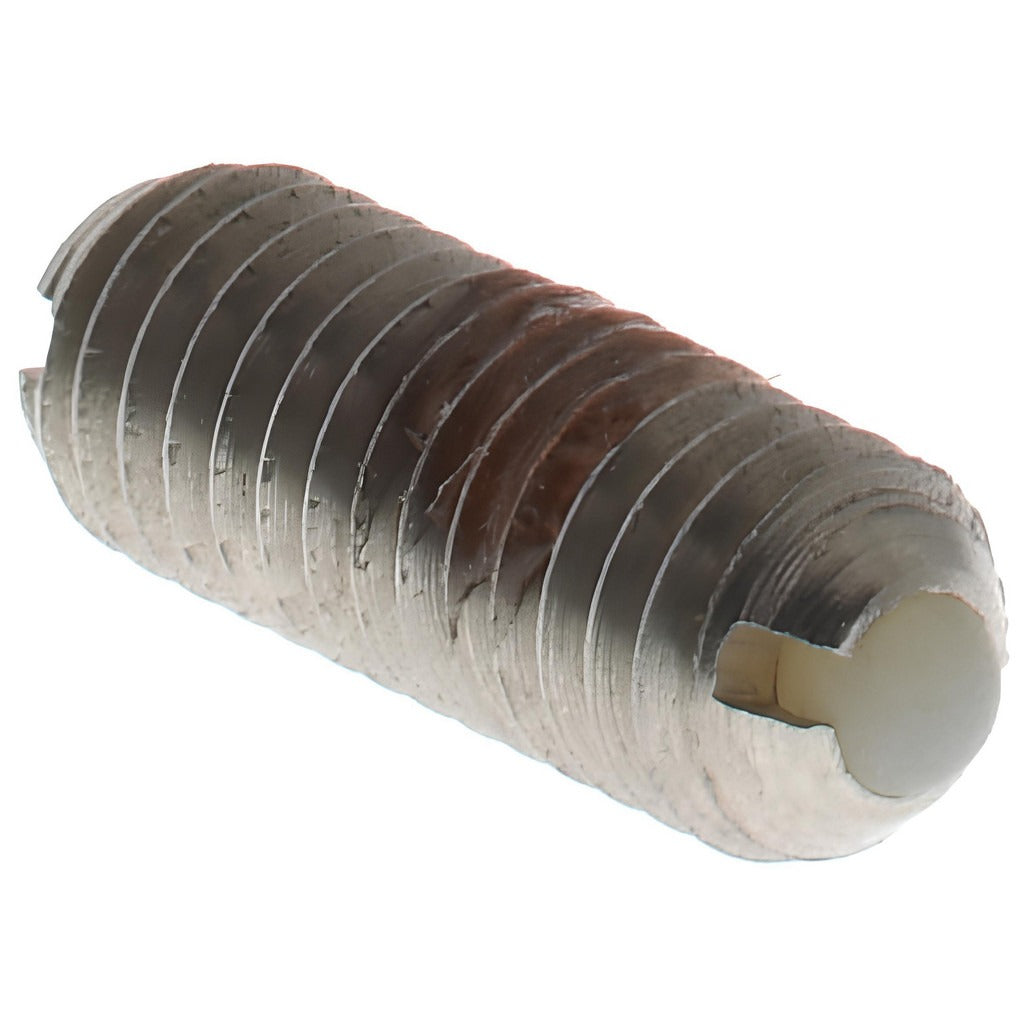

The GIBRALTAR SSWN10-3BLP-G is a threaded ball plunger designed for use in indexing, positioning, and light detent applications across industrial and mechanical assemblies. The body is machined from stainless steel and accepts a 10-32 threaded installation. The nylon ball measures 0.094 inches in diameter with a maximum ball reach of 0.025 inches. Initial end force is 0.5 pounds and final end force is 1.5 pounds. A locking element is integrated into the design to secure the plunger in position after installation. The overall body length is 0.513 inches. This part is installed by machinists, maintenance technicians, and mechanical assemblers working with fixtures, jigs, and precision equipment.

The SSWN10-3BLP-G suits applications where a low-profile, threaded detent mechanism is required in a compact form factor. The stainless steel body offers corrosion resistance for use in washdown environments or where fluid exposure is a concern. The nylon ball reduces marking or damage to mating surfaces, making this plunger appropriate for use against softer materials or finished surfaces. Typical installations include machine tool fixtures, panel latching mechanisms, and drawer or slide positioning systems where repeatable, light-force detent action is needed.

Key Features

• 10-32 threaded body for direct installation into tapped holes without additional hardware
• Stainless steel body construction for corrosion resistance in demanding environments
• Nylon ball minimizes surface marking on mating components
• Integrated locking element secures plunger position after final adjustment
• 0.5 pound initial end force and 1.5 pound final end force for light detent applications
• Compact body length of 0.513 inches fits tight clearance installations

Compatibility

Designed as a standard 10-32 threaded ball plunger for use in any tapped 10-32 hole in mechanical assemblies, fixtures, or tooling where a light-force nylon-ball detent is required.

Installation Notes

Install using a hex key or spanner suited to the plunger body drive feature; ensure the mating hole is clean and correctly tapped to 10-32 before threading in. Engage the locking element per the manufacturer's procedure to fix the plunger at the desired extension after setting final force. Avoid over-torquing, which can damage the nylon ball or distort the stainless steel body. No special codes govern this mechanical fastener installation, but follow applicable machinery safety lockout procedures before servicing assemblies containing this component.
