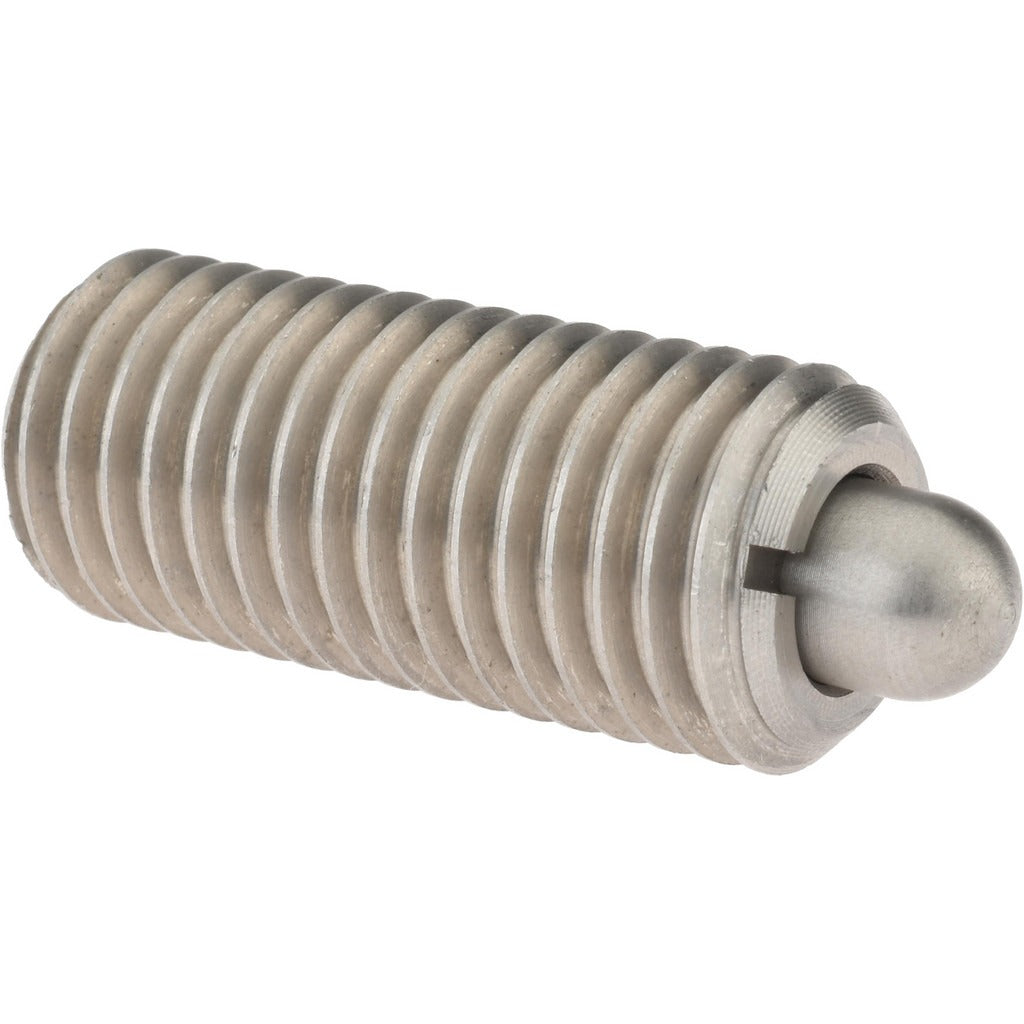

Gibraltar SSW10-12-G Threaded Spring Plunger 3/4-10

Product Description

The GIBRALTAR SSW10-12-G is a standard threaded spring plunger designed for precise, repeatable positioning and indexing in fixtures, jigs, and mechanical assemblies. It features a 3/4-10 thread with a 1-3/4 inch thread length and a maximum plunger diameter of 0.374 inches. The stainless steel body delivers corrosion resistance suitable for demanding industrial environments. With an initial end force of 6.7 pounds and a final end force of 37.3 pounds, this plunger provides reliable spring tension across the 5/16 inch projection stroke. Machinists, toolmakers, and maintenance technicians install this type of component in production tooling and precision mechanical equipment.

This spring plunger is suited for industrial and manufacturing applications where consistent locating force is required. Typical uses include workholding fixtures, assembly jigs, die sets, and machine tool components. The standard plunger length type and no locking element configuration make it straightforward to install and replace in threaded housings. It is appropriate for light to moderate positioning loads in both manual and automated assembly operations.

Key Features

• 3/4-10 thread size with 1-3/4 inch thread length for secure installation in standard threaded bores
• Stainless steel body provides corrosion resistance in wet, oily, or chemically exposed environments
• 6.7 pound initial end force and 37.3 pound final end force for reliable spring tension
• 5/16 inch plunger projection with 0.374 inch maximum plunger diameter
• No locking element for straightforward installation and removal without thread-locking compounds
• Standard plunger length type for compatibility with common threaded housing configurations

Compatibility

Designed as an OEM-style replacement or direct installation component for standard 3/4-10 threaded spring plunger housings used in industrial fixtures, jigs, and mechanical assemblies.

Installation Notes

This spring plunger is installed by machinists or maintenance technicians using a spanner wrench or appropriate drive tool sized for the 3/4-10 thread. Ensure the receiving threaded bore is clean and free of debris before installation. Power down or de-energize any associated equipment before servicing components in the assembly. Do not exceed the rated final end force when selecting this plunger for a given application.
