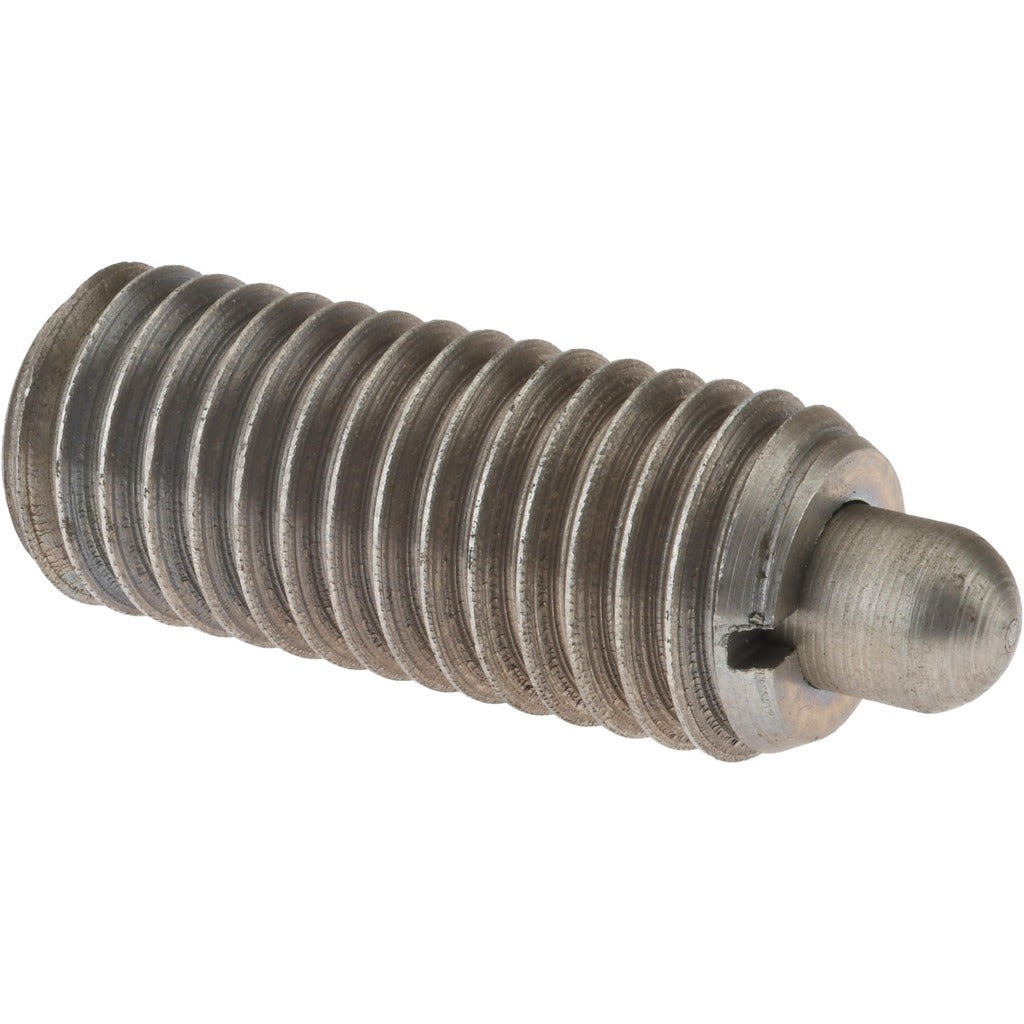

Gibraltar SSW10-10-G Threaded Spring Plunger 5/8-11

Product Description

The GIBRALTAR SSW10-10-G is a standard threaded spring plunger designed for indexing, positioning, and light clamping applications in industrial and mechanical assemblies. The plunger body is constructed from stainless steel, with a steel nose, and features a 5/8-11 thread with a 1-1/2 inch thread length. It delivers 10.5 pounds of initial end force and 25.5 pounds of final end force, making it suitable for repeatable positioning tasks that require consistent spring-loaded engagement. This part is installed by machinists, maintenance technicians, and mechanical assemblers working on fixtures, jigs, tooling plates, and production equipment.

This spring plunger is suited for use in precision machining fixtures, assembly jigs, automated tooling, and general industrial positioning applications. The 5/8-11 thread size fits standard tapped holes in steel, aluminum, and similar materials. With a maximum plunger diameter of 0.31 inches and a 5/16 inch projection, it is appropriate for installations where controlled, spring-loaded nose engagement is required without a locking element. It is sold in a package quantity of one.

Key Features

• Stainless steel body for corrosion resistance in demanding environments
• Steel nose material for durability at the contact point
• 5/8-11 thread size with 1-1/2 inch thread length for secure installation in standard tapped holes
• 10.5 lb initial end force and 25.5 lb final end force for consistent spring-loaded positioning
• 5/16 inch plunger projection with 0.31 inch maximum plunger diameter
• No locking element — free-spinning installation for easy adjustment and removal

Compatibility

Designed as a standard replacement or new-installation threaded spring plunger for any application requiring a 5/8-11 tapped hole and a 1-1/2 inch body length with a non-locking, steel-nose plunger.

Installation Notes

Installation is performed by hand or with a wrench into a properly tapped 5/8-11 hole; ensure the mating bore is clean and free of debris before threading the plunger in. De-energize or lock out any machinery before servicing fixtures or tooling plates that contain spring plungers. Do not exceed the rated final end force, as overloading the plunger spring can cause premature failure or deformation of the nose.
