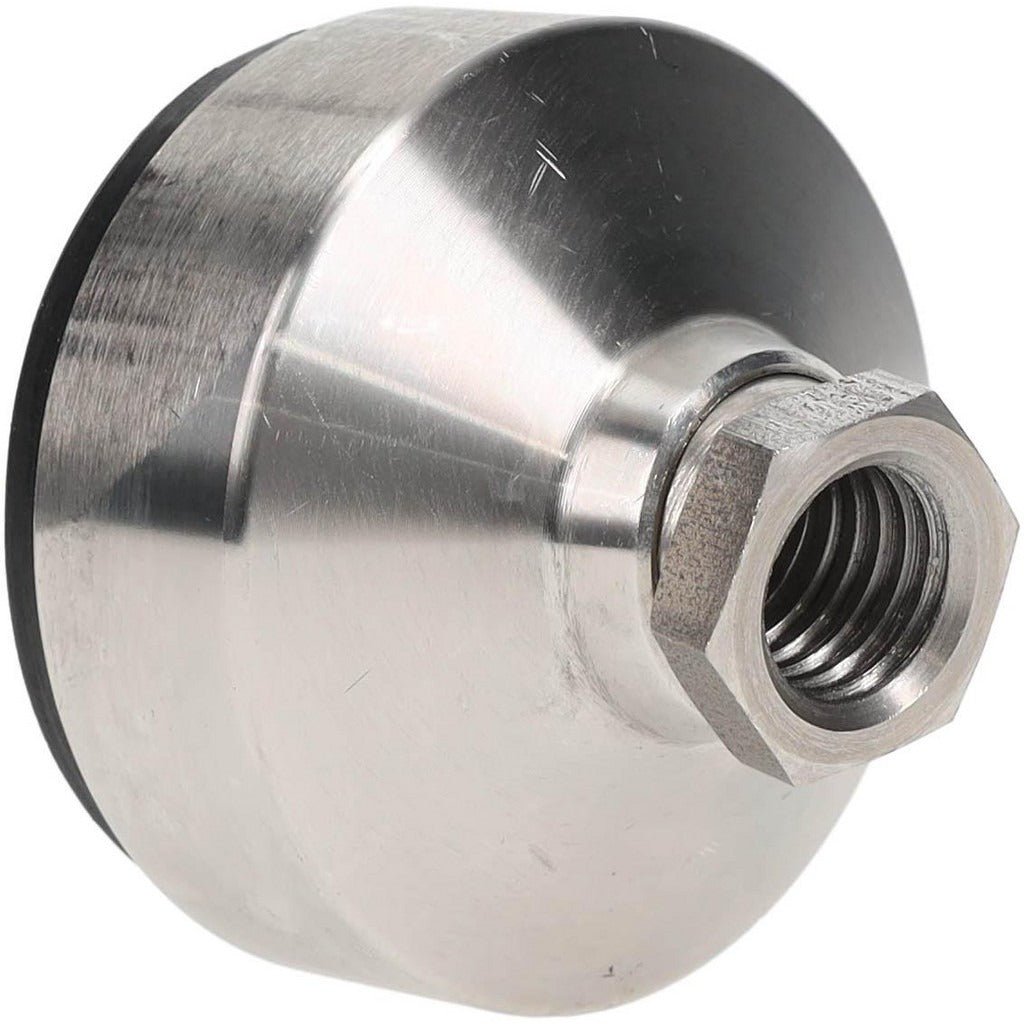

Gibraltar SS-TSW-3L-G Tapped Leveling Mount 5/8-11

Product Description

The GIBRALTAR SS-TSW-3L-G is a tapped leveling mount designed for industrial and commercial equipment positioning applications. It features a 5/8-11 threaded stud and accepts a threaded insert for precise height and level adjustment. Both the stud and pad are constructed from stainless steel, providing corrosion resistance in demanding or washdown environments. With a rated load capacity of 220 pounds (100 kg), this mount is built to support heavy machinery, fabricated frames, and process equipment. The 2.5-inch base diameter distributes load evenly across the mounting surface. Millwrights, maintenance technicians, and equipment installers use this type of mount to level machinery on uneven floors.

This leveling mount is suited for use in manufacturing plants, food processing facilities, and commercial kitchens where stainless steel construction is required for hygiene or corrosion resistance. It is a direct-thread design, meaning the mount is leveled by turning the stud within a tapped receiver or jam nut setup. The 7/8-inch hex drive allows adjustment with a standard open-end or box wrench. Typical applications include leveling machine bases, equipment stands, conveyor frames, and fabricated support structures.

Key Features

• Stainless steel stud and pad for corrosion resistance in wet or washdown environments
• 220 pound (100 kg) load capacity for heavy equipment support
• 5/8-11 thread size for compatibility with standard tapped leveling receivers
• 2.5-inch base diameter for stable load distribution
• 7/8-inch hex size allows adjustment with common hand tools
• Overall length of 1.875 inches suits low-profile leveling applications

Compatibility

Designed as an OEM-style tapped leveling mount for equipment frames and machine bases requiring a 5/8-11 threaded mount with stainless steel construction.

Installation Notes

Installation is performed by threading the stud into a pre-tapped hole or receiver on the equipment base. Use a 7/8-inch wrench on the hex drive to adjust height and level. A jam nut should be used to lock the mount at the desired position once leveling is complete. Ensure the mounting surface load does not exceed the 220 pound rated capacity per mount.
