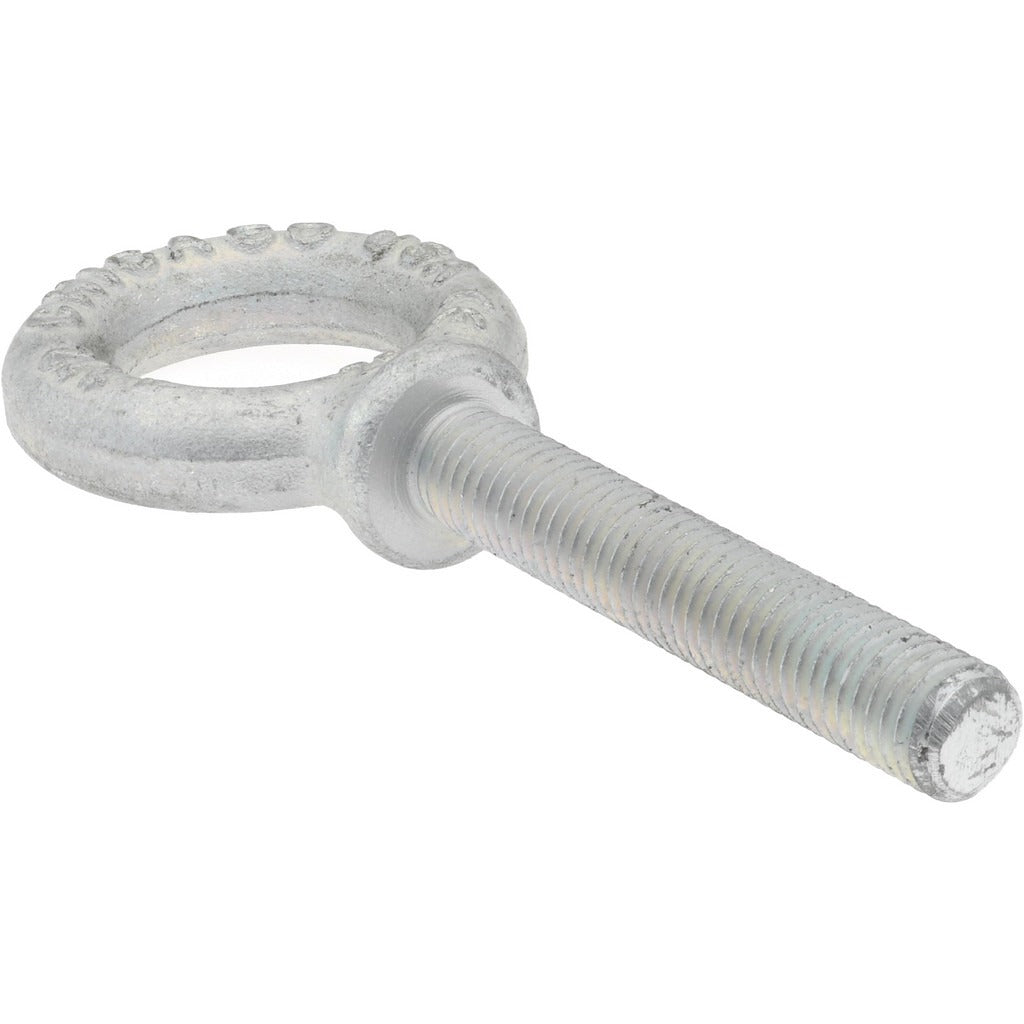

Gibraltar SP20360 Fixed Shoulder Eye Bolt 2600 Lb 1/2-13

Product Description

The GIBRALTAR SP20360 is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and rigging applications in industrial, construction, and mechanical service environments. Rated at 2,600 lb lifting capacity, it features a 1/2-13 thread size with a fully threaded, 3-inch shank and 3-inch thread length. Constructed from C-1035 grade steel with a zinc-plated finish for corrosion resistance, this eye bolt is built to handle repeated load cycles in demanding conditions. It is installed by maintenance technicians, riggers, and tradespeople who require a reliable, load-rated anchor point on machinery, structural members, or equipment frames.

This eye bolt is suited for use in residential, commercial, and light industrial settings where a fixed, shouldered anchor point is required. The shoulder design ensures the eye bolt seats flush against the mounting surface, distributing load evenly and preventing pull-through under vertical or angular loads. Typical applications include lifting machinery components, suspending equipment, and anchoring rigging hardware to steel or structural substrates. The 1/2-13 thread size is a common fastener standard, making it compatible with widely available hardware in most shop and field environments.

Key Features

• 2,600 lb lifting capacity for reliable load-rated rigging
• Shoulder design seats flush against mounting surface for even load distribution
• Fully threaded 3-inch shank for maximum thread engagement depth
• 1/2-13 thread size matches common hardware standards
• C-1035 grade steel construction for strength and durability
• Zinc-plated finish provides corrosion resistance in typical service environments

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use with standard 1/2-13 threaded mounting points in lifting, rigging, and anchoring applications across industrial and mechanical service environments.

Installation Notes

Installation should be performed by a qualified rigger or tradesperson familiar with applicable lifting and rigging standards. Ensure the mounting substrate is rated for the intended load before installing. Thread the eye bolt fully until the shoulder seats flush and firm against the surface before applying any load. Always de-energize and secure equipment before installing or removing load-bearing hardware on machinery.
