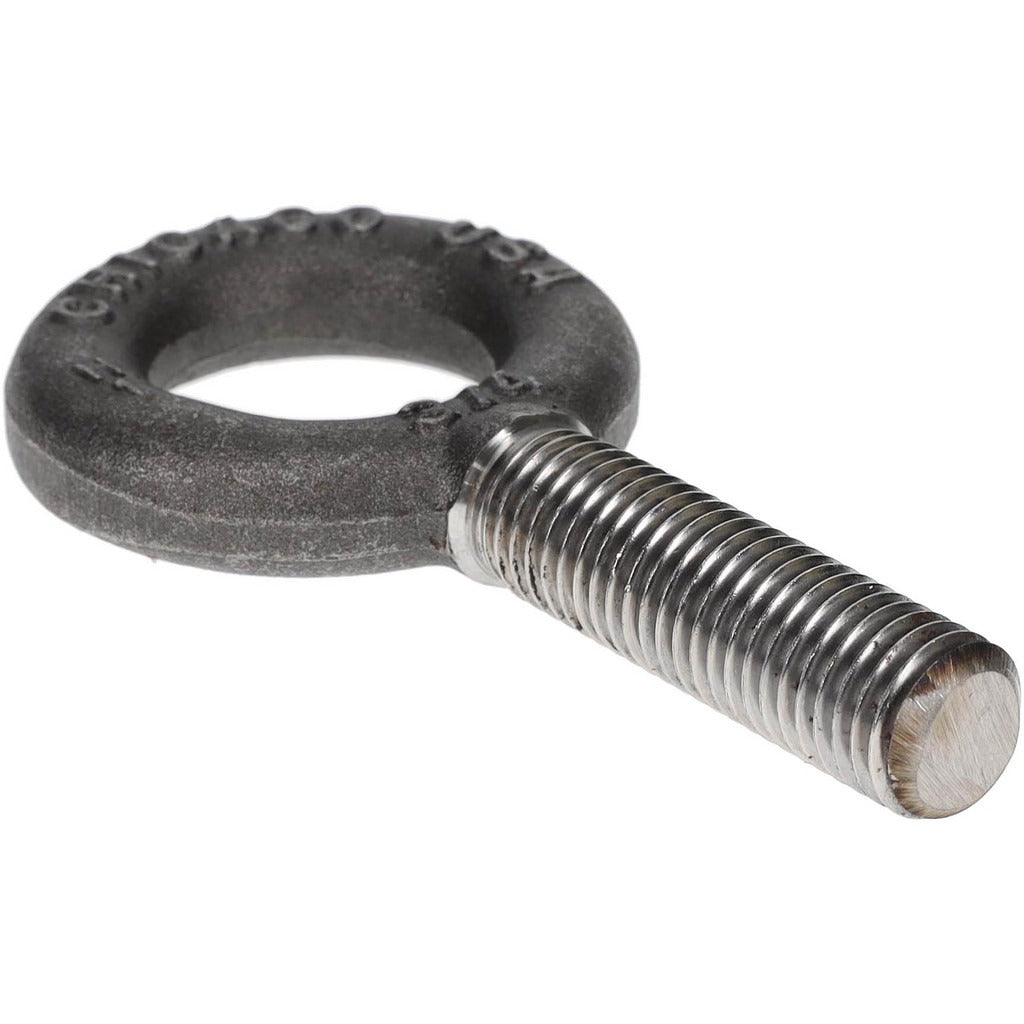

Gibraltar SP12304 Lifting Eye Bolt 6000 Lb 3/4-10 Thread

Product Description

The GIBRALTAR SP12304 is a shoulderless lifting eye bolt designed for overhead lifting and rigging applications in industrial, construction, and mechanical service environments. Rated at 6,000 lb lifting capacity and manufactured from C-1035 grade steel, this eye bolt delivers the structural integrity required for demanding load-handling tasks. The shank is fully threaded over its 2.5-inch length with a 3/4-10 thread size, allowing secure engagement across the full fastening depth. Installation and rigging tasks are typically performed by millwrights, riggers, ironworkers, or maintenance mechanics working to ASME B30.26 and OSHA rigging standards.

The SP12304 is suited for use in vertical-axis straight-line lifting where a shoulderless configuration is appropriate. The 1.5-inch eye inside diameter accommodates standard shackles and hooks used in light-to-medium rigging setups. It is appropriate for use in machinery relocation, equipment installation, structural steel handling, and general overhead lifting in both shop and field settings. This eye bolt is intended strictly for in-line vertical loads - angular loading on a shoulderless eye bolt significantly reduces rated capacity and must be avoided.

Key Features

• 6,000 lb rated lifting capacity for dependable load handling
• Fully threaded 2.5-inch shank with 3/4-10 thread for maximum fastener engagement
• C-1035 grade steel construction for high tensile strength
• 1.5-inch eye inside diameter compatible with standard rigging hardware
• Shoulderless design for straightforward vertical-lift installations

Compatibility

Designed as a standard shoulderless lifting eye bolt for use with 3/4-10 threaded anchor points in industrial and construction rigging applications.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with applicable ASME and OSHA overhead lifting requirements. Ensure the receiving threaded hole provides full thread engagement equal to at least the shank length before applying any load. Always de-energize and lock out associated equipment before attaching or removing this eye bolt. Never apply angular or side loads to a shoulderless eye bolt - use a shoulder-style eye bolt when off-axis loading is required.
