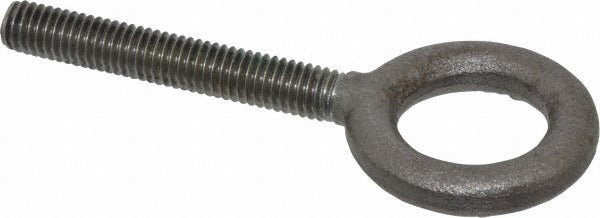

Gibraltar SP11825 Lifting Eye Bolt 1400 Lb 3/8-16 Thread

Product Description

The GIBRALTAR SP11825 is a fully threaded lifting eye bolt rated for 1,400 lb capacity, designed for vertical and rigging lift applications in industrial, mechanical, and commercial settings. Built from grade C-1035 steel, it features a 3/8-16 thread size with a 2.5-inch shank and 2.5 inches of full thread engagement. The shoulderless design suits applications where the bolt is threaded directly into a tapped hole and the load is applied along the bolt axis. Riggers, millwrights, and maintenance mechanics use this hardware for overhead lifting, equipment positioning, and load-securing tasks.

This eye bolt is suited for use in manufacturing facilities, machine shops, and maintenance environments where a compact, fully threaded lifting point is needed. The 3/8-16 thread pattern fits standard tapped holes and works with compatible lifting hooks, shackles, and slings. It is intended for straight vertical pulls; angular loading on a shoulderless eye bolt reduces rated capacity and requires additional engineering consideration per applicable rigging standards.

Key Features

• 1,400 lb lifting capacity for vertical load applications
• Fully threaded 2.5-inch shank for maximum thread engagement
• 3/8-16 thread size fits standard tapped holes
• Shoulderless design for through-hole or tapped-hole mounting
• Grade C-1035 steel construction for strength and durability
• 1-inch eye inside diameter accommodates standard hooks and shackles

Compatibility

Designed as a standard shoulderless lifting eye bolt with 3/8-16 threading, compatible with lifting hooks, shackles, and rigging hardware rated for the same or greater working load limit.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30 and OSHA rigging standards. Thread the bolt fully into a clean, properly tapped hole to achieve full shank engagement before applying any load. Inspect threads and the eye for deformation or damage before each use, and never exceed the rated lifting capacity. Shoulderless eye bolts must be loaded along the bolt axis only — side or angular loading without a shouldered base is not permitted under standard rigging practice.
