Gibraltar SL-813 Side Lock M10-1.50 Thread Die Hardware

Product Description

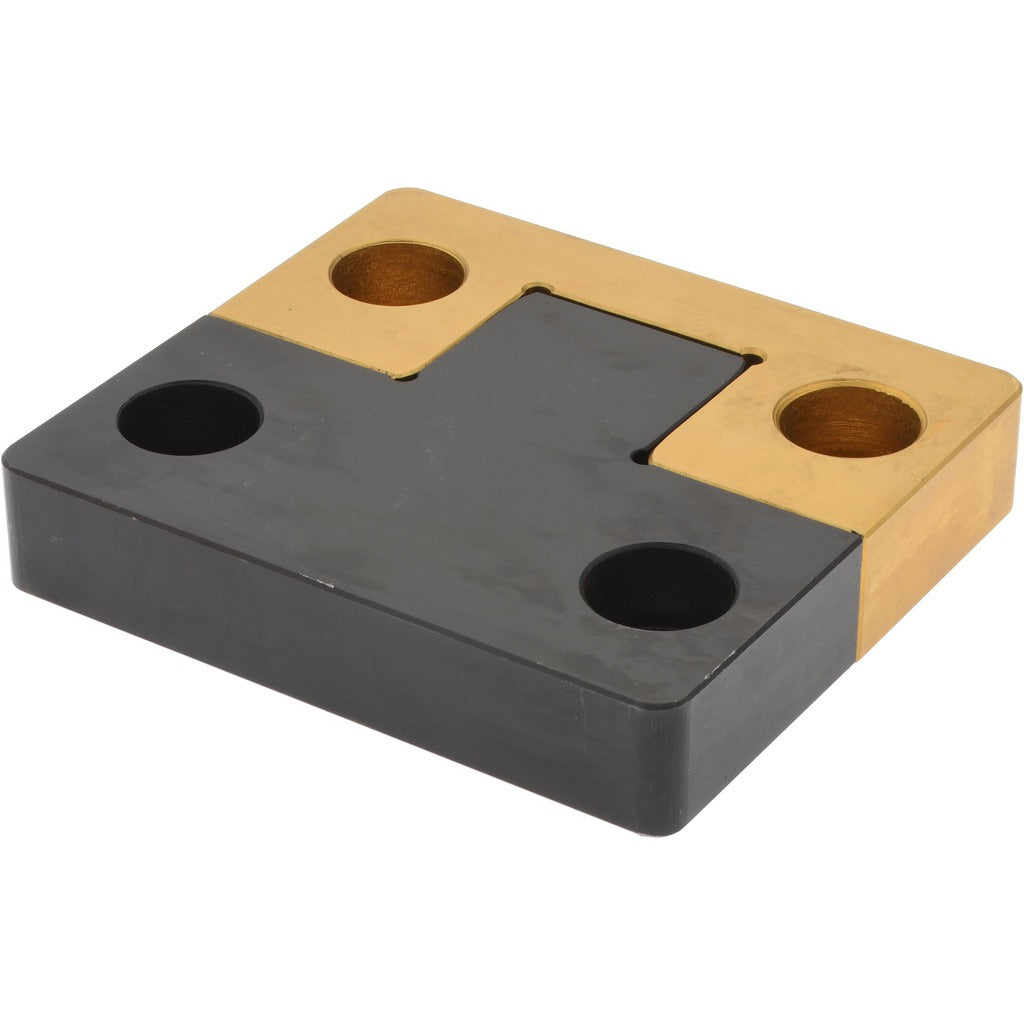

The GIBRALTAR SL-813 is a side lock component designed for use in mold blank and punch die set assemblies. It provides secure lateral locking action within the mold structure, maintaining precise alignment during the die casting or injection molding cycle. The SL-813 features an M10-1.50 thread size and a compact profile measuring 3.54 inches in height, 3.94 inches in width, and 0.75 inches in length. Weighing 0.5 pounds, this single-piece hardware unit is suited for toolmakers and mold technicians who need a reliable, drop-in side lock solution for production tooling applications.

The SL-813 is intended for installation in die cast molds and injection molds where controlled lateral movement or positive locking between mold halves is required. It fits into mold blank assemblies as part of a punch die set configuration. The compact dimensions allow integration into tight mold plate layouts without significant modification to existing tooling geometry. Toolmakers in both prototype and production environments commonly specify this component during mold build or refurbishment work.

Key Features

• Side lock design provides controlled lateral engagement within mold assemblies
• M10-1.50 thread size for secure mechanical fastening
• Compact form factor at 3.54 inches height and 3.94 inches width
• Compatible with die cast mold and injection mold configurations
• Single-piece unit sold individually, no additional hardware set required

Compatibility

Compatible with die cast mold and injection mold assemblies. Designed as a side lock replacement or build component for punch die set hardware configurations.

Installation Notes

Installation should be performed by a qualified toolmaker or mold technician with the mold fully depressurized and removed from the press or casting machine before service. Verify thread engagement depth against the mold plate specification before final torque. Ensure all mold halves are properly aligned before cycling the assembly after installation.
