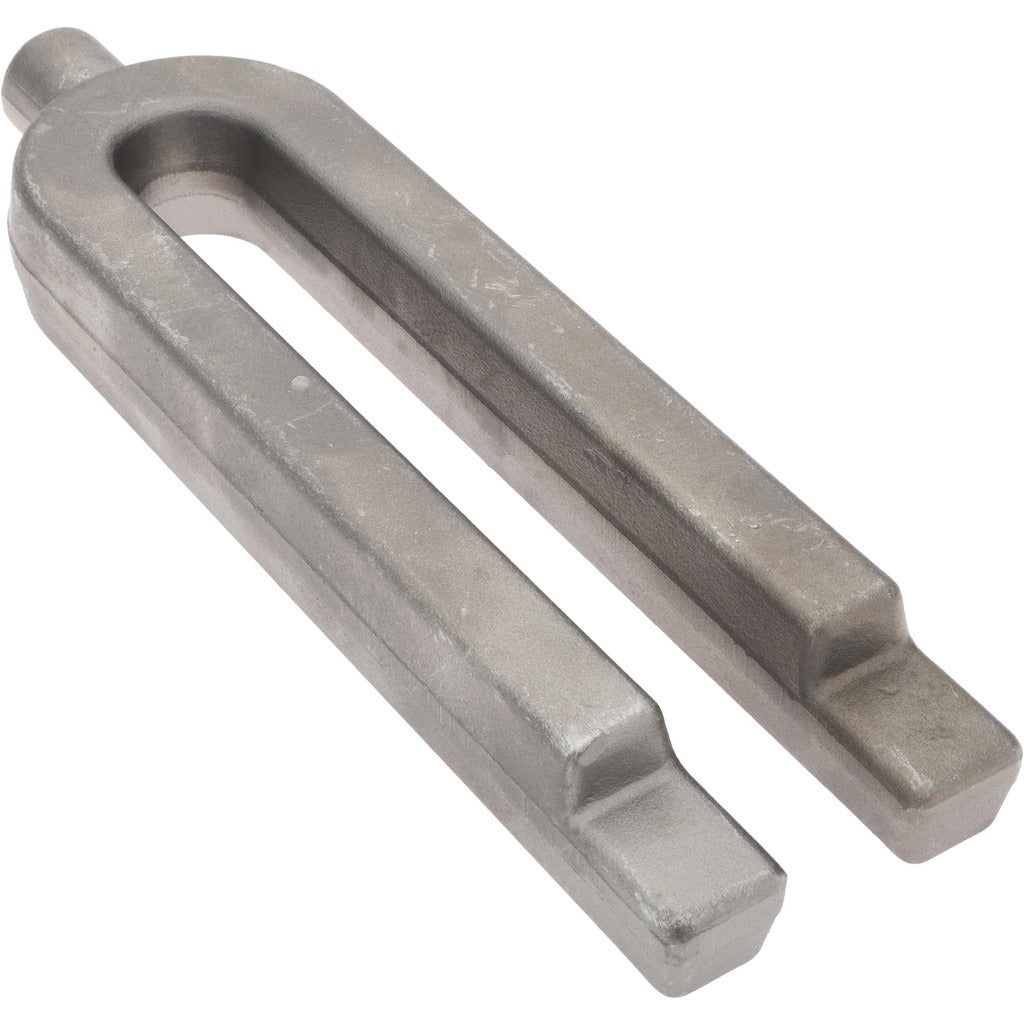

Gibraltar SID-923-G U-shaped Strap Clamp Forged Steel

Product Description

The GIBRALTAR SID-923-G is a U-shaped strap clamp manufactured from forged steel, designed for workholding and fixturing applications in machining, fabrication, and industrial settings. It measures 2.75 inches wide and 1.25 inches high, with an overall length of 10 inches and a 9-inch slot that provides 9 inches of travel for positioning flexibility. The 15/16-inch stud size accommodates standard clamping hardware. Machinists, tool-and-die technicians, and fabricators install this clamp when a secure, adjustable hold-down is needed on a mill table, fixture plate, or similar work surface. The forged steel construction delivers strength and rigidity under clamping load.

This strap clamp is suited for manual machining and CNC setup applications in both job-shop and production environments. The slotted design allows the clamp to be repositioned along its length to accommodate varying workpiece sizes and fixture layouts. It is a standard component in milling and grinding workholding setups where repeatable, rigid clamping is required without complex tooling.

Key Features

• Forged steel construction for high clamping strength and durability
• 9-inch slot length with 9 inches of travel for flexible workpiece positioning
• 2.75-inch width and 1.25-inch height suit a range of standard workholding configurations
• 15/16-inch stud size compatible with common clamping stud sets
• 10-inch overall length provides broad clamping reach across the fixture surface

Compatibility

Designed as an OEM-style replacement or direct-use component for standard U-shaped strap clamp workholding setups requiring a 15/16-inch stud and up to 9 inches of travel.

Installation Notes

Installation is performed by machinists or toolroom technicians as part of a workholding setup. Ensure the milling machine or fixture table is powered down and the spindle is locked before adjusting or positioning clamps. Use appropriate T-slot hardware, studs, and step blocks rated for the clamping load of the application. Follow your facility safety procedures and any applicable OSHA machine guarding requirements when setting up workholding fixtures.
