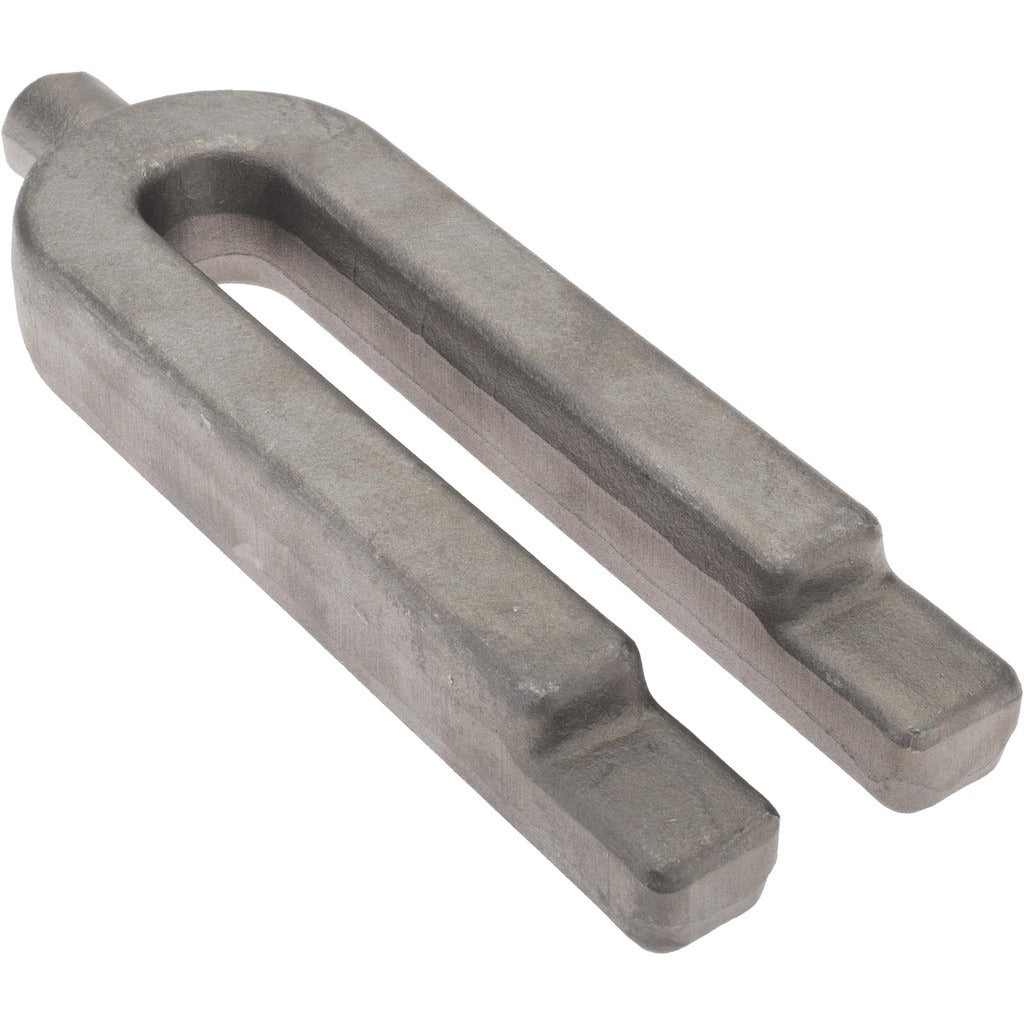

Gibraltar SID-922-G U-shaped Strap Clamp Forged Steel

Product Description

The GIBRALTAR SID-922-G is a U-shaped strap clamp machined from forged steel for use in workholding, fixturing, and clamping applications in industrial and trade environments. The clamp measures 2.375 inches wide and 1.125 inches high, with an overall length of 8 inches. A 0.8125-inch stud size and 7.375-inch slot length allow for flexible positioning across a wide range of setups. Machinists, maintenance technicians, and fabricators rely on this style of clamp for secure, repeatable workholding on mills, drill presses, and fixture plates.

This U-strap clamp is suited for use in machine shops, maintenance facilities, and production environments where a reliable, adjustable strap clamp is needed. The 7.375-inch travel range provides versatility when clamping workpieces of varying heights. The 0.8125-inch slot width accommodates standard stud hardware, making integration into existing fixturing systems straightforward. It is typically used wherever a T-slot or stud-based clamping setup is required on a machine table or fixture plate.

Key Features

• Forged steel construction for high strength and durability under clamping loads
• Overall length of 8 inches with 7.375 inches of travel for flexible workholding reach
• Slot length of 7.375 inches and slot width of 0.8125 inches for stud compatibility
• Width of 2.375 inches and height of 1.125 inches for a compact, rigid profile
• U-shaped profile distributes clamping force evenly across the workpiece

Compatibility

Designed as an OEM-style replacement or direct-use strap clamp for standard stud-based workholding and fixturing systems using a 0.8125-inch stud size.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard hand tools and appropriate stud hardware. Always ensure the machine table or fixture plate is powered down and secured before installing or adjusting clamps. Verify stud torque is appropriate for the workpiece material and clamping load without over-stressing the clamp body. Follow applicable shop safety and workholding procedures when setting up fixtures.
