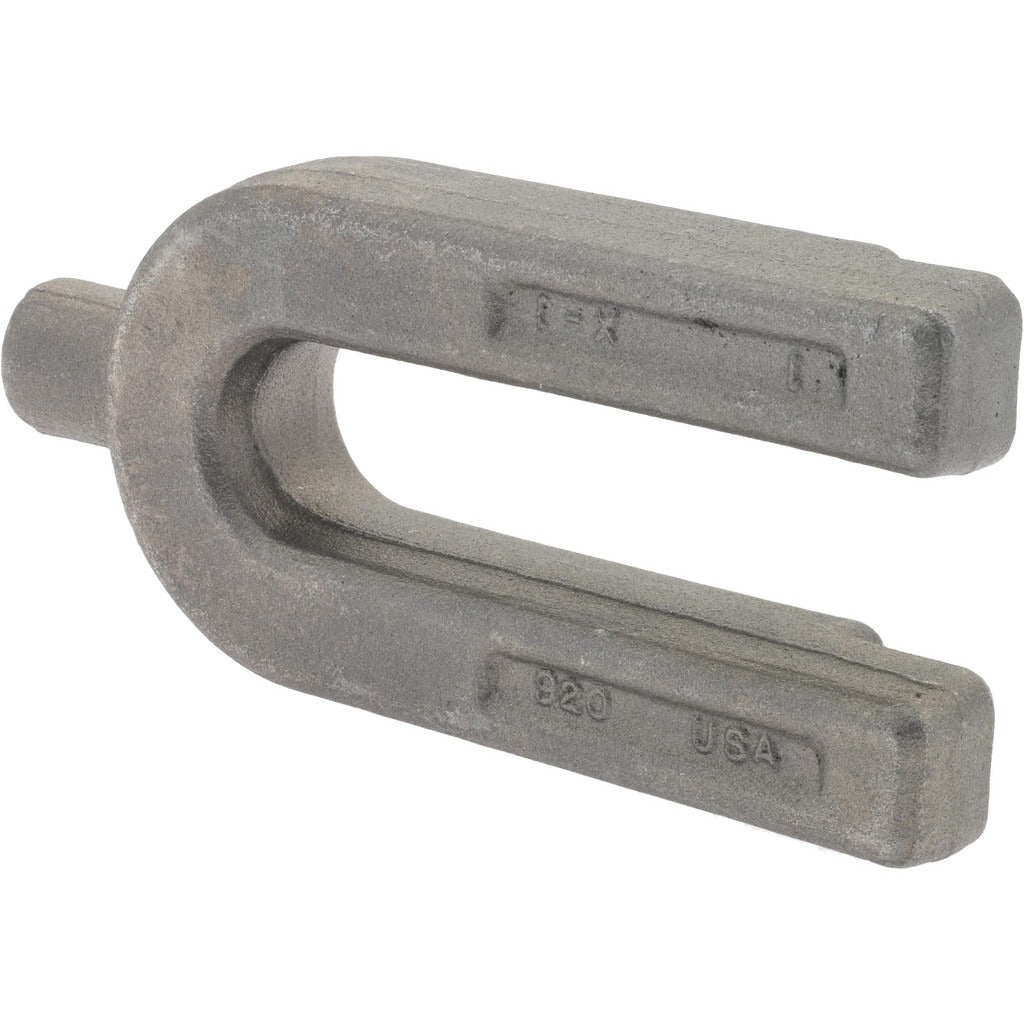

Gibraltar SID-920-G U-shaped Strap Clamp Forged Steel

Product Description

The GIBRALTAR SID-920-G is a U-shaped strap clamp machined from forged steel for use in secure workholding and fixturing applications. It measures 1.75 inches wide and 0.75 inches high, with an overall length of 4 inches and a slot length of 3.5 inches. The 11/16-inch stud size and 3.5-inch travel range allow for flexible positioning across a variety of clamping setups. The slot width of 11/16 inches accommodates standard T-bolts and studs. This type of clamp is typically installed by machinists, tool-and-die technicians, and maintenance professionals working with milling machines, drill presses, and similar equipment.

This strap clamp is suited for general industrial workholding on machine tables, fixtures, and jigs in both shop and production environments. The forged steel construction provides the strength and rigidity needed for moderate to heavy clamping loads. It is appropriate for use wherever a low-profile, adjustable hold-down solution is required on flat or stepped workpieces. No specific compatible equipment families are stated by the manufacturer for this part.

Key Features

• Forged steel construction for high strength and durability under clamping loads
• U-shaped profile allows the clamp to straddle workpieces or step blocks
• 3.5-inch slot length provides adjustable positioning along the stud
• 11/16-inch stud size fits standard T-bolts used on machine table T-slots
• 3.5-inch travel range accommodates a variety of workpiece heights
• Compact 0.75-inch height keeps the clamp profile low on the work surface

Compatibility

Designed as an OEM-style replacement or direct-use strap clamp for standard industrial workholding setups requiring an 11/16-inch stud and a U-shaped clamp profile.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools. Ensure the machine table or fixture surface is clean and the T-bolt or stud is properly seated before torquing. Do not exceed the load rating of the stud or T-slot being used. Verify that the clamp is centered over the workpiece or step block to prevent uneven loading.
