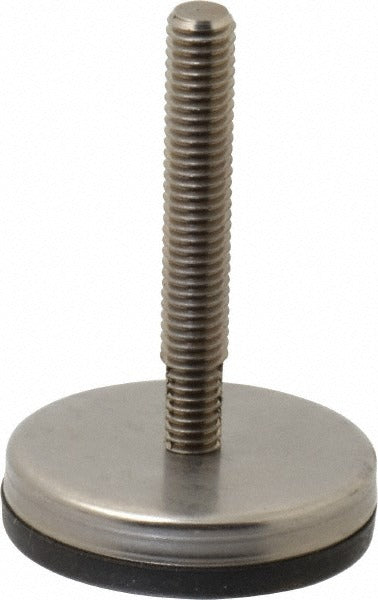

Gibraltar SG05-EL-G Leveling Mount 250 Lb

Product Description

The GIBRALTAR SG05-EL-G is a threaded leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and fabricated assemblies. With a 250-pound load capacity and a 3/8-16 bolt thread, this mount allows precise height and level adjustment across a firm base footprint. The 2.03-inch base diameter distributes load evenly across mounting surfaces, reducing stress on frames and reducing equipment vibration transfer. A 2.0-inch thread length gives sufficient adjustment range for leveling applications on uneven or slightly irregular surfaces. Installers working with light industrial frames, control panels, or mechanical equipment supports will find this a straightforward, reliable component.

This leveling mount is suited for light industrial, commercial, and mechanical installation settings where equipment must be set level on concrete floors, raised platforms, or steel frames. Typical applications include machinery bases, electrical enclosure feet, conveyor supports, and fabricated equipment stands. It is sold individually and is a practical choice when a standard 3/8-16 threaded mount is called out in an installation or maintenance specification.

Key Features

• 250-pound load capacity per mount for light to moderate equipment support
• 3/8-16 bolt thread for compatibility with standard fastener hardware
• 2.03-inch base diameter distributes load and improves surface contact
• 2.0-inch thread length allows meaningful height and level adjustment
• Compact form factor at 0.16 pounds for easy handling during installation

Compatibility

Designed as a standard threaded leveling mount suitable for equipment frames, enclosures, and fabricated stands that accept a 3/8-16 threaded leveling foot.

Installation Notes

Leveling mounts of this type are typically installed by millwrights, electricians, or mechanical contractors during equipment placement and commissioning. Power down and de-energize any associated equipment before adjusting mounts on live systems. Use a wrench or socket on the threaded stud to set height, then lock in position with a jam nut if the application requires vibration resistance. Verify level with a precision level after tightening all mounts to final position.
