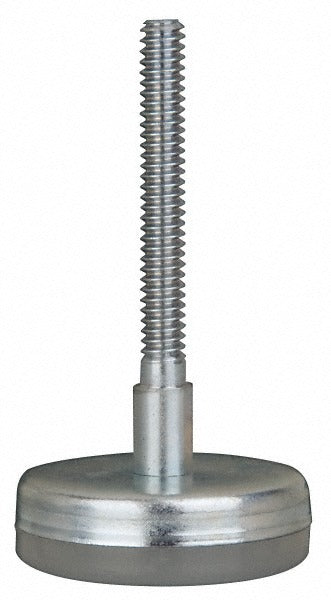

Gibraltar SG014-EL-G Leveling Mount 500 Lb

Product Description

The GIBRALTAR SG014-EL-G is a heavy-duty leveling mount designed to support and adjust the height of machinery, equipment frames, and workstations. It provides a stable, adjustable base for stationary equipment that requires precise leveling on uneven or hard flooring. With a 500 lb load capacity and a 1/2-13 bolt thread size, this mount handles demanding industrial and commercial applications. The 3.187-inch base diameter distributes load across a broad contact area, reducing surface stress and improving stability. Maintenance technicians, millwrights, and facilities professionals install this type of hardware during equipment setup and alignment.

This leveling mount is suited for use in commercial, industrial, and light manufacturing environments where equipment must sit level and remain stationary under load. Typical applications include machine tool bases, HVAC equipment skids, compressor frames, shelving units, and fabrication workbenches. The threaded stem allows height adjustment without removing the equipment from its position, making it practical for initial installation and ongoing realignment.

Key Features

• 500 lb load capacity supports heavy stationary equipment
• 1/2-13 bolt thread size for compatibility with standard threaded equipment bases
• 3.187-inch base diameter provides a wide footprint for load distribution
• 4.0-inch thread length allows a wide range of height adjustment
• Compact package quantity of one unit for single-point replacement or retrofit

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for equipment bases, machine frames, and support structures using a 1/2-13 threaded stem configuration.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or facilities personnel using standard hand tools. Before installing or adjusting leveling mounts, ensure the equipment is de-energized, depressurized, and safely supported. Thread the mount into the equipment base to the appropriate depth before placing the unit on the floor surface, then adjust height evenly across all mount points to achieve level. Refer to the equipment manufacturer's alignment specifications when setting final mount height.
