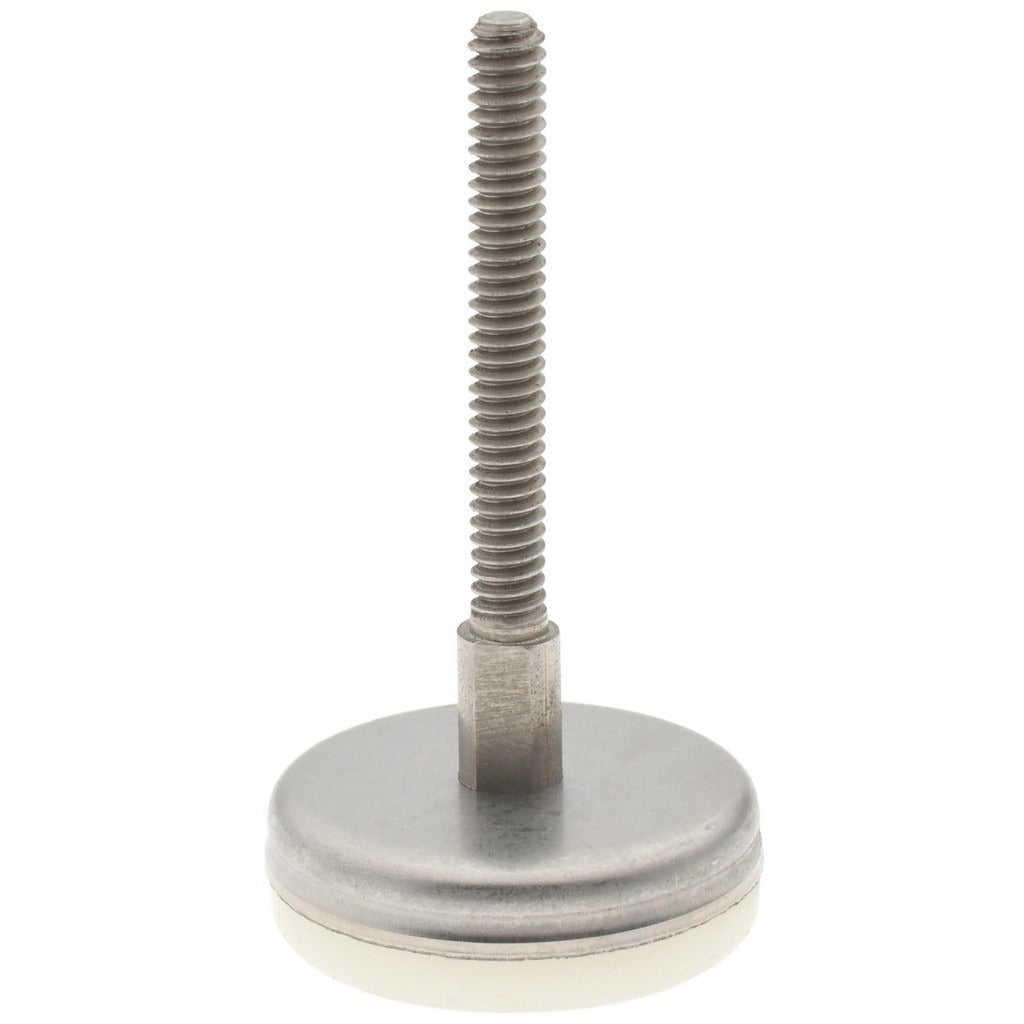

Gibraltar SG-01-G Leveling Mount 250 Lb

Product Description

The GIBRALTAR SG-01-G is a threaded leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and fabricated assemblies. It features a 10-24 bolt thread size and a load capacity of 250 pounds, making it suitable for light to moderate industrial and commercial leveling applications. The 1.2-inch base diameter distributes load across a compact footprint, while the 1.5-inch thread length allows for meaningful height adjustment. This type of hardware is typically installed by millwrights, machine technicians, maintenance mechanics, or experienced fabricators during equipment setup or alignment tasks.

Leveling mounts like the SG-01-G are used in industrial machinery installations, equipment bases, workstation assemblies, and control enclosures where precise leveling and vibration isolation are required. The threaded stud design allows the mount to be threaded directly into a tapped hole or secured with a nut, providing height adjustment during setup. Suitable for both new installations and replacement applications on light-duty equipment requiring a 10-24 threaded interface.

Key Features

• 250 lb load capacity for light to moderate duty support applications
• 10-24 bolt thread size for compatibility with standard tapped assemblies
• 1.2-inch base diameter provides stable ground contact in a compact footprint
• 1.5-inch thread length allows for height and level adjustment during installation
• Sold individually for single-point replacement or custom leveling configurations

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for equipment and machinery requiring a 10-24 threaded leveling foot with a 250 lb load rating.

Installation Notes

Install by threading the stud into a pre-tapped hole or through-hole with a mating nut, then adjust to the desired height before tightening a jam nut to lock position. De-energize and lock out any powered equipment before performing leveling adjustments on machinery. Use a level to verify alignment across all mounting points. Apply thread-locking compound only if specified by the equipment manufacturer, as permanent adhesives may prevent future adjustment.
