Gibraltar REFR-250-G Quick Release Pin Receptacle

Product Description

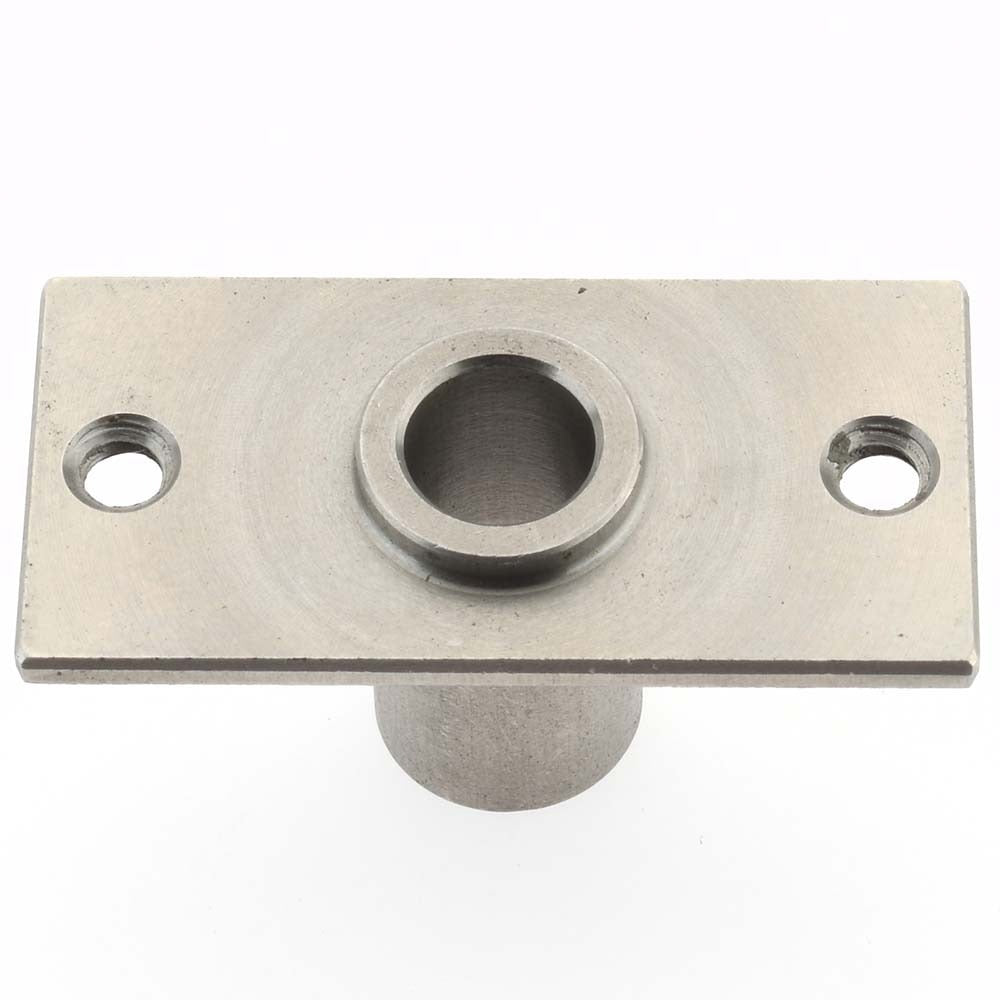

The GIBRALTAR REFR-250-G is a stainless steel quick release pin receptacle designed to accept and retain quick release pins in fastening, positioning, and assembly applications. Built from Grade 303 stainless steel, it offers solid corrosion resistance and dimensional stability under repeated use. The receptacle features a rectangle mounting flange with a 6-32 threaded mounting hole, allowing secure installation to panels, brackets, and structural components. At 0.375 inches in diameter and 0.65 inches in depth, the receptacle provides a precise bore for 0.25-inch pin diameter quick release pins. Machinists, tool and die technicians, and MRO specialists install this hardware in jigs, fixtures, and mechanical assemblies where quick tool-free disassembly is required.

This receptacle is suited for use in light industrial, manufacturing, and mechanical assembly environments. It is commonly installed in fixture plates, positioning jigs, enclosures, and equipment panels where a flush or flanged mount point for a quick release pin is needed. The rectangle flange footprint with 1.0-inch center-to-center mount hole spacing makes it compatible with standard panel drilling layouts. Grade 303 stainless steel construction makes it appropriate for applications requiring moderate corrosion resistance, such as food-adjacent equipment, wet environments, or general-purpose industrial use.

Key Features

• Grade 303 stainless steel construction for corrosion resistance and durability
• Rectangle mounting flange with 6-32 threaded mounting hole for secure panel installation
• 0.375-inch receptacle diameter accepts standard 0.25-inch quick release pins
• 0.65-inch receptacle depth provides positive pin engagement and retention
• 1.0-inch center-to-center mount hole spacing fits standard panel layouts
• Compact flange dimensions suit space-constrained mounting surfaces

Compatibility

Designed as an OEM-style receptacle for use with 0.25-inch pin diameter quick release pins in industrial fixture, jig, and panel assembly applications.

Installation Notes

Installation is typically performed by machinists or mechanical assembly technicians using standard hand tools. Power down or de-energize any associated equipment before mounting or servicing components in the assembly. Ensure the mounting surface is drilled and tapped to 6-32 specifications and that the mount hole centers are spaced to match the 1.0-inch center-to-center dimension before fastening. Do not over-torque mounting fasteners into the flange, as the 0.06-inch flange thickness limits clamping load.
