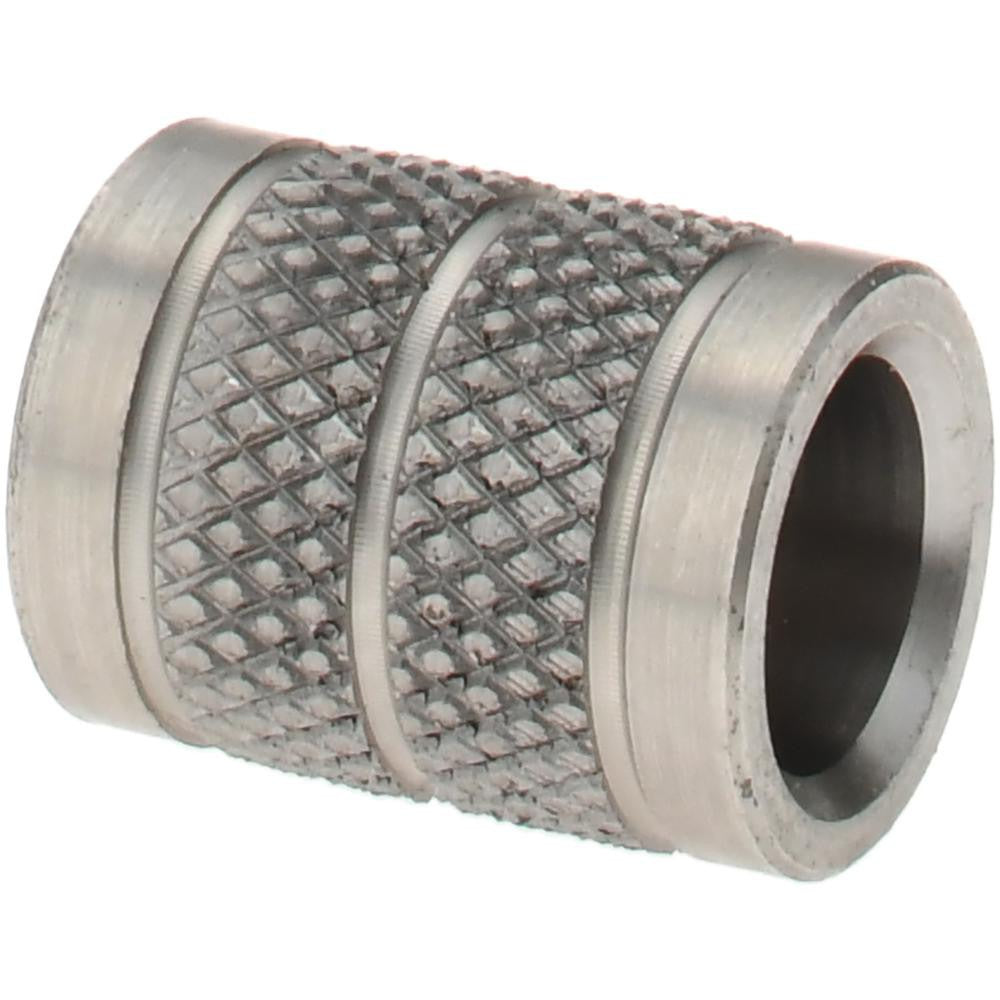

Gibraltar RC-500-G Quick Release Pin Receiver Cap

Product Description

The GIBRALTAR RC-500-G is a quick release pin receiver cap machined from 303 stainless steel. It accepts a 0.5-inch pin diameter, measures 1 inch in length, and has a 0.75-inch outside diameter. The receiver cap seats over a quick release pin end to protect the pin tip and retain the locking mechanism in position. It is a standard hardware component used in mechanical assemblies, industrial equipment, and structural fixtures where quick-disconnect pin fastening is required. Maintenance technicians and mechanical assemblers install this cap as part of routine pin-fastener setups.

This receiver cap is suited for applications where a quick release pin must be secured and capped at the receiver end. Common uses include jig and fixture assemblies, agricultural equipment linkages, material handling frames, and structural connection points that require fast pin removal without tools. Its 303 stainless steel construction provides corrosion resistance appropriate for both indoor and light outdoor industrial environments.

Key Features

• Accepts 0.5-inch pin diameter for a defined, secure fit
• 1-inch overall length and 0.75-inch outside diameter for compact installation
• Grade 303 stainless steel construction for corrosion resistance and machinability
• Designed for use with standard quick release pin systems in mechanical assemblies
• Lightweight at 0.25 pounds for minimal added load in assemblies

Compatibility

Designed as an OEM-style replacement or standard hardware fit for quick release pin receiver cap applications requiring a 0.5-inch pin diameter and 0.75-inch outside diameter in 303 stainless steel.

Installation Notes

This component is installed by maintenance technicians and mechanical assemblers working on pin-fastened structural or equipment assemblies. Ensure the mating quick release pin is fully disengaged and the assembly is depressurized or de-energized before replacing or installing the receiver cap. Verify pin diameter and OD clearance against your assembly drawings before installation. No special tools are required, but confirm the cap seats fully and the pin locking mechanism functions correctly after assembly.
