Gibraltar PR38-PT-G Pull Ring Plunger 3/8-16 Steel

Product Description

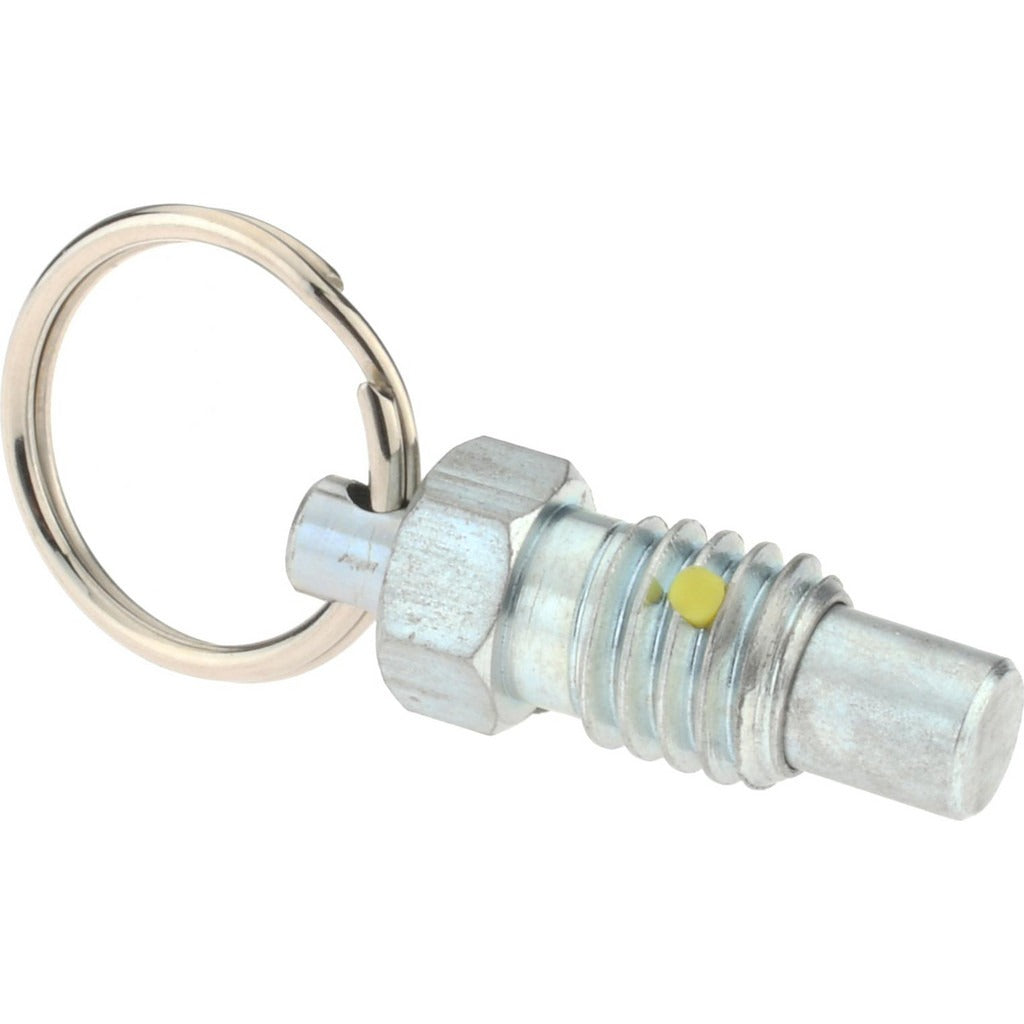

The GIBRALTAR PR38-PT-G is a steel pull ring plunger designed for use in indexing, positioning, and light-duty workholding applications. The plunger body threads into a tapped hole via a 3/8-16 thread and delivers a spring-loaded nose that retracts when the pull ring is engaged. Initial end force is 0.75 pounds, rising to a 3 pound final end force at full compression. The plunger diameter measures 0.25 inches with a projection of 0.28 inches. Total plunger length is 0.82 inches. A locking element is incorporated into the design, allowing the plunger to be held in the retracted position when needed. This part is installed by machinists, toolmakers, and maintenance technicians.

The PR38-PT-G is suited for machine fixtures, jigs, tooling plates, and equipment panels where repeatable positioning or light detent action is required. The pull ring allows manual retraction without additional tools. Its compact form factor fits standard tapped holes in steel, aluminum, and cast iron assemblies. The non-locking plunger type allows free spring return under normal operation, while the locking element provides the option to hold the plunger retracted during loading or setup sequences.

Key Features

• 3/8-16 thread for installation into standard tapped holes
• Pull ring for tool-free manual plunger retraction
• Non-locking plunger type with integrated locking element to hold retracted position
• Spring force range: 0.75 pounds initial to 3 pounds final end force
• Steel construction for durability in industrial environments
• Compact body length of 0.63 inches with 0.44 inches length under head

Compatibility

Designed as a standard 3/8-16 threaded pull ring spring plunger for use in machine fixtures, jigs, tooling assemblies, and equipment panels requiring light-duty indexing or positioning.

Installation Notes

Installation requires a properly tapped 3/8-16 hole in the mating component. A wrench applied to the 0.38 inch hex is used to thread the body in to the specified torque per fixture design requirements. Ensure the mating bore and thread are clean and free of chips before installation. Power down or de-energize any equipment before servicing fixtures that incorporate this plunger.
