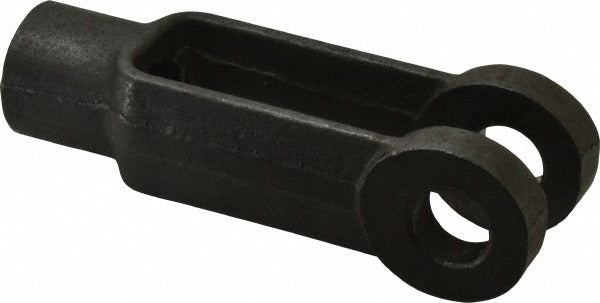

Gibraltar P69136-10BGB Tapped Yoke 3/4-10 Thread

Product Description

The GIBRALTAR P69136-10BGB is a tapped yoke fitting used in mechanical linkage and structural support applications across trade and industrial settings. Machined from carbon steel, this yoke accepts a 3/4-10 threaded rod or shaft and features a 1-1/2 inch yoke width with a 5/8 inch hole diameter for pin or bolt connection. Overall length measures 4 inches, with a neck diameter of 1-1/8 inches and a neck length of 1-1/4 inches. The hole center-to-neck dimension is 2-3/4 inches, and yoke arm height is 1-3/8 inches. These dimensions make it suitable for precise alignment in clevis-style linkage assemblies.

This tapped yoke is commonly used in HVAC, plumbing, and mechanical systems where threaded rod connections are required for actuators, damper linkages, valve assemblies, and similar mechanical control components. It is suited for both light commercial and residential installations where a durable, carbon steel yoke fitting is needed to complete or repair a mechanical linkage. The single-piece construction and standard thread pitch simplify integration into existing assemblies.

Key Features

• 3/4-10 thread pitch for compatibility with standard threaded rod stock
• 1-1/2 inch yoke width accommodates typical clevis pin sizes
• 5/8 inch hole diameter for secure pin or bolt connection
• Carbon steel construction for durability in mechanical linkage applications
• 4 inch overall length with 2-3/4 inch hole center-to-neck dimension for precise fit
• Compact design at 0.05 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement or direct-fit component for mechanical linkage assemblies requiring a 3/4-10 tapped yoke in carbon steel construction.

Installation Notes

Installation is typically performed by a licensed HVAC technician or mechanical contractor. De-energize and lock out all associated equipment before servicing any linkage or actuator assembly. Verify thread engagement depth and confirm the connecting pin or bolt is properly retained with a cotter pin or equivalent fastener before returning the system to service. Follow applicable mechanical and building codes for the jurisdiction.
