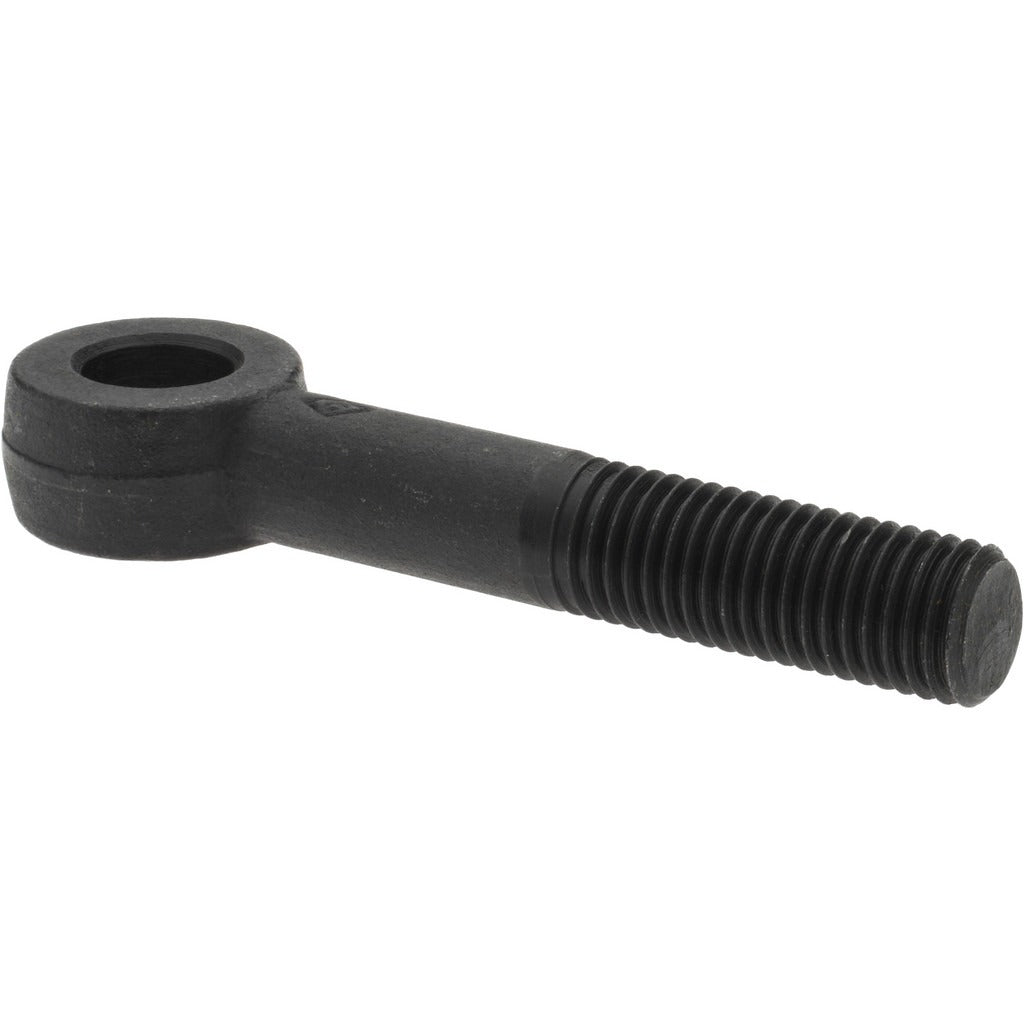

Gibraltar P181304-3/4GB Steel Eye Hole Rod End 3/4-10

Product Description

The GIBRALTAR P181304-3/4GB is a steel eye hole head rod end designed for mechanical linkage and pivot applications in industrial and trade settings. Manufactured from C-1030 grade steel with a black oxide finish, this rod end provides corrosion resistance and durability under load. The 3/4-10 thread size and 2-inch thread length allow direct installation into compatible threaded shafts or clevises. With a shank diameter of 0.75 inches and a hole center-to-end measurement of 4.5 inches, it suits a range of linear motion and control rod configurations. Machinists, millwrights, and maintenance technicians are the primary installers for this type of hardware.

This rod end is suited for use in HVAC actuator linkages, mechanical control systems, conveyor assemblies, and general industrial pivot or tie-rod applications where a fixed eye hole head is required. The inch-system dimensions and standard UNC 3/4-10 thread make it compatible with common domestic fastener and shaft hardware. The black oxide finish is appropriate for indoor and light-duty protected outdoor environments where moderate corrosion resistance is acceptable.

Key Features

• C-1030 grade steel construction for reliable strength in mechanical linkage applications
• Black oxide finish provides corrosion resistance and reduces light reflection
• 3/4-10 UNC thread with 2-inch thread length for secure, adjustable installation
• Eye hole head with 1.5-inch outside diameter and 0.75-inch hole diameter for clevis and pin connections
• 4.5-inch hole center-to-end length suits medium-reach control rod configurations
• Sold individually, no minimum quantity requirement beyond one unit

Compatibility

Designed as a standard inch-series eye hole rod end for use in mechanical linkage, actuator, and pivot assemblies that accept a 3/4-10 threaded male rod end with a 0.75-inch shank diameter.

Installation Notes

Installation is typically performed by a millwright, maintenance mechanic, or qualified HVAC technician depending on the application. Ensure all connected linkage, actuator, or shaft components are de-energized and mechanically locked out before installation or removal. Thread engagement should meet a minimum standard per applicable mechanical codes. Inspect the eye hole bore and connecting pin for proper fit and alignment before placing the assembly under load.
