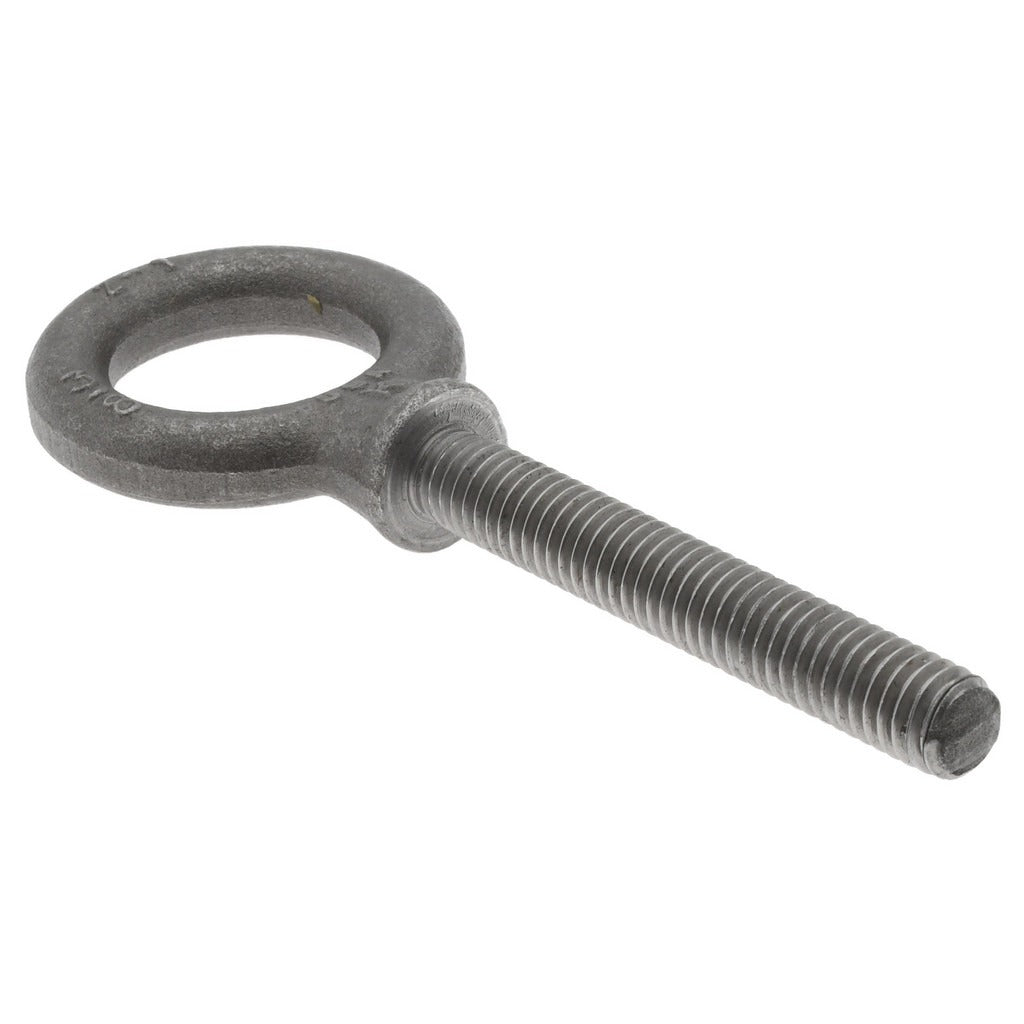

Gibraltar P15738SPGB Fixed Shoulder Eye Bolt 1200 Lb

Product Description

The GIBRALTAR P15738SPGB is a fixed lifting eye bolt with a shoulder base, designed for overhead lifting and rigging applications in industrial and trade environments. Built from Grade 1030 steel with a zinc finish, this eye bolt carries a rated lifting capacity of 1,200 pounds. The 3/8-16 fully threaded shank measures 2.5 inches in length, and the shoulder base helps distribute load and prevent the eye from pulling through the mounting surface. Licensed riggers and maintenance trades install this type of hardware in mechanical rooms, equipment mounting, and structural rigging setups where a permanent, load-rated anchor point is required.

This eye bolt is suited for fixed-load overhead lifting in residential and light commercial maintenance work, equipment installation, and general rigging tasks. The shouldered design seats flush against the mounting surface, reducing side-load stress on the threaded connection. With a 3/4-inch eye inside diameter, it accepts standard hooks and shackles used in typical rigging configurations. It is sold individually and is appropriate wherever a compact, threaded anchor point rated for 1,200 pounds is required.

Key Features

• 1,200 lb rated lifting capacity for overhead and rigging applications
• Shouldered base design distributes load and improves pull-through resistance
• Fully threaded 3/8-16 shank, 2.5 inches in length
• Grade 1030 steel construction for reliable tensile strength
• Zinc finish provides corrosion resistance in indoor and light-duty environments
• 3/4-inch eye inside diameter accepts standard hooks and shackles

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use in any application requiring a 3/8-16 threaded lifting anchor point rated to 1,200 pounds.

Installation Notes

Installation is performed by qualified riggers or maintenance trades in accordance with applicable ASME B30 rigging standards and local safety regulations. Always power down or de-energize equipment and relieve any mechanical load before installing or removing lifting hardware. Thread the eye bolt fully into a properly tapped hole or through a fastened assembly until the shoulder seats flush against the mounting surface. Never exceed the rated lifting capacity, and inspect the eye bolt for deformation or thread damage before each use.
