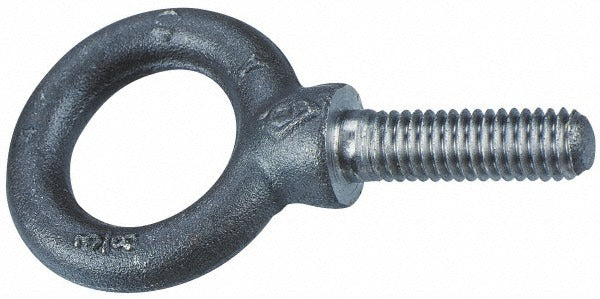

Gibraltar P14702LTGB Fixed Lifting Eye Bolt 11600 Lb

Product Description

The GIBRALTAR P14702LTGB is a fixed lifting eye bolt with shoulder, designed for heavy-duty rigging and lifting applications in industrial and construction environments. Built from Grade 8620 alloy steel, this eye bolt delivers a rated lifting capacity of 11,600 pounds. The fully threaded shank measures 1-13/16 inches in length with a 1-2-1/2 thread size, and the shoulder design helps distribute load and maintain proper alignment during vertical lifts. Installation and removal are performed by qualified rigging professionals following applicable industry standards.

This eye bolt is suited for use in fabrication shops, machinery moving, structural lifting, and general industrial rigging where a fixed orientation is required. The shouldered design seats flush against the load surface when properly installed, providing a stable and consistent load path. It is intended for straight vertical lifts unless rated otherwise by the manufacturer. Installers working in overhead lifting applications should follow ASME B30.26 and applicable OSHA rigging standards.

Key Features

• 11,600 lb rated lifting capacity for heavy-duty industrial use
• With-shoulder design promotes proper seating and load distribution against mating surface
• Grade 8620 alloy steel construction for high tensile strength
• Fully threaded shank, 1-13/16 inches in length, 1-2-1/2 thread size
• Eye inside diameter of 1-13/16 inches accommodates standard rigging hardware
• Fixed eye orientation — designed for vertical or in-line loading

Compatibility

Designed as a fixed lifting eye bolt for use in standard inch-system threaded holes requiring a 1-2-1/2 thread size. Consult the load chart and applicable rigging standards to confirm fitment and capacity for the intended application.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with ASME B30.26 overhead lifting hardware requirements. Thread the eye bolt fully into the tapped hole until the shoulder seats flush and firm against the load surface before applying any load. Never side-load a fixed eye bolt beyond its rated angular capacity, and inspect threads and the eye for deformation, cracks, or corrosion before each use. Always de-energize and secure equipment before installing or removing lifting hardware on machinery.
