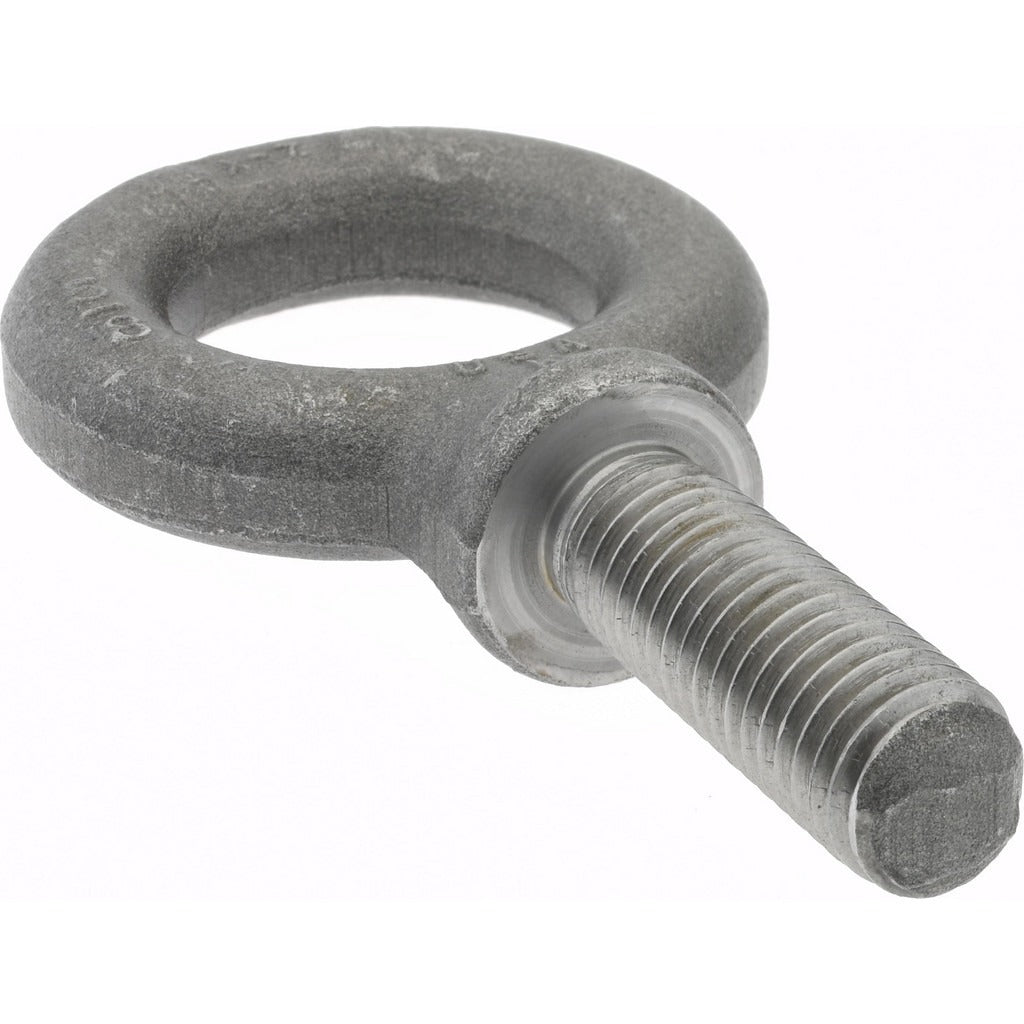

Gibraltar P14661GB Fixed Shoulder Eye Bolt 4000 Lb

Product Description

The GIBRALTAR P14661GB is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and rigging applications in industrial and construction environments. It features a 5/8-11 thread size with full threading along a 1.75-inch shank length, and is rated for a lifting capacity of 4,000 pounds. Constructed from Grade 1030 steel, it delivers the tensile strength required for demanding load-handling tasks. This eye bolt is installed by rigging crews, millwrights, and maintenance mechanics wherever a secure, fixed lifting point is needed.

This eye bolt is suited for use in residential construction, commercial building, and industrial maintenance settings where a fixed, non-swivel lifting point is required. The shouldered base seats flush against the load surface to distribute stress and reduce the risk of bending at the thread entry point. It is commonly used with hooks, shackles, and hoist chains in single-leg vertical lift configurations. Always consult applicable load charts and rigging standards before use, as working load limits vary by lift angle.

Key Features

• 4,000 lb rated lifting capacity for heavy-duty overhead rigging
• Shouldered base distributes load stress at the contact surface
• 5/8-11 thread size for standard bolt-hole compatibility
• Fully threaded shank along the full 1.75-inch length for maximum engagement
• Grade 1030 steel construction for high tensile strength
• Fixed eye orientation — suited for straight vertical lifts

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use with standard 5/8-11 threaded holes in steel, cast iron, and other structural materials requiring a secure overhead lifting attachment point.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30.26 rigging hardware standards. Thread the bolt fully into the tapped hole until the shoulder seats flush and firm against the load surface before applying any load. Never exceed the rated working load limit, and de-rate capacity when lifting at angles other than true vertical. Inspect the eye bolt for deformation, cracks, or thread damage before each use and remove from service if any defects are found.
