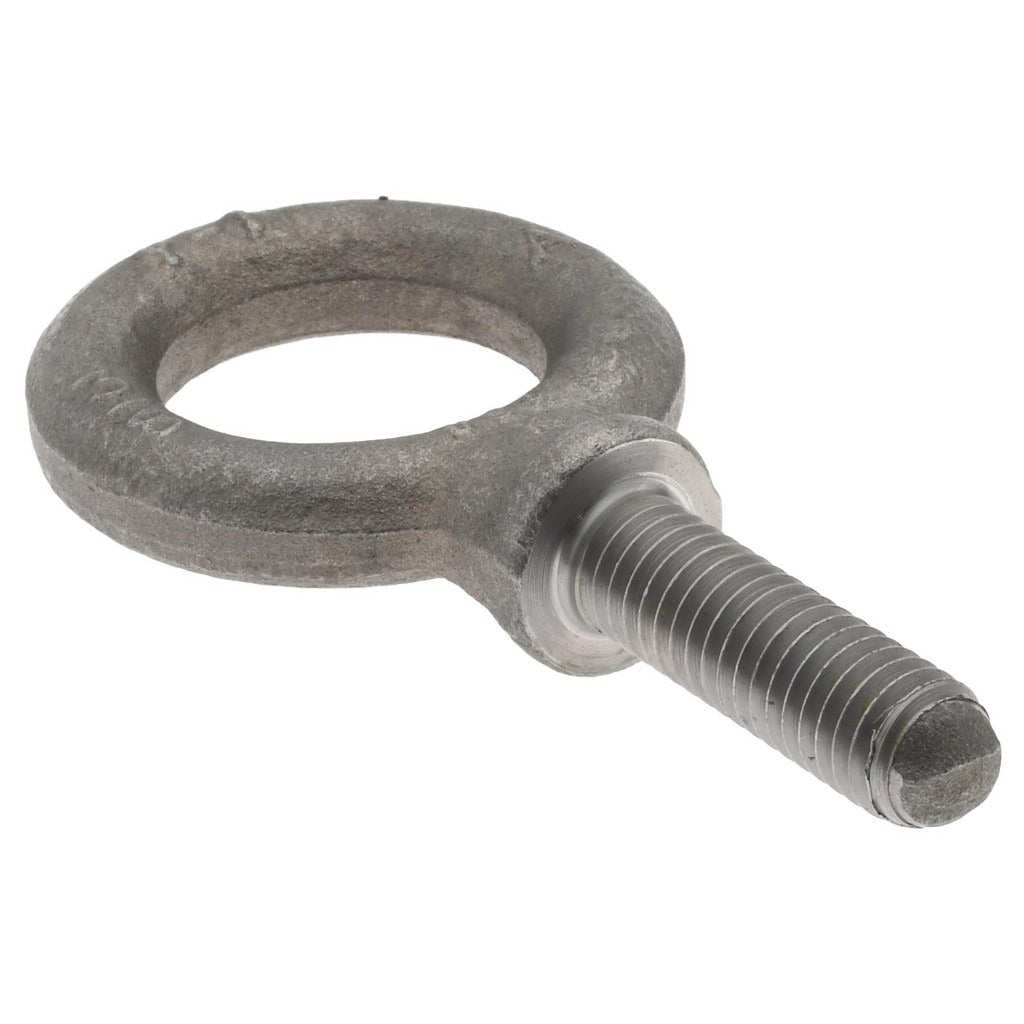

Gibraltar P14631LTGB Fixed Shoulder Eye Bolt 1480 Lb

Product Description

The GIBRALTAR P14631LTGB is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Built from Grade 8620 alloy steel, it delivers a rated lifting capacity of 1,480 pounds and features a fully threaded 3/8 inch shank. The shoulder design seats the bolt flush against the work surface, reducing load-induced bending stress at the thread engagement point. This bolt is a standard rigging component installed by millwrights, maintenance mechanics, and rigging crews where a secure, fixed anchor point is required for vertical or in-line lifts.

The P14631LTGB is suited for use in manufacturing facilities, equipment maintenance operations, and structural rigging setups that require a reliable threaded lifting point. The shoulder configuration makes it appropriate for applications where the eye bolt must bear against a flat surface to maintain load alignment. The fully threaded shank provides positive engagement across the full 1-1/4 inch thread length, making it compatible with standard fastener hardware in 3/8 inch threaded holes or through-bolt installations with a nut.

Key Features

• Rated lifting capacity of 1,480 pounds for vertical in-line loads
• Grade 8620 alloy steel construction for high strength and toughness
• Shoulder design seats against work surface to resist bending stress at thread
• Fully threaded shank ensures maximum thread engagement over the full 1-1/4 inch shank length
• 1 inch eye inside diameter accommodates standard hooks, shackles, and rigging hardware
• Inch measurement system; compatible with standard 3/8 inch fastener tooling

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use in 3/8 inch threaded fastener applications requiring a rated lifting anchor point in industrial and commercial rigging setups.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel following applicable ASME B30.26 and OSHA rigging standards. Thread the bolt fully into a properly tapped hole or through-bolt assembly until the shoulder seats flush and firm against the mounting surface before applying any load. Never apply angular loads to a fixed eye bolt rated for vertical lift only, as this significantly reduces safe working load. De-energize and isolate all equipment before installing or removing lifting hardware on machinery.
