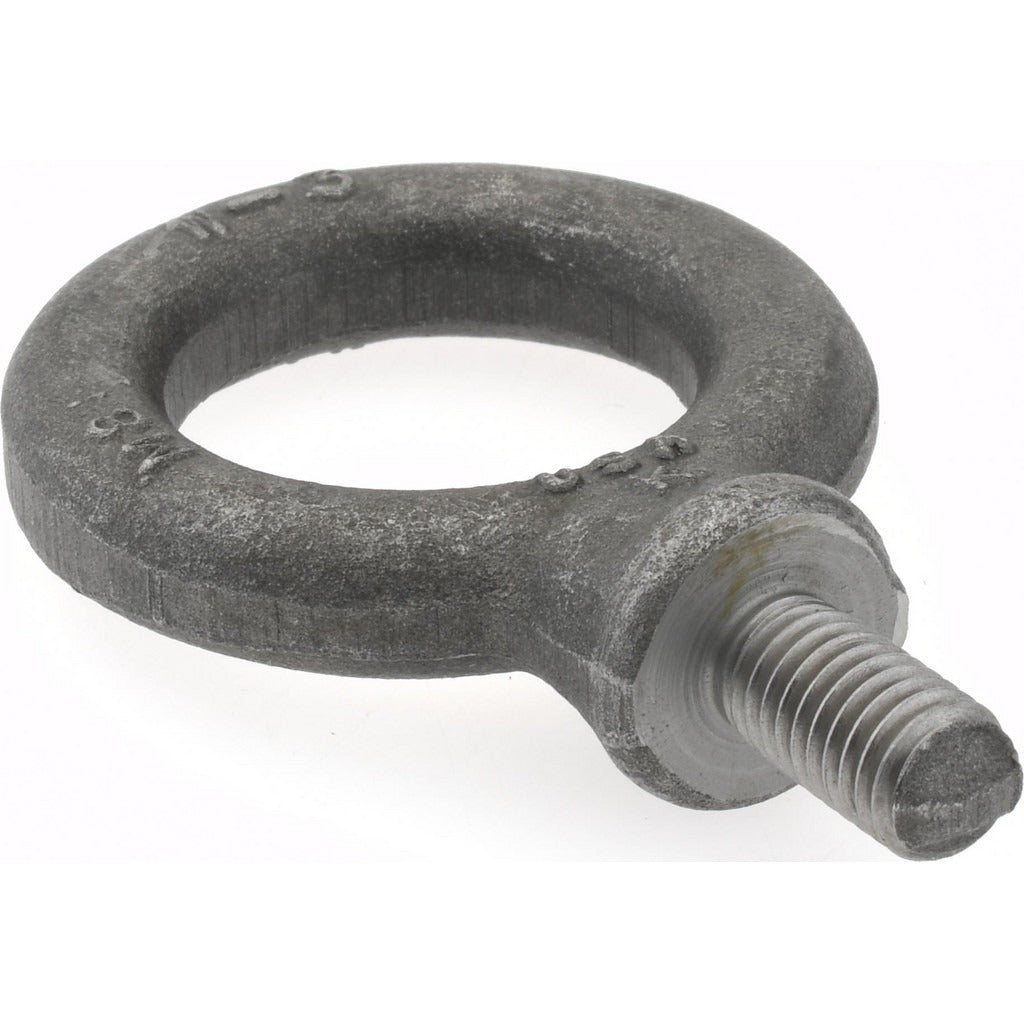

Gibraltar P14008MGB Fixed Lifting Eye Bolt M8 X 1.25 1100 Lb

Product Description

The GIBRALTAR P14008MGB is a fixed lifting eye bolt with shoulder, designed for vertical overhead lifting applications in industrial and commercial environments. Built from Grade 1030 steel, this eye bolt features an M8 x 1.25 metric thread and a fully threaded shank, rated to a lifting capacity of 1,100 lb (500 kg). The shoulder design provides a positive bearing surface against the workpiece, distributing load more evenly and reducing stress at the thread entry point. It is installed by maintenance technicians, millwrights, and rigging professionals wherever a fixed, reliable lift point is required on machinery, equipment, or structural assemblies.

This eye bolt is suited for metric-threaded lift point applications in manufacturing facilities, machine shops, and equipment service environments. The fixed eye orientation and shoulder configuration make it appropriate for straight vertical pulls. The fully threaded shank allows engagement across a range of material thicknesses up to the 15 mm thread length. Typical installations include machinery lifting lugs, equipment rigging points, and jig or fixture tie-down anchors where a permanent metric fastener-style lift point is needed.

Key Features

• 1,100 lb (500 kg) lifting capacity for reliable overhead rigging in vertical pull applications
• Shoulder design provides a positive load-bearing surface and reduces thread stress concentration
• M8 x 1.25 metric thread for compatibility with standard metric-threaded lift point locations
• Fully threaded shank engages the full available 15 mm thread length
• Grade 1030 steel construction for strength in industrial service conditions
• Fixed eye orientation — intended for in-line vertical lifting loads only

Compatibility

Designed as an OEM-style fixed lifting eye bolt for metric-threaded applications requiring an M8 x 1.25 lift point with a shoulder-bearing surface on industrial machinery or equipment.

Installation Notes

Installation is performed by qualified rigging, maintenance, or millwright personnel following applicable ASME B30.26 or OSHA rigging safety standards. De-energize and lock out all associated equipment before installing or removing lifting hardware. Thread the eye bolt fully into a properly tapped M8 x 1.25 hole until the shoulder seats flush and firm against the workpiece surface — never suspend a load from a partially seated or improperly shouldered eye bolt. Fixed eye bolts must be loaded in the plane of the eye and in straight vertical pulls only; side loading or angular loading is not rated for this configuration.
