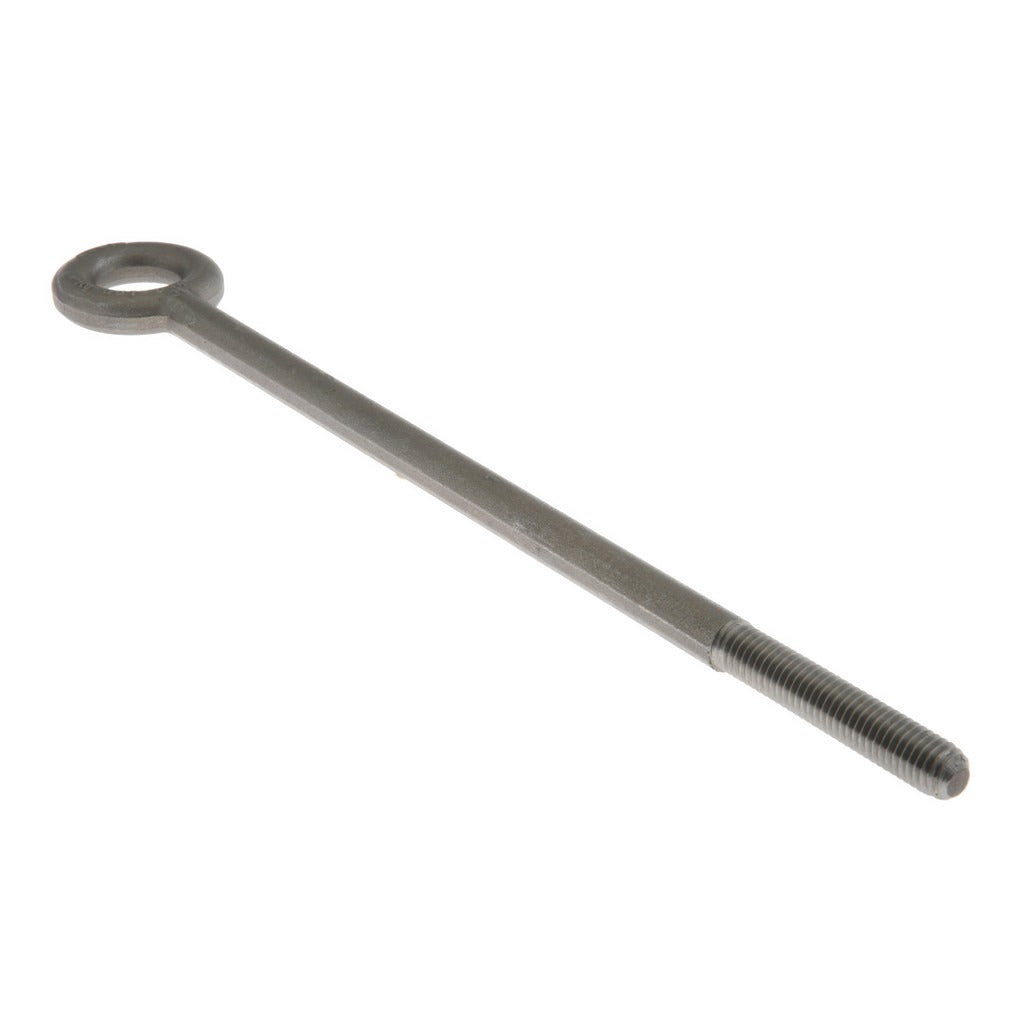

Gibraltar P12448GB Lifting Eye Bolt 2400 Lb 1/2-13 Thread

Product Description

The GIBRALTAR P12448GB is a shoulderless lifting eye bolt rated for 2,400 pounds of lifting capacity. It is designed for overhead lifting and rigging applications where a threaded anchor point is required. The bolt features a 1/2-13 thread size with 2.5 inches of thread length on a 12-inch shank, providing reach into deep or thick mounting surfaces. Constructed from C-1030/C-1035 grade steel, it delivers the structural integrity required for industrial and construction lifting tasks. Licensed riggers, millwrights, and maintenance mechanics are the typical installers of this hardware.

This eye bolt is suited for use in manufacturing facilities, warehouses, construction sites, and mechanical rooms where equipment or structural components need to be lifted or suspended. The partially threaded shank allows secure engagement through standard tapped holes or with a nut on the back side of the mounting surface. Because this is a shoulderless design, it is intended for in-line loading applications only and should not be used for angular or side-pull loads without re-evaluating the rated capacity.

Key Features

• 2,400 lb rated lifting capacity for reliable overhead rigging use
• Shoulderless design optimized for straight, in-line vertical loading
• 1/2-13 thread size with 2.5 inches of thread engagement length
• 12-inch shank length accommodates deep or thick mounting substrates
• C-1030/C-1035 grade steel construction for high tensile strength
• Partially threaded shank reduces weight while maintaining thread integrity

Compatibility

Designed for use in standard 1/2-13 tapped holes or with a compatible nut in through-hole mounting configurations across industrial, construction, and mechanical service applications.

Installation Notes

Installation should be performed by a qualified rigger or millwright following applicable ASME B30.26 rigging hardware standards. Always ensure the threaded hole or fastener is rated for the intended load before use. Shoulderless eye bolts must only be loaded in-line with the shank axis — angular loading on a shoulderless design significantly reduces safe working load and can cause failure. Inspect the eye and shank for deformation, cracks, or corrosion before each lift.
