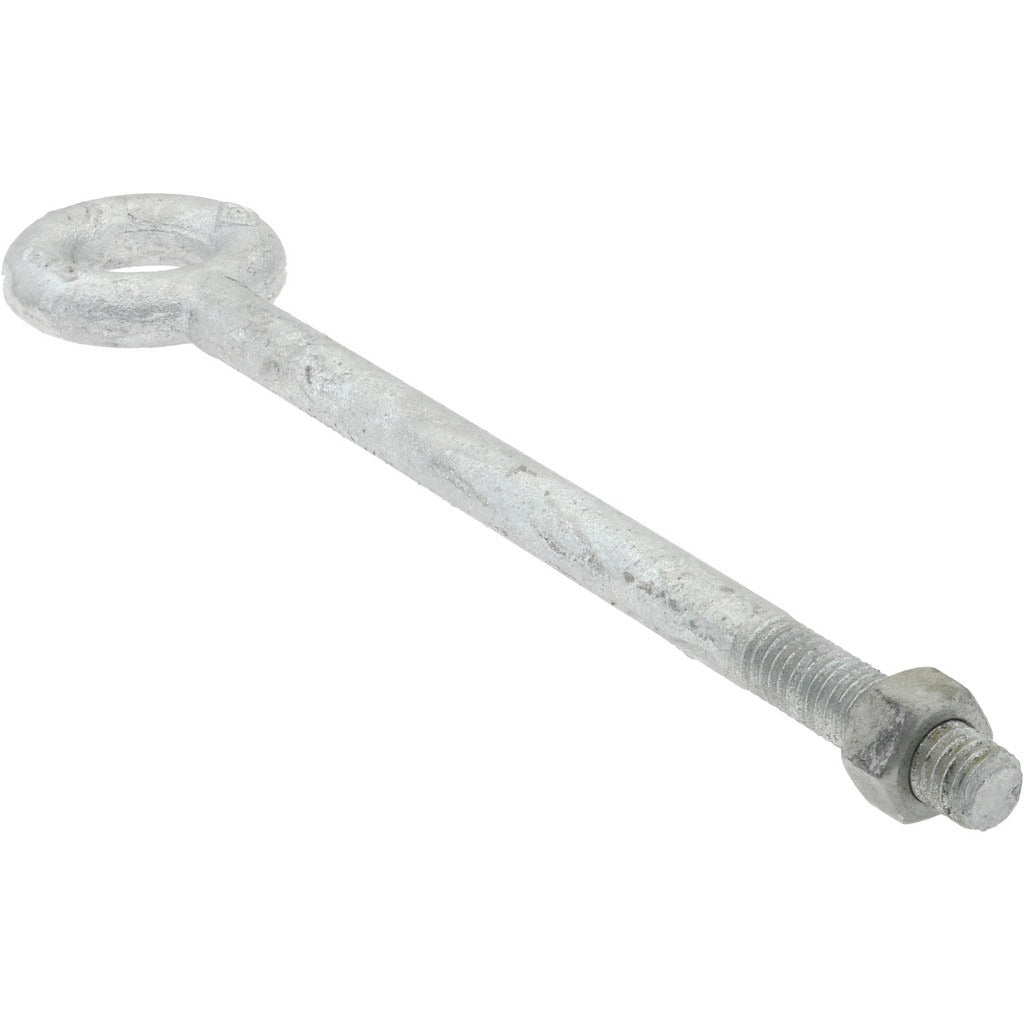

Gibraltar P12336GB Fixed Eye Bolt 1200 Lb 3/8-16 Thread

Product Description

The GIBRALTAR P12336GB is a fixed lifting eye bolt designed for vertical load rigging in industrial, mechanical, and construction applications. Built from Grade 1030 steel with a zinc-plated finish, this bolt provides corrosion resistance and structural durability under rated load conditions. The 3/8-16 partially threaded shank measures 6 inches in length with 1-1/2 inches of thread engagement. The eye features a 3/4-inch inside diameter and a 1-1/2-inch outside diameter, sized to accept standard shackles and rigging hooks. Rated at 1,200 pounds lifting capacity, this bolt is suited for straight, in-line vertical lifts only. It is installed by millwrights, riggers, and maintenance mechanics across a wide range of overhead lifting tasks.

This eye bolt is intended for use in fixed lifting applications where a shoulder-less configuration is acceptable and the load is applied along the bolt axis. Typical installations include lifting machinery components, securing rigging points on steel structures, and anchoring loads to threaded anchor points. The without-shoulder design means this bolt is rated for in-line vertical loads only and must not be subjected to angular or side loading. Installation in fabricated assemblies, jigs, and portable lifting fixtures is common across manufacturing and field service environments.

Key Features

• 1,200 lb vertical lifting capacity rated for in-line loads
• Grade 1030 steel construction for reliable structural integrity
• Zinc-plated finish for corrosion resistance in general-duty environments
• Partially threaded shank: 6-inch shank length with 1-1/2 inches of thread
• 3/8-16 thread size for compatibility with standard threaded anchor points
• Eye inside diameter of 3/4 inch accommodates common shackles and hooks

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use with 3/8-16 threaded anchor points in standard inch-measurement rigging and lifting applications.

Installation Notes

Installation is performed by qualified riggers or maintenance mechanics following applicable ASME B30.26 rigging hardware standards. Thread the bolt fully into the anchor point so that the eye shank seats flush against the mounting surface before applying any load. This without-shoulder design is rated for vertical in-line loads only — do not apply angular, lateral, or eccentric loading. Inspect the eye bolt and threaded anchor point for damage or wear before each use.
