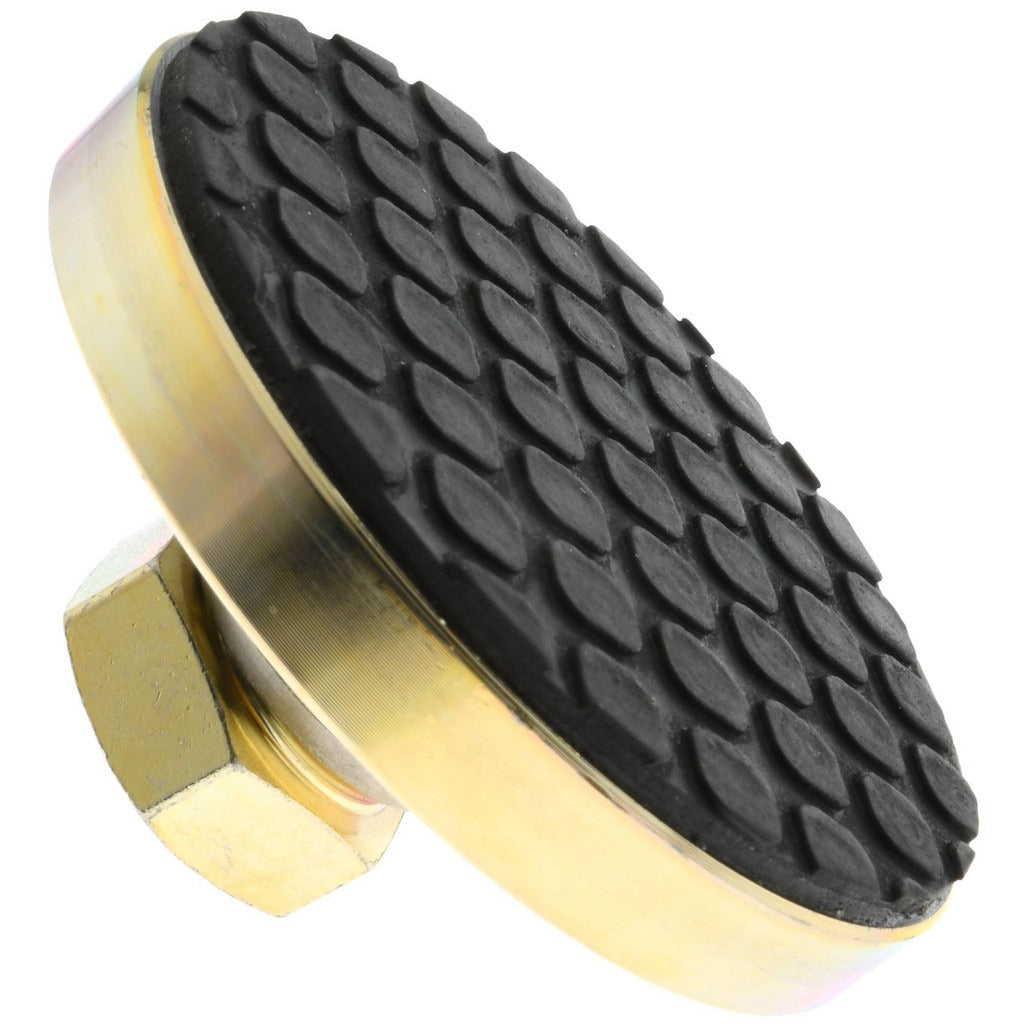

Gibraltar NTS-5Z-G Tapped Pivotal Leveling Mount

Product Description

The GIBRALTAR NTS-5Z-G is a tapped pivotal leveling mount designed for heavy industrial and commercial equipment positioning applications. The pivotal pad design allows the mount to self-adjust to uneven floor surfaces, distributing load evenly across the 4-inch diameter steel base pad. Rated for a load capacity of 15,000 pounds, this mount uses a zinc stud with a 1-8 thread size and a 1-3/8 inch hex for installation and adjustment. The overall length is 1-7/8 inches. Mechanical contractors, millwrights, and equipment installers rely on this style of mount to level machinery, frames, and industrial enclosures on concrete or structural flooring.

The NTS-5Z-G is suited for use in commercial and industrial settings where heavy equipment requires stable, adjustable floor support. Typical applications include leveling machine bases, conveyor frames, fabrication equipment, electrical enclosures, and structural supports. The tapped style accommodates a threaded stud welded or fastened directly into the equipment base plate, making it a standard choice for OEM equipment builders and field service technicians performing equipment installation or relocation.

Key Features

• 15,000 lb load capacity for heavy-duty industrial equipment support
• Pivotal pad design self-adjusts to uneven or sloped floor surfaces
• 4-inch diameter steel base pad for broad load distribution
• Zinc stud with 1-8 thread size for corrosion resistance and secure engagement
• 1-3/8 inch hex size for standard wrench adjustment
• Compact 1-7/8 inch overall length for low-profile installations

Compatibility

Designed as an OEM-style tapped pivotal leveling mount for heavy industrial and commercial machinery bases requiring a 1-8 threaded stud interface.

Installation Notes

Installation is typically performed by millwrights or mechanical contractors during equipment commissioning or relocation. De-energize and lock out all equipment before placing or adjusting leveling mounts under loaded machinery. Use a properly sized 1-3/8 inch wrench or socket to adjust the mount height and achieve level per equipment manufacturer specifications. Consult applicable building and equipment codes for floor loading and anchor requirements before final placement.
