Gibraltar NSW-0Z-G Studded Pivotal Leveling Mount 200 Lb

Product Description

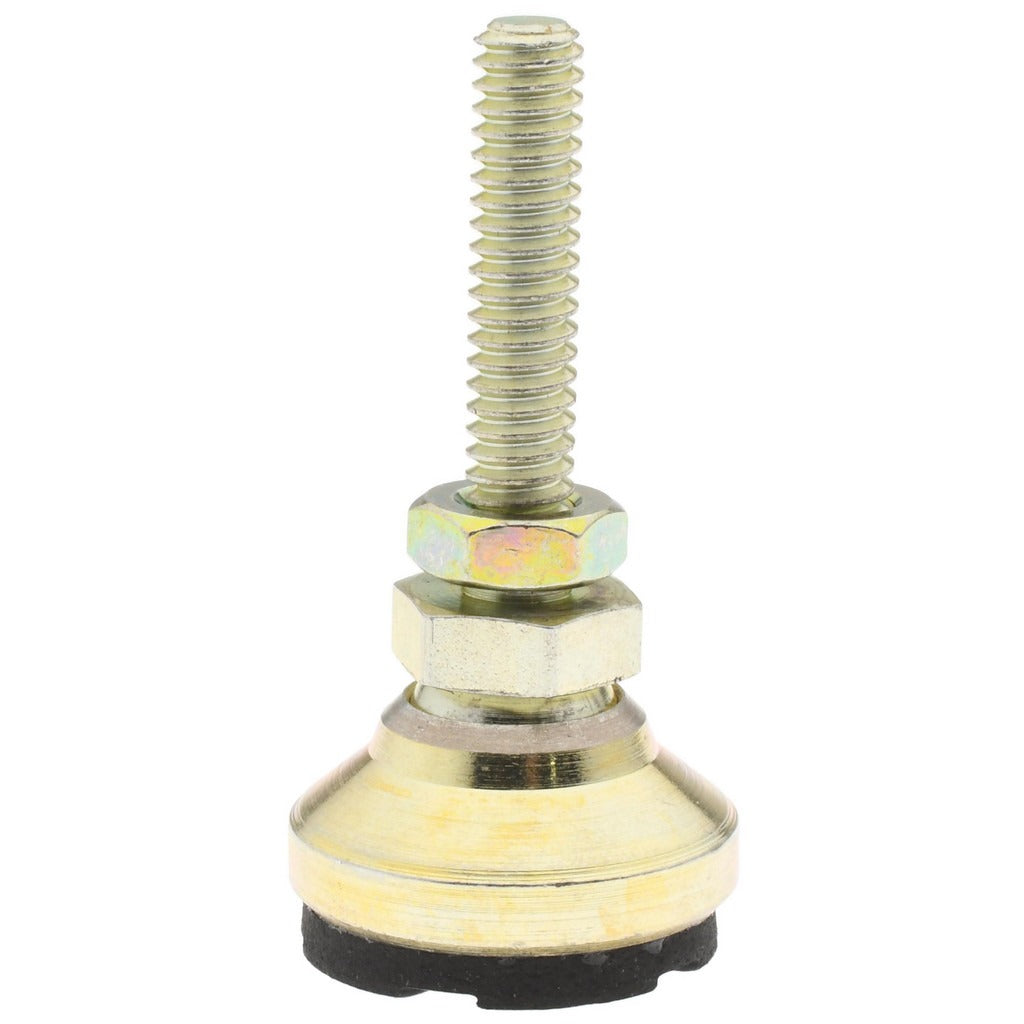

The GIBRALTAR NSW-0Z-G is a studded pivotal leveling mount designed to provide adjustable, stable support for machinery, equipment, and structural assemblies. It features a steel stud and a steel pad base, offering a load capacity of 200 pounds. The pivoting action of the pad allows the mount to compensate for uneven surfaces or slight angular misalignment, maintaining solid contact with the floor or mounting surface. At 1 inch in base diameter and 1-15/16 inches in length, it is a compact unit suited for tight installation spaces. Machinists, millwrights, and maintenance technicians typically install this type of hardware during equipment leveling and alignment operations.

This leveling mount is used in light industrial, commercial, and maintenance applications where stationary equipment requires precise leveling or vibration isolation. The 1/4-20 bolt thread size is a common standard thread, making the NSW-0Z-G compatible with a wide range of equipment frames, machine bases, and fabricated steel assemblies. It is well suited for production machinery, test benches, conveyor supports, and similar installations where adjustable floor-contact hardware is required.

Key Features

• 200 pound load capacity supports light-duty equipment and machine bases
• Pivotal pad design compensates for uneven or angled mounting surfaces
• Steel stud and steel pad construction for durability in industrial environments
• 1/4-20 bolt thread size fits a wide range of standard equipment frames
• Compact 1 inch base diameter suits tight installation clearances
• Overall length of 1-15/16 inches provides a low-profile mounting profile

Compatibility

Designed as an OEM-style leveling mount for equipment frames and machine bases using a standard 1/4-20 threaded mounting hole.

Installation Notes

Installation is typically performed by a millwright, maintenance technician, or mechanical contractor. Power down and de-energize any equipment before installing or adjusting leveling mounts. Use the appropriate thread-engagement depth to avoid stripping the stud or base threads, and verify that the total load across all mount points does not exceed the rated capacity per mount. A level and torque wrench are standard tools for final alignment verification.
