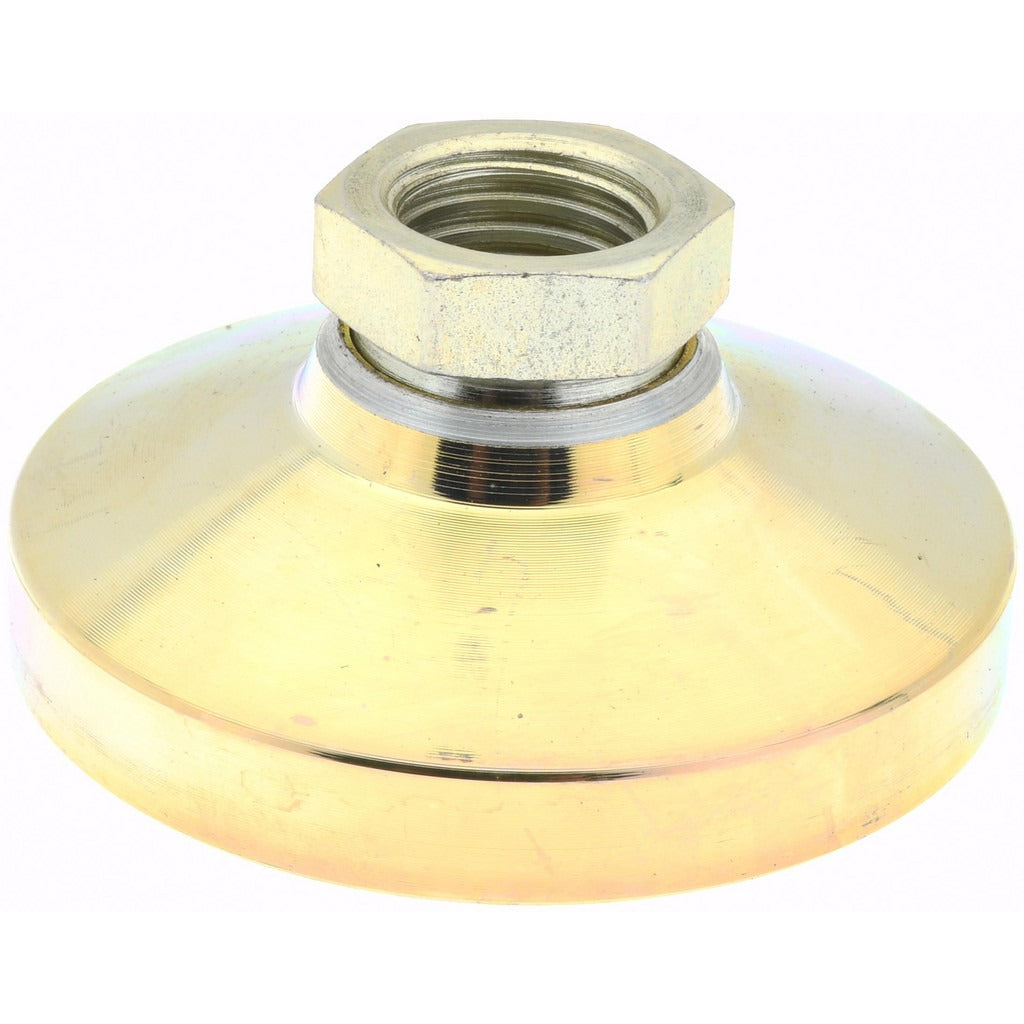

Gibraltar MT-SW4-G Tapped Pivotal Leveling Mount M20

Product Description

The GIBRALTAR MT-SW4-G is a tapped pivotal leveling mount designed for industrial machinery and equipment positioning applications. It features an M20 threaded stud with a pivoting steel pad that self-adjusts to uneven floor surfaces, distributing load evenly and reducing stress on mounting points. The mount carries a static load capacity of 3,357 kilonewtons and is built entirely from steel for both the stud and pad components. It suits applications where precise leveling and vibration isolation are required on production floors, fabrication shops, and heavy equipment installations. Licensed millwrights, maintenance mechanics, and industrial installers are the primary trades that specify and install this hardware.

This leveling mount is suited for use under machine bases, industrial frames, conveyor supports, and similar equipment that requires stable, adjustable footing on concrete or structural steel surfaces. The pivotal pad design accommodates slight angular misalignment between the equipment base and the floor, making it practical for installations where floor surfaces are not perfectly flat. It is appropriate for both new equipment installations and retrofit leveling projects in manufacturing and processing environments.

Key Features

• Pivotal steel pad self-adjusts to uneven mounting surfaces for even load distribution
• M20 tapped stud for compatibility with standard metric machine bases and frames
• Steel pad and steel stud construction for durability under heavy static loads
• 76 mm base diameter provides stable footprint for leveling applications
• Overall installed length of approximately 38 mm suits low-profile mounting requirements
• 27 mm hex size allows adjustment with standard industrial wrenches

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, equipment bases, and structural frames using M20 metric threaded mounting points.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics as part of equipment commissioning or leveling procedures. Power down and lock out all associated equipment before adjusting or replacing leveling mounts under live machinery. Use a 27 mm wrench or appropriate spanner to set and lock the mount to the desired height and angle. Verify load ratings against total equipment weight before installation to confirm this mount is appropriate for the application.
