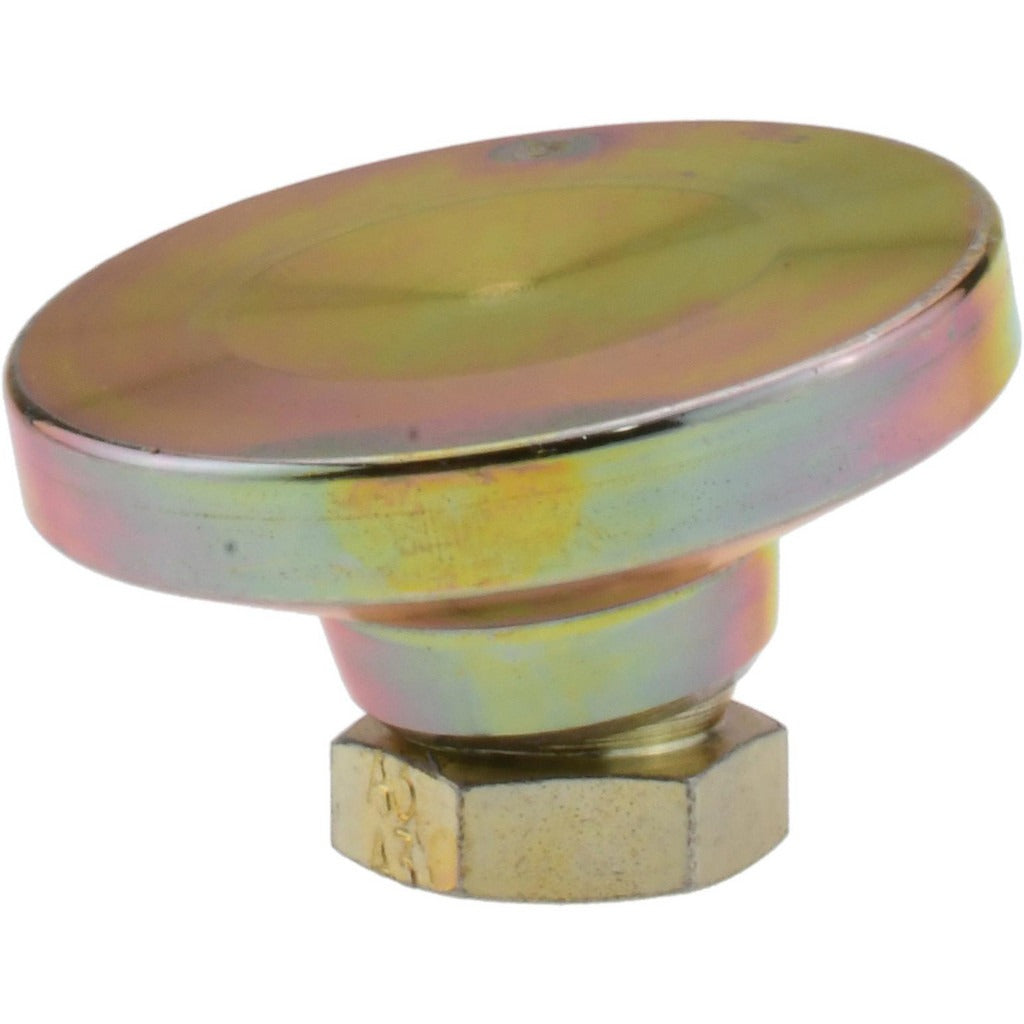

Gibraltar MT-SW2-G Tapped Pivotal Leveling Mount M12

Product Description

The GIBRALTAR MT-SW2-G is a tapped pivotal leveling mount designed for industrial equipment positioning and vibration isolation applications. It features an M12 threaded stud, a steel pad, and a steel stud construction rated for a load capacity of 2,268 kilograms. The pivotal design allows the base to self-level on uneven surfaces, distributing load evenly and reducing stress on equipment frames. With a base diameter of approximately 1.87 inches and an overall height of approximately 1.12 inches, this compact mount is suited for machinery that requires precise leveling within a tight footprint. Maintenance technicians and millwrights typically install these as part of equipment alignment procedures.

This leveling mount is used in commercial and industrial settings where heavy equipment must be stabilized on shop floors, production lines, or warehouse surfaces. Typical applications include CNC machines, conveyor systems, compressors, pumps, and other floor-mounted industrial equipment that requires height and angle adjustment during installation or routine maintenance. The pivotal action accommodates minor floor irregularities without shimming.

Key Features

• Tapped pivotal design allows self-leveling on uneven or slightly irregular floor surfaces
• M12 thread size for compatibility with standard metric equipment mounting points
• 2,268 kg load capacity supports heavy industrial equipment
• Steel stud and steel pad construction for durability in industrial environments
• Compact base diameter of approximately 1.87 inches minimizes required floor clearance
• Low-profile overall length of approximately 1.12 inches for tight installation spaces

Compatibility

Designed as a standard tapped pivotal leveling mount for industrial equipment with M12 metric threaded mounting points, suitable for floor-mounted machinery requiring adjustable leveling support.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance technicians during equipment placement or realignment. Power down and de-energize all connected equipment before adjusting or replacing leveling mounts. A 19 mm hex wrench is required for adjustment. Verify that the combined load does not exceed the rated capacity of all mounts used in the installation, and confirm that the floor anchor or equipment frame threads are in good condition before torquing into place.
