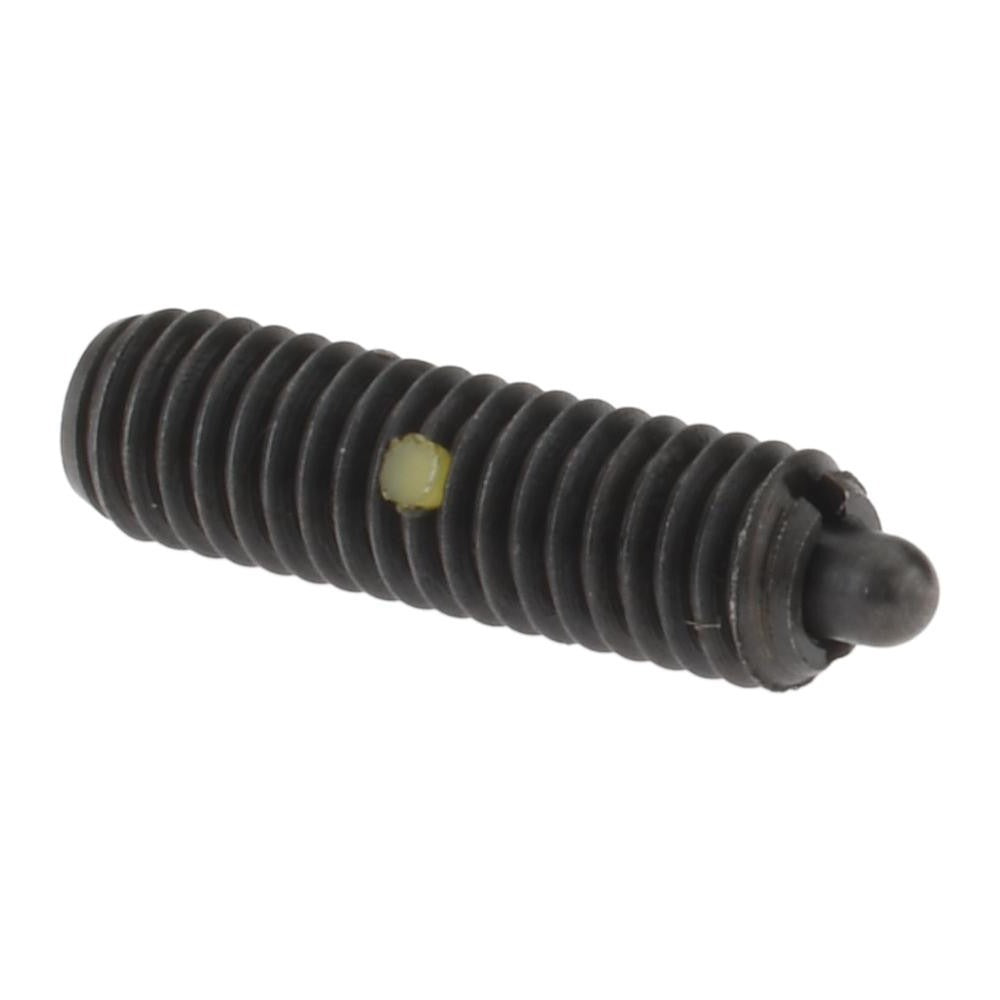

Gibraltar MSW10-4A-PT-G Threaded Spring Plunger M6 X 1

Product Description

The GIBRALTAR MSW10-4A-PT-G is a standard threaded spring plunger with an M6 x 1.00 thread size and a 0.787-inch thread length. The steel body houses a spring-loaded nose that delivers 1.57 pounds of initial end force and 4.50 pounds of final end force, providing consistent, repeatable positioning force in mechanical assemblies. A locking element secures the plunger in position after installation, preventing loosening from vibration or repeated cycling. This component is used by machinists, tool-and-die technicians, and assembly professionals in fixtures, jigs, and precision positioning applications.

The MSW10-4A-PT-G is suited for use in machining fixtures, workholding setups, and mechanical assemblies that require controlled spring force for indexing, detenting, or part retention. The compact M6 x 1 thread fits standard metric threaded holes, making it compatible with a wide range of fixture plates, tooling blocks, and machine frames. Its steel construction handles the demands of production shop environments where durability and consistent force repeatability are required.

Key Features

• M6 x 1.00 thread size with 0.787-inch thread length for standard metric fitment
• 1.57 lb initial end force and 4.50 lb final end force for defined spring resistance
• Maximum plunger diameter of 0.106 inches provides precise nose engagement
• 0.098-inch plunger projection delivers controlled, low-profile actuation travel
• Steel body and steel nose material for strength and wear resistance
• Locking element included to resist loosening under vibration or cyclic loading

Compatibility

Designed as an OEM-style replacement or direct-install component for metric-threaded fixtures, jigs, and mechanical assemblies requiring an M6 x 1 threaded spring plunger with a standard-length body.

Installation Notes
