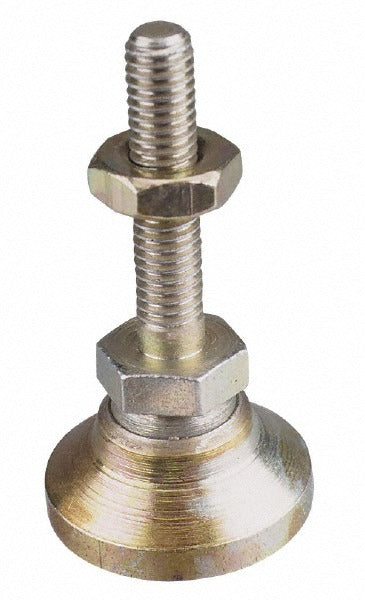

Gibraltar MS-WD00-G Studded Pivotal Leveling Mount 68 Lb

Product Description

The GIBRALTAR MS-WD00-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and fabricated assemblies. The mount features a steel stud for structural integrity and a Delrin pad that pivots to compensate for uneven or angled mounting surfaces. With a 68-pound load capacity and an M6 bolt thread size, this mount suits light-duty industrial and commercial leveling applications. The overall length is 38.8 inches, giving installers meaningful adjustment range. HVAC equipment installers, electricians setting panel enclosures, and general mechanical contractors are the typical end users.

This leveling mount is suited for use on indoor equipment bases, electrical enclosures, small machinery frames, and fabricated steel structures where precise leveling is required. The pivoting Delrin pad allows the foot to seat flush against surfaces that are not perfectly perpendicular to the stud axis, reducing point-load stress on the mounting surface. It is sold individually and is appropriate for both new installations and retrofit leveling upgrades on existing equipment.

Key Features

• Steel stud construction provides reliable load-bearing strength
• Pivoting Delrin pad self-adjusts to angled or uneven mounting surfaces
• 68-pound load capacity per mount for light-duty equipment support
• M6 bolt thread size for compatibility with standard metric hardware
• 38.8-inch overall length allows for a wide range of height adjustment
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as an OEM-style leveling mount for light-duty equipment, enclosures, and fabricated assemblies that accept an M6 threaded stud mounting foot.

Installation Notes

Installation is typically performed by mechanical contractors, equipment fabricators, or HVAC technicians during equipment placement or base fabrication. De-energize and fully support any equipment before adjusting or replacing leveling mounts. Standard metric hand tools are required for threading the stud into the equipment base. Verify that the combined load across all mounting points does not exceed the rated per-mount capacity before placing equipment in service.
