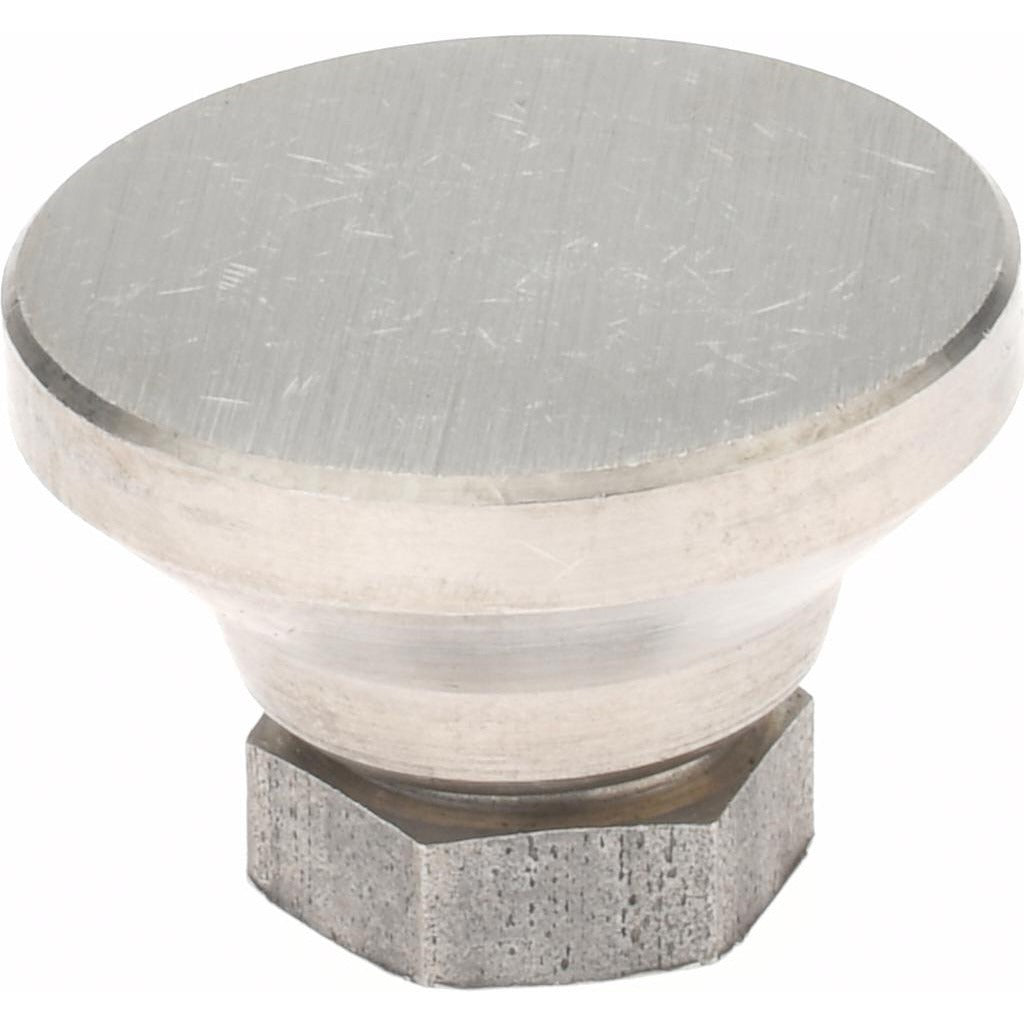

Gibraltar MS-TW1-G Tapped Pivotal Leveling Mount M10

Product Description

The GIBRALTAR MS-TW1-G is a tapped pivotal leveling mount designed for precision equipment leveling and vibration isolation in industrial and commercial settings. It features an M10 threaded stud, a stainless steel pad, and a steel stud construction rated for a load capacity of 1,701 kN. The pivoting pad adjusts to compensate for uneven surfaces, allowing stable, flush contact even on irregular floors. This mount is typically installed by millwrights, maintenance mechanics, and industrial equipment technicians who require repeatable, rigid support for machinery, frames, and structural assemblies.

This leveling mount is suited for use in manufacturing facilities, equipment rooms, and heavy industrial environments where floor-level adjustability is required. The M10 thread size fits standard metric-tapped bases and mounting plates. It is appropriate for use with machine bases, conveyor frames, enclosures, and similar equipment that requires fine vertical adjustment and load-bearing stability. Both the stainless steel pad and steel stud construction make it suitable for environments where corrosion resistance and structural integrity are priorities.

Key Features

• Tapped pivotal design compensates for uneven or sloped floor surfaces
• M10 thread size for compatibility with standard metric mounting applications
• Stainless steel pad resists corrosion and provides durable floor contact
• Steel stud construction offers high load-bearing strength
• Compact overall length of approximately 0.87 inches for low-profile installations
• 31.7 mm (approximately 1.25 inches) base diameter for stable footprint

Compatibility

Designed as a standard metric tapped pivotal leveling mount for equipment bases, machine frames, and industrial enclosures requiring M10 thread fitment.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. Ensure the equipment is fully de-energized and safely supported before installing or adjusting leveling mounts. Use an appropriately sized wrench matching the 15.8 mm hex size to tighten and level the mount. Verify that the load applied does not exceed the rated capacity of the mount, and check all mounts for even load distribution after installation.
