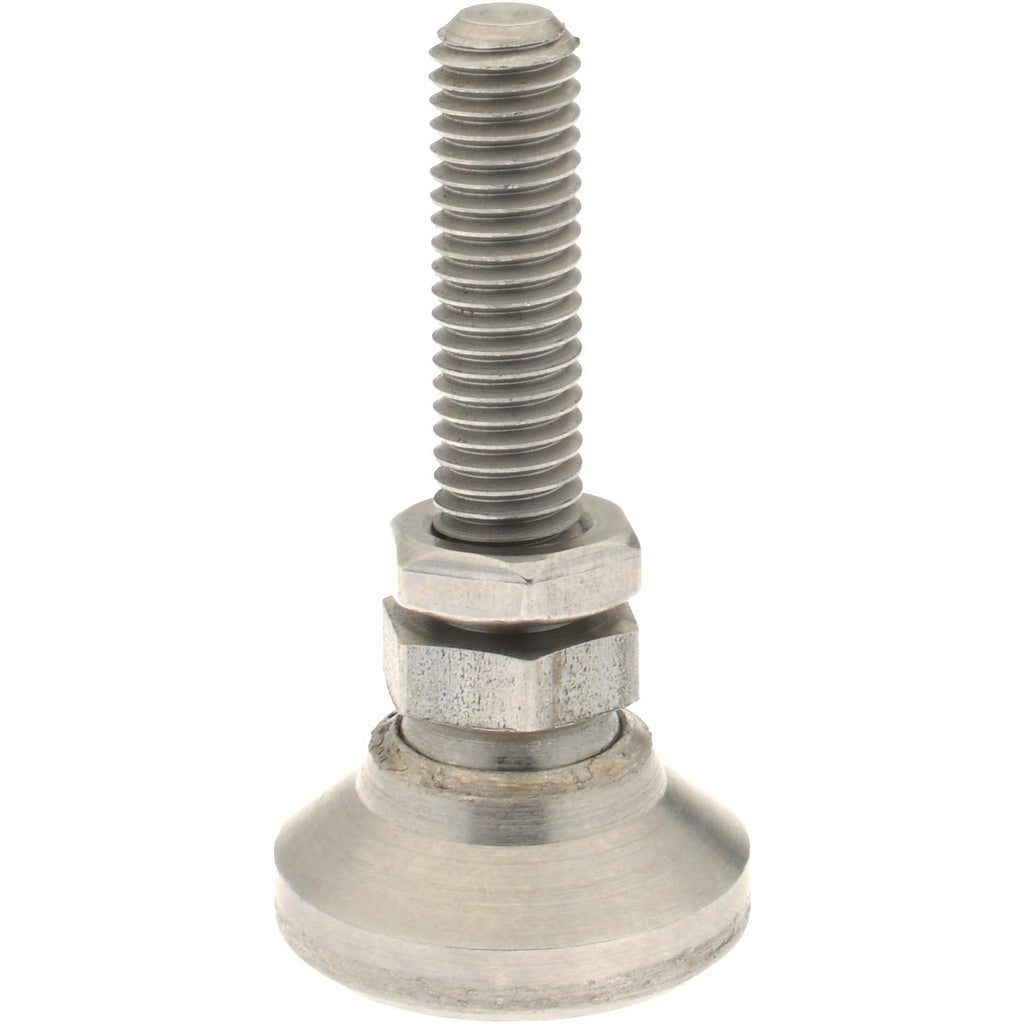

Gibraltar MS-SW0-G Studded Pivotal Leveling Mount M8

Product Description

The GIBRALTAR MS-SW0-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial components. The pivoting pad design allows the mount to compensate for uneven or angled surfaces, maintaining a flush, stable contact point under load. Built with a stainless steel pad and stainless steel stud, this mount resists corrosion in wash-down, outdoor, and high-humidity environments. It carries a load capacity of 453 kilograms and features an M8 bolt thread for secure fastening. The overall length is 49.6 inches, and the base diameter measures 25.5 millimeters. Technicians and millwrights in industrial, commercial, and mechanical installation settings are the primary installers.

This leveling mount is suited for use in industrial machinery installation, equipment leveling, and structural support applications where surface contact must remain flat regardless of floor irregularities. The M8 threaded stud allows integration into standard metric mounting configurations. Typical applications include leveling machine bases, conveyors, enclosures, and mechanical support frames in manufacturing and maintenance environments. It is sold individually and packaged as a single unit.

Key Features

• Pivotal pad design self-adjusts to angled or uneven mounting surfaces
• Stainless steel pad and stud construction for corrosion resistance
• 453 kilogram load capacity for demanding support applications
• M8 threaded stud for compatibility with standard metric fastening systems
• 25.5 millimeter base diameter provides a compact footprint
• 49.6-inch overall length suits a range of height-adjustment needs

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, equipment bases, and mechanical support frames requiring M8 metric thread fastening.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or mechanical installers using standard metric hand tools. Power down and de-energize any associated equipment before mounting or adjusting. Thread the stud into the mounting surface to the appropriate depth and secure with a jam nut where required to prevent backing out under vibration. Verify that the load rating is not exceeded for the intended application before placing the equipment in service.
